TJF1103, Industrial Ethernet 100BASE-T1 PHY Transceiver

TJF1103
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

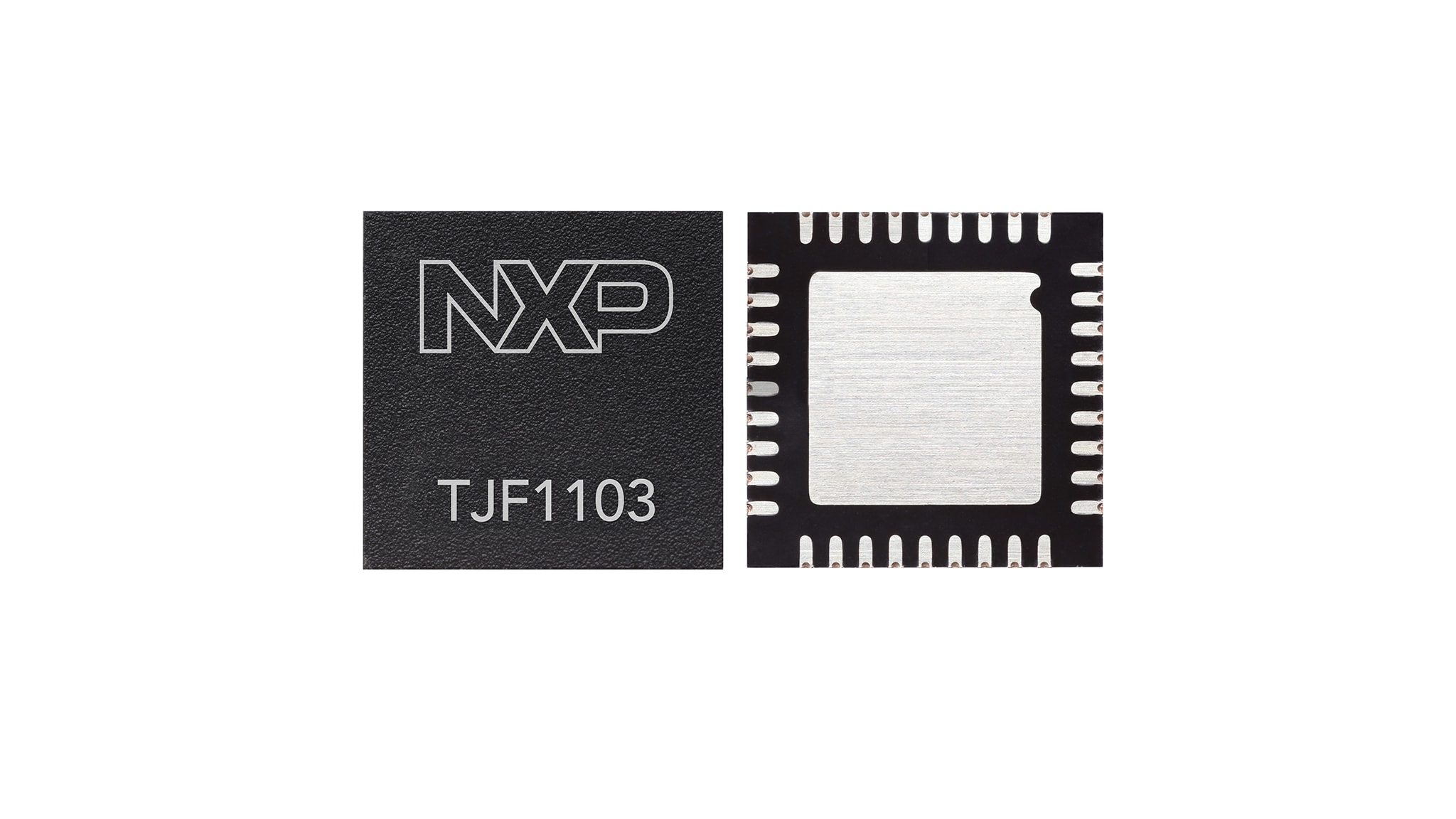

Click image to open expanded view

The TJF1103 is the third-generation product of NXP's successful family of 100BASE-T1 Ethernet physical layer (PHY) transceivers. It is ideally suited to support the rapid expansion of Ethernet in the industrial applications.

The TJF1103 complies with all state-of-the-art conformance test specifications and is designed to meet quality management (QM) requirements, providing enhanced monitoring and diagnostic features.

Block Diagram

TJF1103

TJF1103
Get diagram PDF

Features

  • Functional-safety QM-compliant
  • IEEE 802.3bw-compliant 100BASE-T1 PHY
  • One-Pair Ether-Net (OPEN) Alliance (OA) Technical Committee 1 (TC1) advanced PHY features
  • Single-supply capability
  • Heat-sink Very-Thin Quad Flat No-Lead, 36-pin (HVQFN36) (6 x 6 mm) with wettable flanks
  • Optimized for industrial use cases
  • Includes startup self-test
  • Support -40 °C to 125 °C temperature grade

Important Information

  • TJF1103 silicon, documentation and software are available for NDA customers only. For additional information, please contact support or your local sales representative.
