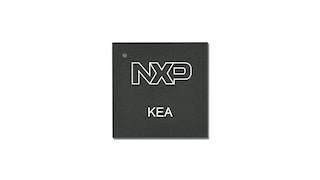

The Kinetis® EA series is a family of 32-bit Arm® Cortex®-M0+ microcontrollers designed for automotive and industrial applications that require long product lifecycles, robust operation, and high quality standards.
The Kinetis EA series integrates 8 KB to 128 KB of embedded Flash memory and delivers low-power performance for cost-sensitive applications. It features strong EMC and ESD robustness, high-temperature operation, and low radiated emissions.
Supported by a broad ecosystem of reference designs, development tools, and application notes, the Kinetis EA series helps accelerate system development and product deployment.
| Device | Flash | RAM | EEPROM | Freq | MSCAN | SCI | SPI | ADC | Flex-Timer | IIC | GPIO | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KEAZN8 | 8K | 1K | Emulated | 48MHz | 0 | 1 | 1 | 12ch 12bit | 6ch+2ch 16bit | 1 | Up to 22 | 16 TSSOP/24 QFN |
| KEAZN16 | 16K | 2K | 256B | 40MHz | 0 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 57 | 32/64 LQFP |
| KEAZN32 | 32K | 4K | 256B | 40MHz | 0 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 57 | 32/64 LQFP |
| KEAZN64 | 64K | 4K | 256B | 40MHz | 0 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 57 | 32/64 LQFP |
| KEAZ64 | 64K | 8K | Emulated | 48MHz | 1 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 71 | 64/80 LQFP |
| KEAZ128 | 128K | 16K | Emulated | 48MHz | 1 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 71 | 64/80 LQFP |
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
