TWR-RF-SNAP
-
Tower System, Peripheral Module, RF Wireless Mesh Networking.
- TWR–RF–SNAP module
- Quick Start Guide document
Design Files
1 design file
-
Printed Circuit Boards and Schematics
TWR-RF-SNAP Schematics

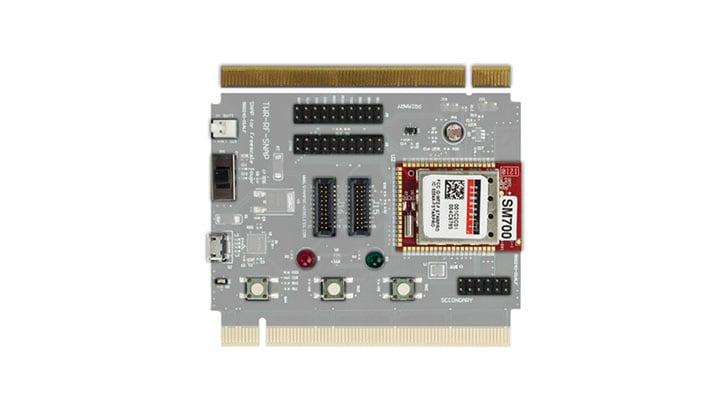

RF Wireless Mesh Networking Tower System Module
TWR-RF-SNAP Receive alerts
Are you looking to add mesh networking connectivity to your product design? Are you designing applications that require wireless control and monitoring? The TWR-RF-SNAP peripheral module is the ideal solution for your Tower® System designs.
This FCC-certified Tower System module comes with the SM700 802.15.4 RF Engine from Synapse Wireless, based on the NXP® MC13224 module, and SNAPpy control software to get you connected quickly.
Product Details
Features
Connectivity
- MicroUSB connector provides power and serial connectivity
- Access to additional GPIOs on SM700 via header bloc
- Configurable access to Tower® Elevator connector allows for interaction with other Tower modules (UART, SPI, and I2C)
Power Management
- Multiple powering options
Wireless
- Features the SM700 802.15.4 RF Engine from Synapse Wireless, based on the NXP® MC13224 module
Expansion Port
- On-board TWRPI connector for the addition of standard NXP TWRPI modules
User Components
- Push-button inputs and user controlled LEDs On-board low-power linear active thermistor and light sensor
Tools and OS Support
- Preloaded with SNAP Network Operating System
Buy Options
Documentation
Quick reference to our documentation types.
3 documents
-
Quick Reference Guide
Wireless Mesh Networking Module featuring SNAP®TechnologyFeatured
-
Supporting Information
Tower Mechanical DrawingFeatured
-
User Guide
TWR-RF-SNAP User's ManualFeatured
