EVBCRTOUCH: Touch-Sensing Platform Evaluation Board

Overview

Ready Play^® Solutions integrate functionality to different applications, allowing customers to add features while reducing development cost, simplifying design cycles and enabling scalability in applications and systems.

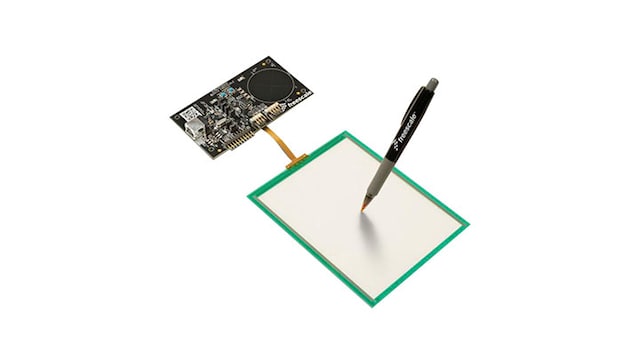

EVBCRTOUCH is a low-cost development board that allows quick connection between any standard 4 and 5 wire resistive screen. The board features four capacitive electrodes which enables a quick ramp up. The board also provides a USB-to-Serial bridge to allow a connection to any host processor or PC via USB.

MoreLess

Target Applications

Entry Infotainment / Connected Radio

Specifications

Technical and Functional Specifications

	Standard X,Y resistive touchscreen detection with optional calibration Pressure detection on 4 and 5 wires 16 samples FIFO with watermark Wake by single touch, double touch, gestures, or capacitive electrodes activity Event and touch indicators for main host processor
Gesture detection	Slide Two touch pinch and expand Two touches rotate
capacitive electrodes independent from touchscreen	Keypad Rotary Slider
Connectivity	I^²C and UART communication Two selectable I^²C target addresses UART baud rate auto detection mechanism
Power Management	Low power consumption
Support	Linux^® and Android^® integration example code available

Buy

EVBCRTOUCH ^Active
DevCRTouch Play Sol
- EVBCRTOUCH Board
  - 4-wire connector
  - 5-wire connector
  - 4 capacitive electrodes
- Resistive screen
- USB cable
- Quick Start Guide

EVBCRTOUCH
1 @ US
$85.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.
