Getting Started with the UJA1023 Evaluation Board
Contents of this document
-
Out of the Box
-
Get to Know the Hardware
Sign in to save your progress. Don't have an account? Create one.
Purchase your UJA1023-EVB
1. Out of the Box
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.
This page will guide the user through the process of setting up and using the RD33774PC3EVB board.
Working with the UJA1023-EVB (UJA1023 remote-controlled LIN I/O responder) requires a LIN commander board as additional hardware.
1.1 Kit contents
- UJA1023-EVB in an antistatic bag
- Quick Start Guide
1.2 Additional Hardware
The following hardware is necessary, but not included in this kit:
- 12 V power supply
- LIN bus cable
- LIN commander
The following is a selection of LIN commander hardware options:
- LIN interface tools
- S32K116EVB: S32K116-Q048 evaluation board for automotive general purpose
- S32K144EVB: S32K144-Q100 evaluation board for automotive general purpose
- S32K312MINI-EVB: S32K312MINI-EVB evaluation board for automotive general purpose
- S32K3X4EVB-T172: S32K3X4EVB-T172 evaluation board for automotive general purpose
1.3 Assumptions
Basic knowledge of the LIN Diagnostic and Configuration Specification from LIN Specification Package Revision 2.0, September 2003, is expected.
2. Get to Know the Hardware

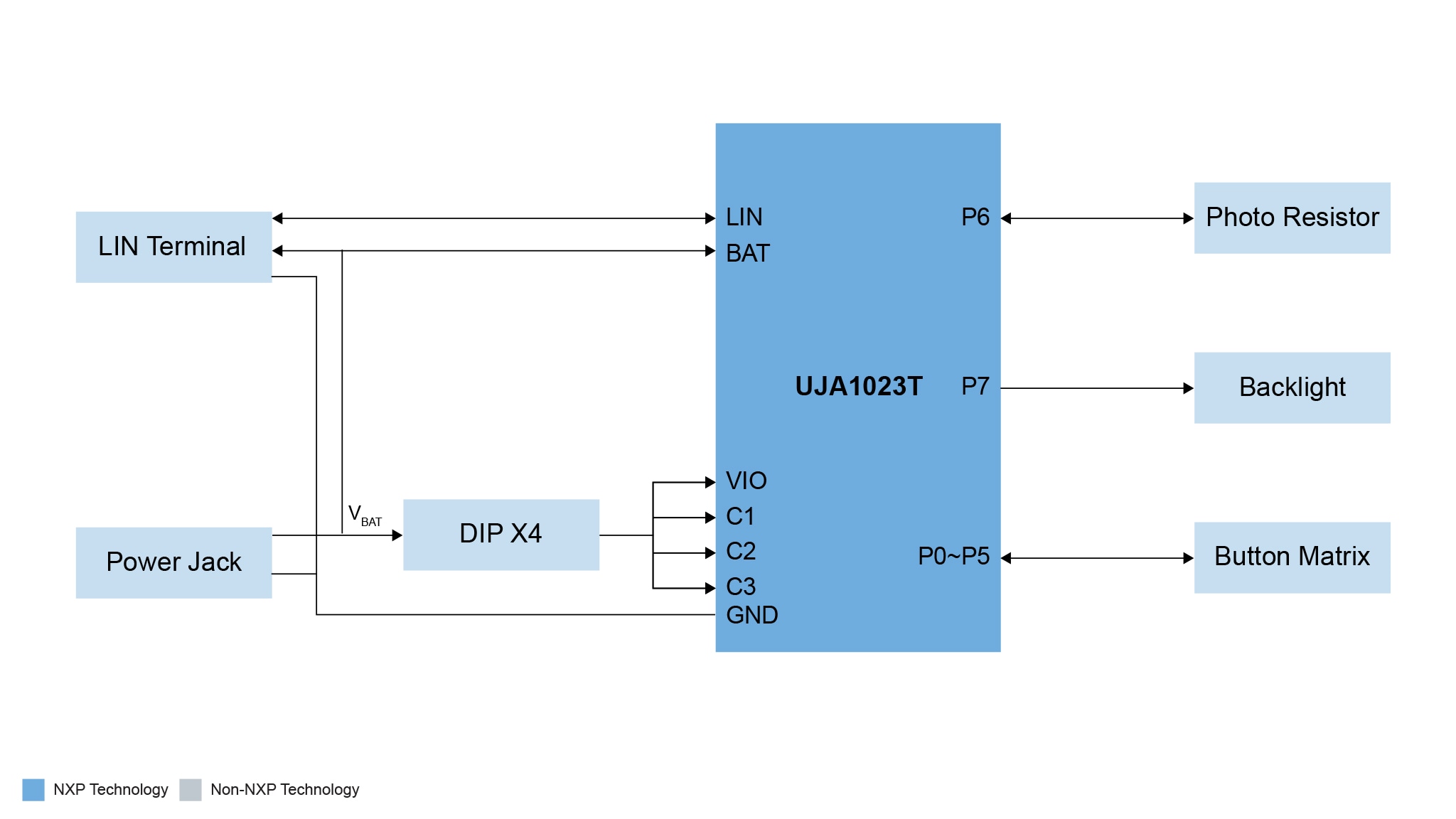

2.1 Board Features
The UJA1023-EVB incorporates a user switch panel application example, which consists of:
- UJA1023 remote controlled LIN I/O responder IC
- 2x4 switch matrix (eight buttons)
- LED background light
- Photo resistor sensor input
- DIP switch for NAD configuration
- Supply and bus connector
2.3 EVB Featured Components
Figure 2 provides an overview of the UJA1023-EVB and shows the location of the components on the board. Table 1 provides additional details about these components.
| Name | Description |
|---|---|
| External power supply | Power supply connector for the UJA1023-EVB |
| LIN bus | LIN bus connector including alternative power supply terminals |
| NAD configuration | DIP switch for LIN node address (NAD) configuration and VIO connection to VBAT |
| UJA1023 | Remote controlled LIN I/O responder IC: UJA1023 |
| UJA1023 pin signal access | Connector to provide access to UJA1023 pins |
| 2x4 switch matrix | Switch panel application circuit with eight buttons |
| LED background light | Background light application with 4x LEDs |
| Photo resistor sensor input | ADC application circuit with photo resistor sensor input signal |
| Customer application area | Area for application prototyping |
2.4 Schematic, Board Layout and Bill of Materials
The schematic, board layout and bill of materials for the UJA1023 evaluation board are available at UJA1023-EVB.
