Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

56F800x: MC56F8006 and MCF56F8002 Digital Signal Controllers

Features

Connectivity

Complete pinout available including a 40-pin header compatible with all 56F80xx boards

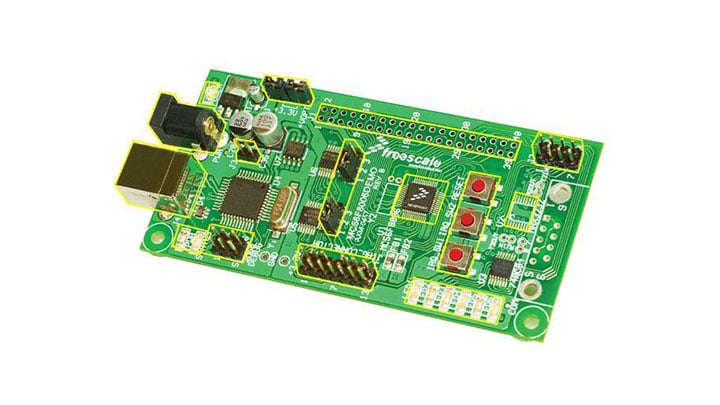

MC56F8006 demo board with USB connectivity
Serial Communications port ready for RS-232

Power Management

Supply voltage options from USB connector, direct power supply in J1 and using standard power jack

Debug

JTAG control and debug of MC56F8006
BDM control and debug of MC9S08JM60

Components

6 LEDs, connected to PWM channels

Buy Options

Click to expand

MC56F8006DEMO-T
Active

MC56F8006 DEMO BOARD AND ONCE TAP.

$171.35 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MC56F8006DEMO
Active

MC56F8006 DEMO BOARD.

Kit Contains

MC56F8006DEMO-T (Recommended)
- DVD Getting Started with MC56F8006/2
  - Free CodeWarrior Development Studio for 56F800/E DSC, Special Edition (32 KB code size limit)
  - Device and board Resources
  - Seven different MC56F8006 demo labs including LED flashing demonstration, USB Serial, Freemaster and FIR labs.
- USB TAP
- USB cable
- MC56F8006DEMO-T Quick Start Guide
- NXP warranty card
MC56F8006DEMO
- DVD Getting Started with MC56F8006/2
  - Free CodeWarrior Development Studio for 56F800/E DSC, Special Edition (32 KB code size limit)
  - Device and Board Resources
  - Seven different MC56F8006 demo labs including LED flashing demonstration, USB Serial, Freemaster and FIR labs.
- USB cable
- MC56F8006DEMO Quick Start Guide
- NXP warranty card

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
