Digital Signal Controller

DSP56853
  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

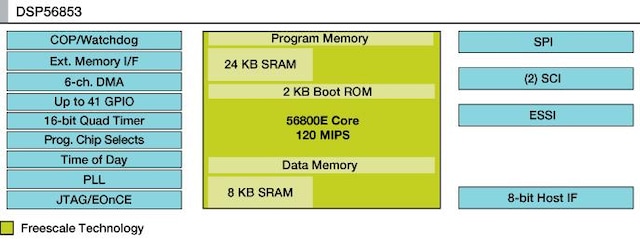

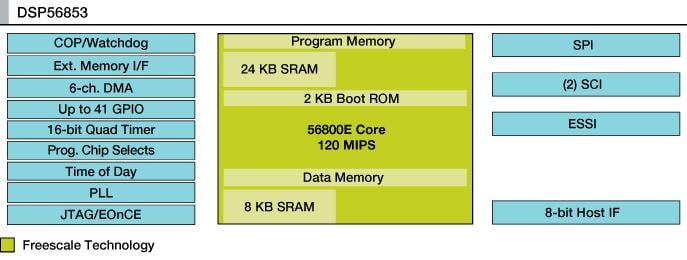

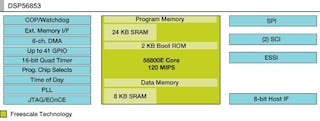

The DSP56853 is a member of the DSP56800E core-based family of digital signal controllers. This device combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip to create an extremely cost-effective solution. The DSP56853 includes peripherals that are especially useful for teledatacom devices, Internet appliances, portable devices, TAD, voice recognition, hands-free devices and general purpose applications.

The DSP56800E core is based on a Harvard-style architecture consisting of three execution units operating in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP and MCU applications. The instruction set is also highly efficient for C compilers to enable rapid development of optimized control applications.

Documentation

Quick reference to our documentation types.

Filters

1-5 of 10 documents

Show All

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Models

    DSP56853 BSDL File

    ZIPRev n/a10.2 KBDSP56853BSDL
    Download

Hardware

Filters

1 hardware offering

Software

Filters

1-5 of 27 software files

  • Code Snippets

    RSA Example Application for 5685x

    ZIPRev 0Sep 24, 2005 00:00:009.4 KB5685XCERSA
    Download
  • Code Snippets

    DES Test Application for 5685x

    ZIPRev 0Sep 28, 2005 00:00:009.3 KB5685XCEDEST
    Download
  • Code Snippets

    Noise Suppression (NS) Example Application for 5685x

    ZIPRev 0Sep 25, 2005 00:00:009.3 KB5685XCENS
    Download
  • Code Snippets

    V.22bis Calling Modem Example Application for 5685x

    ZIPRev 0Sep 23, 2005 00:00:009.3 KB5685XCEV22C
    Download
  • Code Snippets

    V.22bis Answering Modem Example Application for 5685x

    ZIPRev 0Sep 23, 2005 00:00:009.3 KB5685XCEV22A
    Download
Show All
