Digital Signal Controller

DSP56857
  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

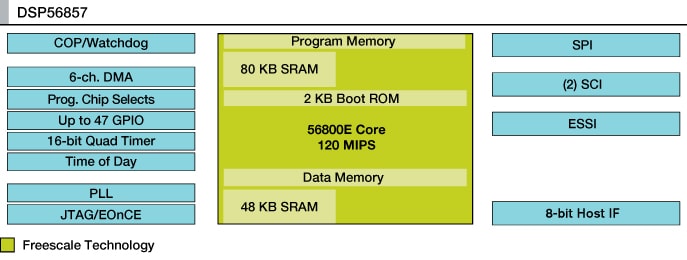

The DSP56857, a member of the DSP56800E core-based family of digital signal controllers, combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip. An extremely cost-effective solution, the DSP56857 is well-suited for many applications because of its low cost, configuration flexibility and compact program code. The DSP56857 includes many peripherals especially useful for teledatacom devices, Internet appliances, portable devices, TAD, voice recognition, hands-free devices and general purpose applications.

The DSP56800E core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP and MCU applications. The instruction set is also highly efficient for C compilers, enabling rapid development of optimized control applications.

Documentation

Quick reference to our documentation types.

Filters

1-5 of 11 documents

Show All

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Models

    DSP56857 BSDL File

    ZIPRev 0Jan 1, 2002 00:00:009.7 KBDSP56857_BSDL
    Download

Hardware

Filters

1 hardware offering

Software

Filters

1-5 of 25 software files

  • Code Snippets

    RSA Example Application for 5685x

    ZIPRev 0Sep 24, 2005 00:00:009.4 KB5685XCERSA
    Download
  • Code Snippets

    DES Test Application for 5685x

    ZIPRev 0Sep 28, 2005 00:00:009.3 KB5685XCEDEST
    Download
  • Code Snippets

    Noise Suppression (NS) Example Application for 5685x

    ZIPRev 0Sep 25, 2005 00:00:009.3 KB5685XCENS
    Download
  • Code Snippets

    V.22bis Calling Modem Example Application for 5685x

    ZIPRev 0Sep 23, 2005 00:00:009.3 KB5685XCEV22C
    Download
  • Code Snippets

    V.22bis Answering Modem Example Application for 5685x

    ZIPRev 0Sep 23, 2005 00:00:009.3 KB5685XCEV22A
    Download
Show All
