FRDM-LS1012A | LS1012A | Dev Platform

FRDM-LS1012A board ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

The FRDM-LS1012A is no longer in production. The alternate ordering option is the FRWY-LS1012A. For additional information, please contact NXP^® Sales and Marketing.

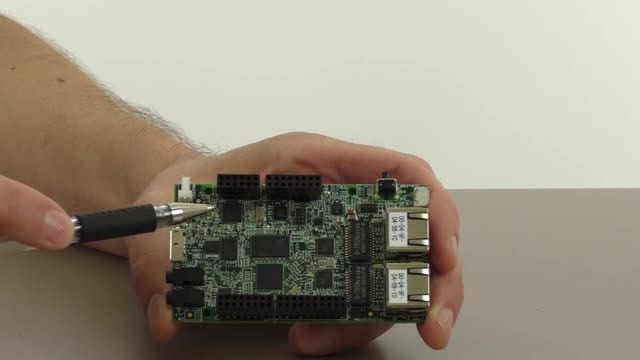

The FRDM-LS1012A Board is an ultra-low-cost development platform for LS1012A Series Network Processors built on Arm^® Cortex^®-A53 processor.

Features include easy access to processor I/O, battery-ready, low-power operation, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control.
The FRDM-LS1012A is supported by a range of NXP^® and third-party development software.
A rich Linux development environment is available for the FRDM-LS1012A, initially via off-train releases, which will later be rolled into the cross-platform release. Please visit QorIQ SDK to download the latest version.

Let's take your FRDM-LS1012A for a test drive! You can follow the detailed instructions of how to get started here.

MoreLess

FRDM-LS1012A Board

Get Started with the QorIQ<sup>®</sup> FRDM-LS1012A dev board

Get Started with the QorIQ^® FRDM-LS1012A dev board

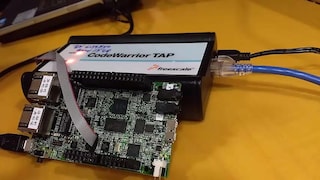

Booting FRDM-LS1012A Board

Specifications

Technical and Functional Specifications

Microcontroller	LS1012ASE7HKA MCU 800 MHz CPU 1GT/s DDR3L 212 FC-LGA
Power Management	VR5100 Power Management IC
Connectivity	Dual 1000Base-T Ethernet interfaces with RJ-45 connectors USB2.0/3.0 OTG Micro A/B connector Arduino^® Shield expansion connectors with I²C, SPI, UART, and GPIO connectivity USB2.0 Micro A/B connector for debugging and power supply Additional debug via Cortex 10-pin JTAG connector and CMSIS DAP through K20microcontroller
Memory	512 MB QuadSPI NOR Flash 4 GB DDR3L DRAM
Audio	SGTL5000 Audio ADC / DAC with 3.5 mm microphone and headphone jack

Documents and Software

Documents

Reference Manual ( 1 )

QorIQ FRDM-LS1012A Reference Manual^{(REV
3
)}

Explains the FRDM-LS1012A interfaces and configuration.
- PDF
- 961.6 kB
- 15 Dec 2016
- FRDM-LS1012ARM
- [ English ]

User Guide ( 1 )

Get Started with the FRDM-LS1012A
- NGS-FRDM-LS1012A
- NGS-FRDM-LS1012A
- [ English ]

Errata ( 1 )

FRDM-LS1012A Board Errata^{(REV
2
)}

This document lists and describes all known errata for the FRDM-LS1012A.
- PDF
- 1.0 MB
- 22 Feb 2017
- FRDM-LS1012AERRATA
- [ English ]

Software

Embedded Software ( 1 )

BSP, Drivers and Middleware ( 1 )

Layerscape 1012A Broadband Home Router Application Solutions Kit

NXP offers a vertically integrated and comprehensive Linux-based OpenWRT Broadband Home Router (BHR) application solutions kit (ASK) to OEM/ODMs inclined to build multi-segment network products based on the LS1012A communications processors.

Buy Options

FRDM-LS1012A board ARCHIVED

Overview

Specifications

Technical and Functional Specifications

Documents and Software

Get Started with the FRDM-LS1012A

Documents ( 3 )

Software ( 1 )

Documents

Reference Manual ( 1 )

QorIQ FRDM-LS1012A Reference Manual^{(REV
3
)}

User Guide ( 1 )

Get Started with the FRDM-LS1012A

Errata ( 1 )

FRDM-LS1012A Board Errata^{(REV
2
)}

Software

Embedded Software ( 1 )

BSP, Drivers and Middleware ( 1 )

Layerscape 1012A Broadband Home Router Application Solutions Kit
