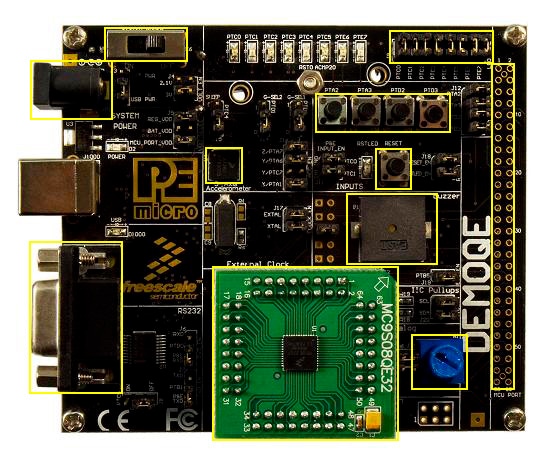

DEMOQE32: QE32 Demonstration Board ARCHIVED

Overview

Specifications

Technical and Functional Specifications

Base Board Features:

  • 3-axis Accelerometer w/Enable
  • 8 User LED’s w/ Enable
  • 4 User Push Buttons w/ Enable
  • 1 Piezzo Buzzer w/ Enable
  • 10K Ohm POT w/ Enable
  • RESET Push Button and LED indicator w/ Enable
  • RS-232 Serial Port w/ DB9-F Connector
  • ON/OFF Power Switch w/ LED indicator
  • Power Options:
    • USB Cable: 5VDC, 500mA max
    • DC Power Jack: 2.5/5.5mm barrel connector, 5VDC to 12VDC Center Positive
    • Two AAA Battery Cells (regulated VDD Output at 3.0V or 2.1V)
  • P&E’s Embedded Multilink circuitry populated on the bottom
    • SCI signals connected to P&E’s Embedded Multilink through jumpers
    • Two channels logic analyzer allows observation of MCU signals

DC9S08QE32 Daughter Card Features

  • Four bottom-mounted asymmetrically positioned 8x2 female connectors to mate with the DEMOQE Base Board
  • A top-mounted MC9S08QE32 QFN48 chip

Supported Devices

Processors and Microcontrollers

8-bit S08 MCUs
  • S08QE : 8-bit Flexis QE MCUs

MoreLess

MC9S08QE Family Demonstration Boards

Features
DEMOQE32
Daughter Card
DC9S08QE8
DC9S08QE32
DC9S08QE128
DC51QE128
Supported Devices
MC9S08QE8CLC
MC9S08QE32CFT
MC9S08QE128CLH
MCF51QE128CLH
3-axis Accelerometer
YES
YES
YES
LEDS w/ enable
8
8
8
User Push Buttons
4
4
4
Connector
RS-232 Serial Port
RS-232 Serial Port
RS-232 Serial Port
P&E micro Embedded
Multilink USB Connector
YES
YES
YES
ON/OFF Power Switch
YES
YES
YES

Documents and Software

Documents   ( 6 )

Software   ( 1 )

Documents

Quick Reference Guide  ( 2 )

  • DEMO9S08QE32 - Quick Reference Guide (REV 0 )

    DEMO9S08QE32 is a cost-effective board targeting quick microcontroller evaluation. The board includes a DEMOQE baseboard and a DC9S08QE32 daughter card. In combination, they can be used to highlight the key features on the MC9S08QE32 device. The board also includes a power terminal to measure the ultra-low power consumption of the MC9S08QE32 device.

    • 23 Jul 2008
    • pdf
    • 309.1 kB
    • DEMO9S08QE32QSG
    • [ English ]

  • DEMO9S08QE32 LAB Tutorials (REV 0 )

    • 23 Jul 2008
    • pdf
    • 354.2 kB
    • DEMO9S08QE32LABS
    • [ English ]
