• MMA7660FC, 3-Axis Orientation/Motion Detection Sensor - Data Sheet ^{(REV 8 )}

  The MMA7660FC is a ±1.5 g 3-Axis Accelerometer with Digital Output (I2C). It is a very low power, low profile capacitive MEMS sensor featuring a low pass filter, compensation for 0g offset and gain errors, and conversion to 6-bit digital values at a user configurable samples per second. The device can be used for sensor data changes, product orientation, and gesture detection through an interrupt pin (INT).

  •  PDF
  • 607.8 kB
  • 21 Mar 2012
  • MMA7660FC
  • [ English ]

• AN3840, Setting up the MMA7660FC to do Orientation Detection ^{(REV 2 )}

  The MMA7660FC has the built in capability to do orientation detection. This feature gives the customer the capability to do applications such as portrait/landscape in mobile phones/PMP/PDAs. The tilt orientation of the device is in 3 dimensions and is identified in its last known static position. This allows a product to set its display orientation appropriately to either portrait or landscape mode or to turn off the display when the device is placed upside down. The sensor provides 6 different positions: l

  •  PDF
  • 357.8 kB
  • 11 Sep 2009
  • AN3840
  • [ English ]

• AN3839, MMA7660FC Board Mounting Guidelines ^{(REV 2 )}

  This application note discusses board mounting guidelines and considerations for the MMA7660FC sensor. The first topic that will be discussed is the minimum recommended footprint for surface mount applications. This is a critical portion of design and if not done properly can affect soldering connection interface between the board and the package. Next, will be soldering and mounting guidelines and considerations for the DFN accelerometer sensor to a PCB. These suggested methods will minimize the stress on

  •  PDF
  • 465.0 kB
  • 11 Sep 2009
  • AN3839
  • [ English ]

• AN3838, How to use the MMA7660FC with a Microcontroller to do Software Enhancements to Change Orientation Detection Trip Points ^{(REV 2 )}

  The MMA7660FC has the built-in capability to do orientation detection. This feature gives the customer the ability to do applications such as portrait/landscape in mobile phones/PMP/PDAs. The MMA7660FC provides 6 different positions: left, right, up, down, back, and front. The tilt orientation of the device is in 3 dimensions and is identified in its last know static position. The trip points for up/down/left/right occur at approximately 45 degrees from horizontal. The back/front interrupts occur at approxi

  •  PDF
  • 371.0 kB
  • 11 Sep 2009
  • AN3838
  • [ English ]

• AN3837, Setting up the MMA7660FC for Orientation, Shake, Auto-Wake/Sleep and Tap Detection ^{(REV 2 )}

  The MMA7660FC is a ±1.5 g 3-Axis Accelerometer with Digital Output (I2C). It is a very low power, low profile capacitive MEMS sensor featuring a low pass filter, compensation for 0g offset and gain errors, and conversion to 6-bit digital values at a user configurable sample rate. The device can be used for sensor data changes, product orientation, shake detection, tap detection, and gesture detection through an interrupt pin (INT). This application note will describe how to set up the MMA7660FC registe

  •  PDF
  • 621.6 kB
  • 11 Sep 2009
  • AN3837
  • [ English ]

• AN3841, Performing Offset Calibration using the MMA7660FC ^{(REV 2 )}

  Offset calibration is very important for applications such as tilt for gaming and hand gesturing on mobile phones/PMP/PDA devices. There are a number of proponents when it comes to offset errors such as trim errors, mechanical stresses due to package and mounting, shifts due to temperature and aging. This application note will describe how to do offset calibration for the MMA7660FC with a Microcontroller.

  •  PDF
  • 182.0 kB
  • 11 Sep 2009
  • AN3841
  • [ English ]

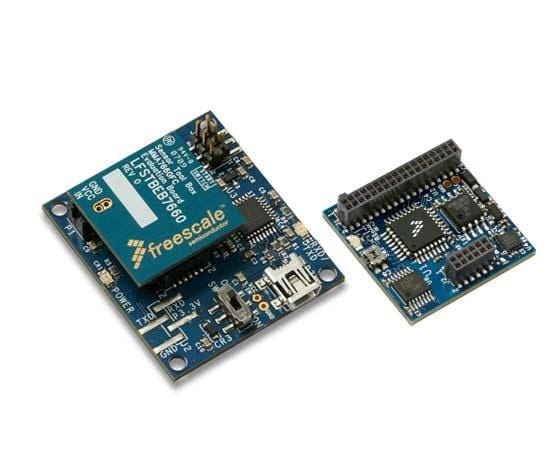

• Sensor Toolbox LFSTBEB7660 Accelerometer Development Board Quick Start Guide ^{(REV 0 )}

  Sensor Toolbox LFSTBEB7660 Accelerometer Development Board Quick Start Guide

  •  PDF
  • 630.8 kB
  • 03 Jun 2009
  • LFSBEB7660ACCQSG
  • [ English ]

• BRSENSORS, Xtrinsic Sensing Solutions Intelligent contextual sensing - Brochure ^{(REV 11 )}

  BRSENSORS: Xtrinsic sensors go far beyond a sensor translating a signal it’s enabling greater levels of sensing context and intelligence. By increasing levels of modular integration with multiple sensor inputs, logic and other building blocks, NXP brings greater value and decision making to the overall sensing solution. We’ve put our expertise at your fingertips so it is easy to tailor our sensing capabilities for your needs.

  •  PDF
  • 2.5 MB
  • 02 Dec 2014
  • BRSENSORS
  • [ English , Chinese ]

  BRSENSORS：Xtrinsic传感技术实现智能情景传感 - 手册 ^{(REV 10 )}

  • PDF
  • 2.5 MB
  • BRSENSORS

• Sensor Toolbox - Fact Sheet ^{(REV 10 )}

  NXP’s Sensor Toolbox offers a customizable selection of sensor development tools, accessories and software from NXP^®.s portfolio of acceleration, magnetic, pressure and touch sensors. Sensors enrich designs with a broad range of capabilities in detecting real-world conditions. Target Applications: Altimeters, Barometry, Blood pressure monitors.

  •  PDF
  • 638.8 kB
  • 27 Aug 2020
  • SENSORTOOLBOXFS
  • [ English , Chinese ]

  传感器工具箱 - 简介 (pdf) ^{(REV 5 )}

  • PDF
  • 638.8 kB
  • SENSORTOOLBOXFS

• MMA7660FC Three-axis low g digital acceleration sensor - Fact Sheet ^{(REV 1 )}

  Our MMA7660FC three-axis low g I2C digital capacitive acceleration sensor operates with extremely low power at 47 uA. The device provides conversion to digital values at a user-configurable output data rate, offering proportional savings in supply current and power. The MMA7660FC accelerometer can be used for sensor data changes, product orientation and gesture detection through an interrupt pin.

  •  PDF
  • 389.5 kB
  • 28 Oct 2009
  • MMA7660FCFS
  • [ English , Chinese ]

  MMA7660FC 3轴低重力数字加速度传感器 - 简介 ^{(REV 1 )}

  • PDF
  • 389.5 kB
  • MMA7660FCFS

• MMA7660FC Accelerometer for Mobile Handsets ^{(REV 0 )}

  Four Good Reasons to Use MMA7660FC Accelerometers. As more applications are requiring motion detection, the MMA7660FC features four key requirements such as digital output, small package, low power consumption and embedded intelligence.

  •  PDF
  • 364.0 kB
  • 27 Oct 2009
  • MMA7660FCFSWP
  • [ English , Chinese ]

  面向移动设备的MMA7660FC加速度传感器 ^{(REV 0 )}

  • PDF
  • 364.0 kB
  • MMA7660FCFSWP
