SPI ±20/20g, ±50/50g, ±100/100g, Medium-g, Digital or Analog Accelerometer

  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Product Details

Select a section:

Block Diagram

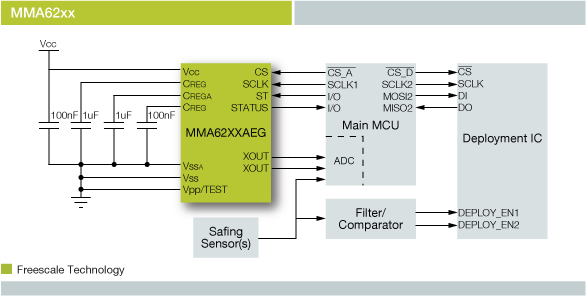

Freescale MMA62XX Acceleration Sensor Block Diagram

NXP<sup>&#174;</sup> MMA62XX Acceleration Sensor Block Diagram


Key Features

  • Available in ±20/20g, ±50/50g, or ±100/100g versions. Additional g-ranges between 20 and 100g may be available upon request
  • Full-scale range is independently specified for each axis
  • Selection of low-pass filters
  • First order IIR high-pass filter option
  • Ratiometric analog voltage output
  • Capture/hold input for system-wide synchronization support
  • 3.3 or 5-volt single supply operation
  • On-chip temperature sensor and voltage regulator
  • Internal self-test
  • Minimal external component requirements
  • Pb-free 20-pin SOIC package
  • Automotive AE -Q100 qualified

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MMA62xx is included in the 15-year program.

Part numbers include: MMA621010AKEG, MMA6222AKEG, MMA6222KEG, MMA6255AKEG.
