Evaluation Kit - MC35XS3400, Quad High Side Switch

KIT35XS3400EVBE Active

Roll over image to zoom in

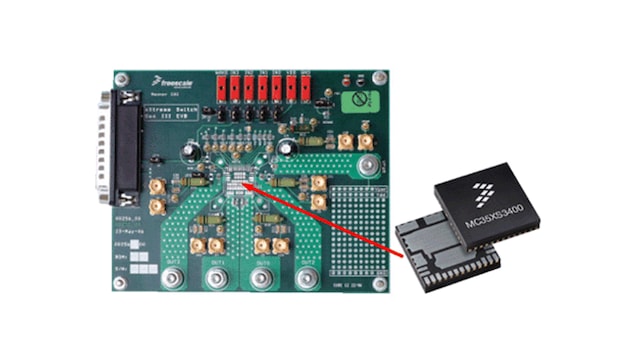

The KIT35XS3400EVBE evaluation kit supports the MC35XS3400 quad high-side switch for low-voltage automotive lighting applications.

  • Improves efficiency
  • Reduces wire harness size
  • Offers increased protection for longer bulb life
  • Satisfies electromagnetic compatibility (EMC) requirements

Product Details

Supported Devices

Products

mWallet 2GO

  • MC12XS3: 12 V Automotive Exterior Lighting Multi eXtreme Switch

Features

Connectivity

  • 8 MHz 16-bit 3.3 V and 5 V SPI control and status reporting with daisy chain capability

Power Management

  • Operating voltage range of 6.0 V to 20 V with sleep current < 5.0 µA, extended mode from 4.0 V to 28 V

User Components

  • Four protected high-side switches

General Specifications

  • PWM module using external clock or calibratable internal oscillator with programmable outputs delay management
  • Output OFF or ON open-load detection compliant to bulbs or LEDs and short-to-battery detection. Analog current feedback with selectable ratio and board temperature feedback
