Evaluation Kit - 33811, Solenoid Monitor

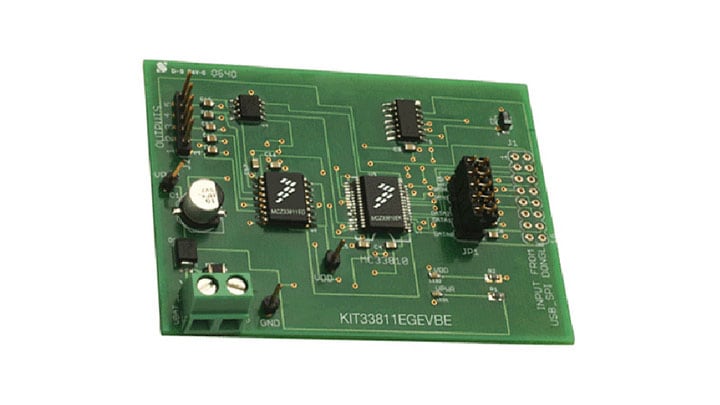

KIT33811EGEVBE: Evaluation Kit - 33811, Solenoid Monitor

Name: Evaluation Kit - 33811, Solenoid Monitor
Price: 83.00 USD

Overview

This EVALUATION KIT features the MC33811 Solenoid Monitor Integrated Circuit (IC). The MC33811 is a 5 channel Solenoid Monitor IC that is used to verify proper electrical and mechanical solenoid operation. The IC contains five solenoid driver voltage monitoring stages and a serial peripheral interface (SPI) for fault communication and setup. The IC has the ability to determine the correct movement of solenoid armatures by analyzing variations in the voltage profile, across the solenoid driver MOSFET, which represents the actual solenoid current profile.

Additionally, the kit features the MC33810, an eight channel output driver IC. The 4 low side drivers are suitable for driving fuel injectors, solenoids, lamps, and relays. The four gate pre-drivers can function either as ignition IGBT gate pre-drivers or as general purpose MOSFET gate pre-drivers.

This evaluation kit may be used with the KITUSBSPIDGLEVME

MoreLess

Specifications

Supported Devices

Products

Employee Testimonials

MC33811 : Solenoid Monitor Integrated Circuit

MoreLess

Technical and Functional Specifications

Connectivity	Interfaces to 3.3 and 5 volt microprocessors via SPI protocol
Power Management	Typical operating voltage range, 10.5 < VPWR < 15.5 volts Internal Voltage Regulator
User Components	Internal oscillator Reset pin to initialize all 5 fault outputs Unique solenoid current profile detection circuitry

Buy

KIT33811EGEVBE ^Active
Evaluation Kit - MC33811, Solenoid Monitor Integrated Circuit (IC)
- KIT33811EGEVBE Hardware
- Cable, Flat ribbon
- Quick Reference Guide

KIT33811EGEVBE
1 @ US
$83.00

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Get Started

Get Started with the KIT33811EGEVBE

User Guide

Everything you need to get started with the KIT33811EGEVBE Evaluation Module

KT33811EGEVBE, Evaluation Board - User Guide
- PDF
- Rev 2.0
- May 1, 2009
- 936.9 KB
- KT33811UG
- English
KTSPIGENSIUG, Installation Notes for SPIGen
- PDF
- Rev 4.0
- Oct 9, 2009
- 252.7 KB
- KTSPIGENSIUG
- English

Documents

Data Sheet ( 1 )

MC33811, Solenoid Monitor Integrated Circuit

The 33811 is a 5 channel Solenoid Monitor IC that is used to verify proper electrical and mechanical solenoid operation.
- PDF
- Rev 3
- Aug 8, 2008
- 989.9 KB
- MC33811
- English

User Guide ( 4 )

KTSPIGENSIUG, Installation Notes for SPIGen

Evaluation Board Documentation
- PDF
- Rev 4.0
- Oct 9, 2009
- 252.7 KB
- KTSPIGENSIUG
- English
KT33811EGEVBE, Evaluation Board - User Guide

The KIT33811EGEVBE Evaluation Board is a simple circuit for exercising the 33811 IC.
- PDF
- Rev 2.0
- May 1, 2009
- 936.9 KB
- KT33811UG
- English
USB Additions to SPIGen

Version 5.0.X of the SPIGen program has several new features that were added to support the new USB to SPI interface and the latest NXP evaluation board products that incorporate the USB to SPI feature.
- PDF
- Rev 1.0
- Oct 15, 2007
- 192.9 KB
- KTUSBADSPIUG
- English
KTSPIGENHELPUG, SPIGen Help Instructions

Evaluation Board Documentation
- PDF
- Rev 3.0
- Oct 9, 2009
- 347.1 KB
- KTSPIGENHELPUG
- English

Design Resources

Design Tools & Files ( 1 )

Printed Circuit Boards and Schematics ( 1 )

KIT33811EGGRBR: Gerber files for the KIT33811EGEVME Evaluation boards

Downloadable Gerber files used to build the EVB PCB
- ZIP
- Rev 1.0
- Apr 10, 2008
- 77.9 KB
- KIT33811EGGRBR
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue

Software

Development Software ( 1 )

Components and Modules ( 1 )

KIT33811 SPIGEN Configuration File
- SPI
- Rev 1
- Jun 20, 2007
- 2.6 KB
- KIT33811SW
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
