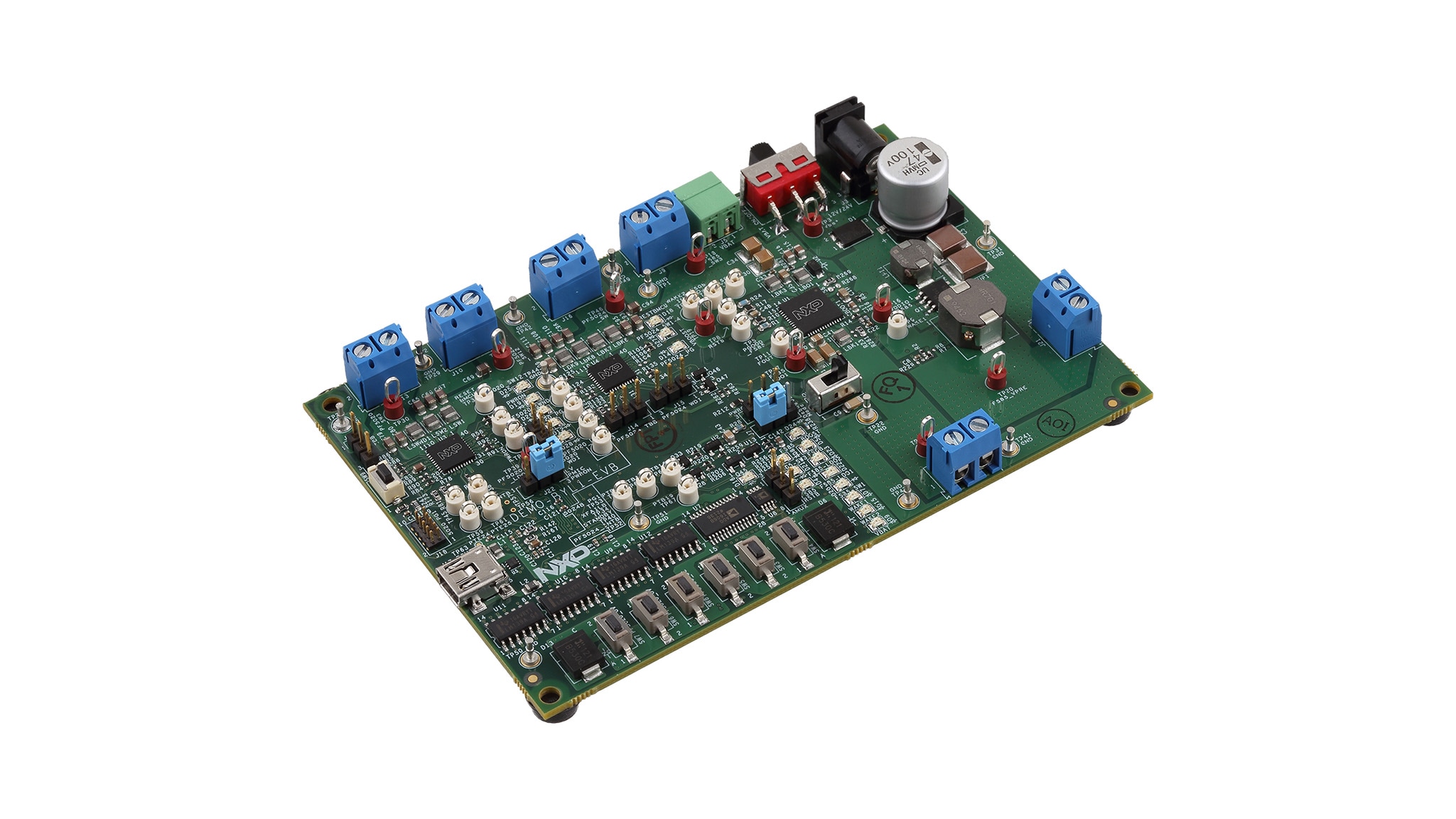

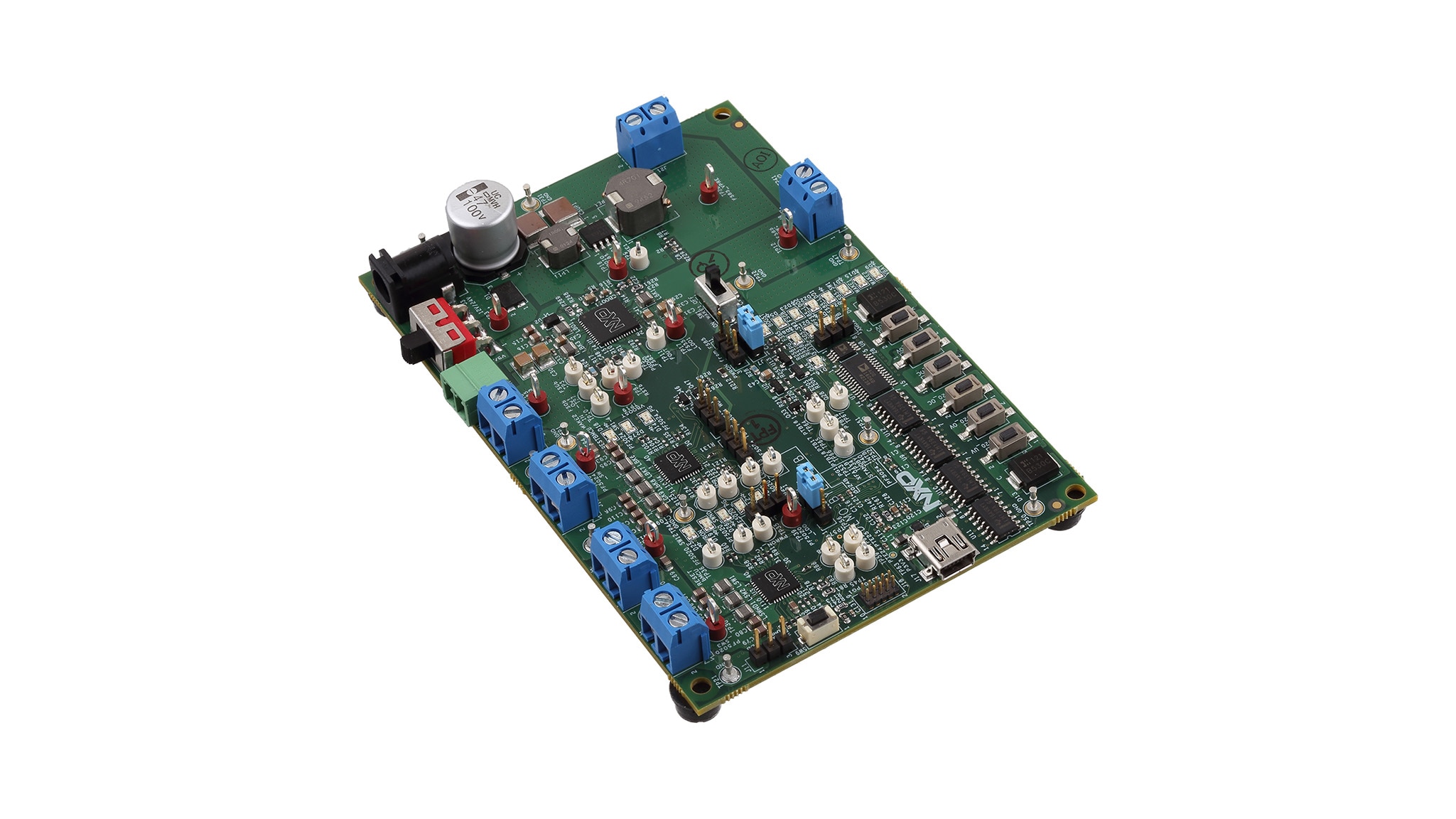

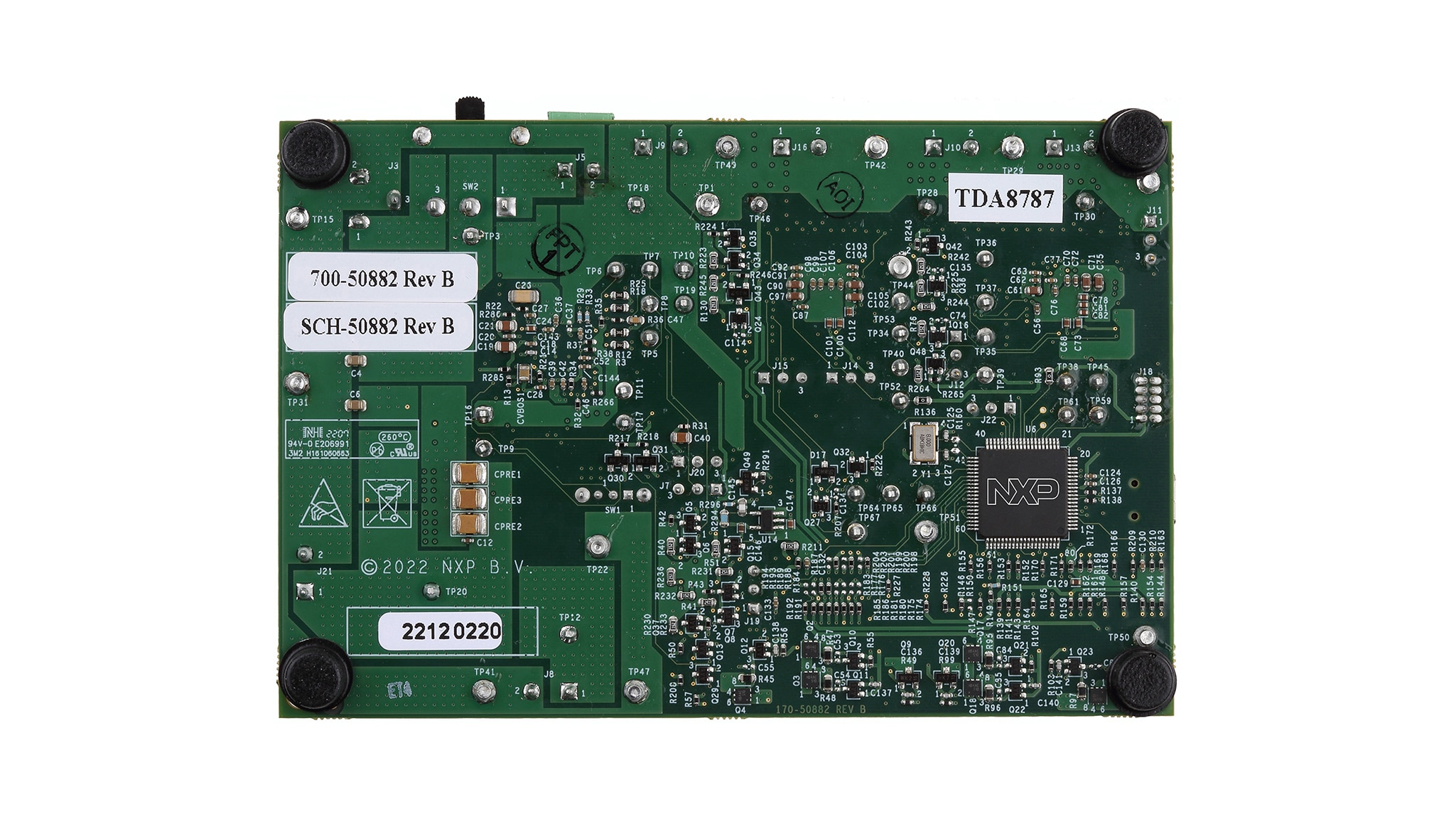

BYLink Multiprocessor Demo Board

DEMO-BYL1-EVB

Roll over image to zoom in

The DEMO-BYL1-EVB is a demonstrator design to illustrate the BYLink concept power management solution proposed by NXP for ADAS and multiprocessor automotive applications. The solutions integrates NXP PMIC such as FS8500, PF5024 and PF5020 as a single power solution for a camera application involving a safety MCU and a processing MCU.

The DEMO-BYL1-EVB kit provides full access to all the features of each PMIC device, such as OTP configuration, power sequencing and safety features. The demonstrator kit comes with a USB cable used as a communication interface between computer and BYLink concept to have control on the full PMIC solution.

Product Details

Select a section:

Block Diagram

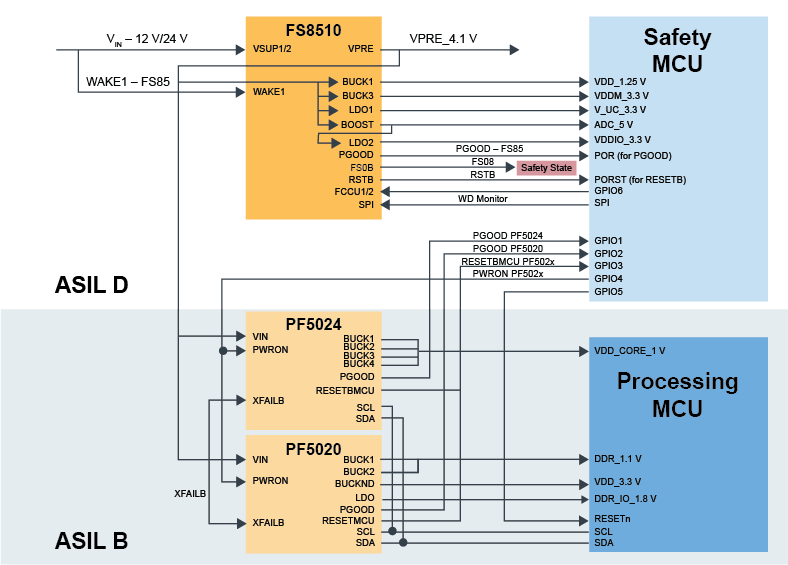

BYLink Tool Block Diagram

BYLink Tool Block Diagram
Get diagram PDF

Supported Devices

Power Management

PMICs

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level
  • PF5024: Multi-Channel (4) PMIC for Automotive Applications – 4 High Power, Fit for ASIL B Safety Level

Safety SBCs

  • FS8400: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
  • FS8500: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D

Features

  • OTP emulation
  • Power sequencing
  • Safety and fault management
  • Topology
    • BYLink concept including:
      • FS8500 device
      • PF5024 device
      • PF5020 device
  • Interfaces
    • USB com between PC to demo kit
    • I2C communication to PMIC devices

Buy Options

DEMO-BYL1-EVB-Image

Click to expand

  • DEMO-BYL1-EVB

  • BYLink Multiprocessor Demo Board.

  • Kit contains

    • Assembled and tested evaluation board in an anti-static bag

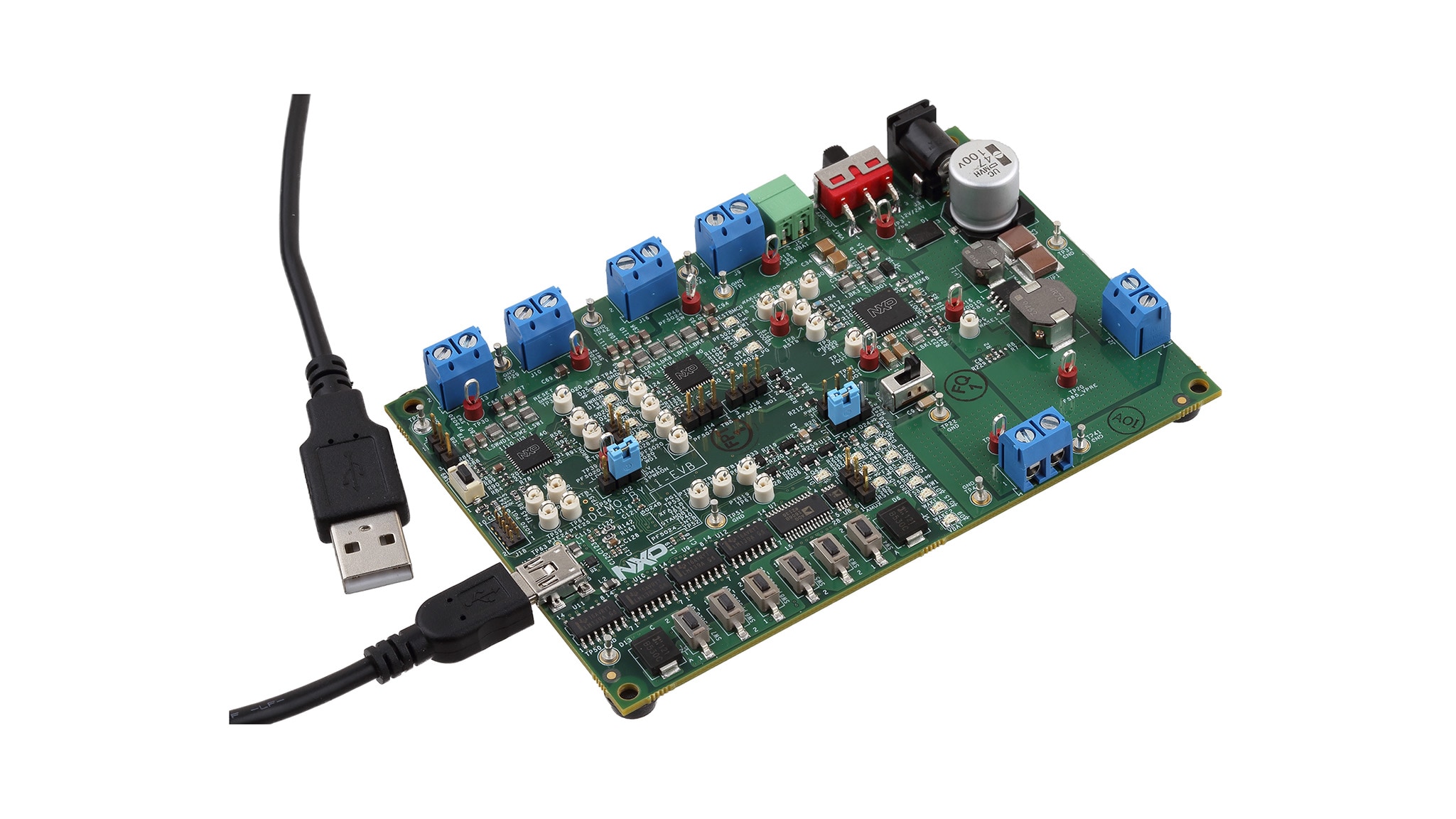

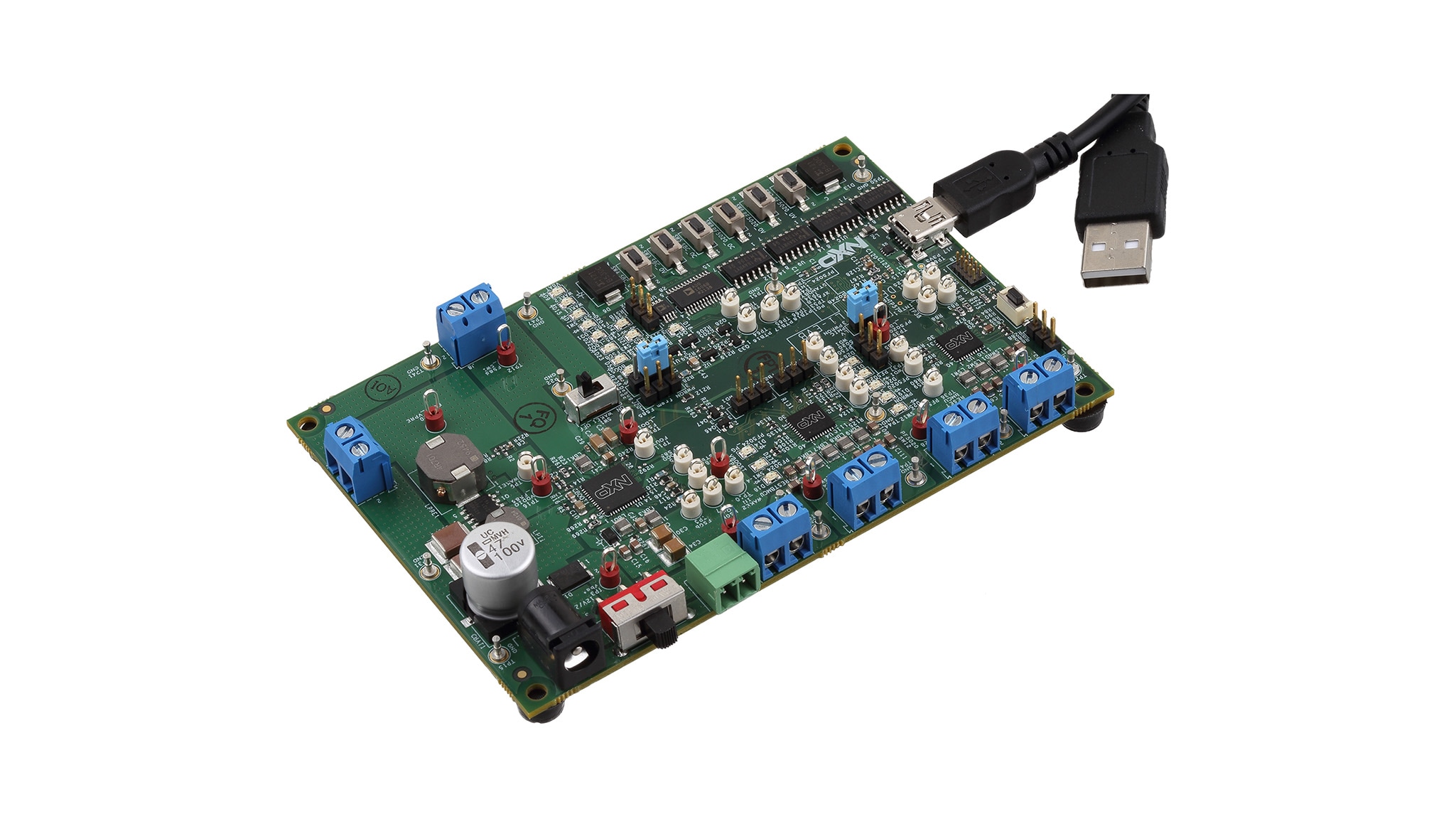

    • 3.0 ft USB-STD A to USB-B mini cable
    • Jumpers mounted on board
    • Quick start guide
  • $370.30 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

3 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    DEMO-BYL1-EVB Schematics

    PDFRev BJan 10, 2022 15:00:003.0 MBSPF-50882
    Sign in required
    Download
  • Design Files - miscellaneous

    DEMO-BYL1-EVB Design Files

    ZIPRev 1Mar 15, 2022 15:06:008.9 MBDEMO-BYL1-EVB-DESIGN-FILES
    Sign in required
    Download

Software

Filters

1 software file

  • Application Development Tools

    BYLink Multiprocessor Demo GUI

    ZIPRev 1.0Mar 16, 2022 15:20:0045.7 MBBYLink-DEMO-SOFT
    Sign in required
    Download
