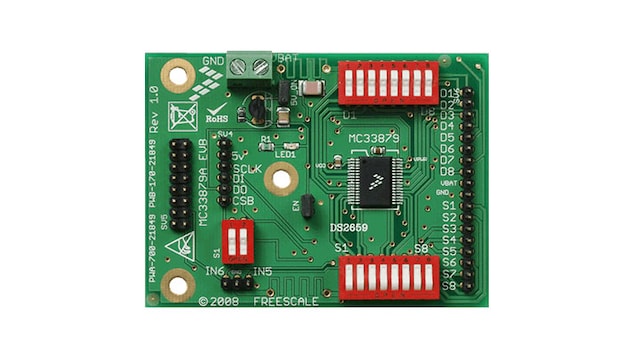

Evaluation Kit - 33879,Configurable Octal Serial Switch


Roll over image to zoom in

Product Details

Supported Devices

Power Management

Configurable Switches



  • 16-bit SPI for control and fault reporting, 3.3 V / 5.0 V compatible

Power Management

  • Designed to operate 5.5 V ≤ VPWR ≤ 26.5 V
  • Outputs are current limited (0.6 A to 1.2 A) to drive incandescent lamps
  • Output voltage clamp, + 45 V (low side) and - 20 V (high side) during inductive switching
  • Internal reverse battery protection on VPWR
  • Maximum 5.0 µA IPWR standby current at 13 V VPWR

User Components

  • On/Off control of open load detect current (LED application)

System Features

  • Short-circuit detect and current limit with automatic retry
  • Independent over-temperature protection
  • Loss of ground or supply will not energize loads or damage IC
  • RDS(ON) of 0.75 Ohms at 25 °C typical

Buy Options


Click to expand


  • Evaluation Kit - MC33879, Configurable Octal Serial Switch with Open Load Detect Current Disable.

  • $86.94 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
