TWR-SB0800-36EVB
-
Evaluation board - SB0800, Solenoid/High Side predrivers, 8 CH / 2, 36 V, 2.25 A for LSD.
Tower Board - SB0800, Octal Valve/Pump Controller SoC

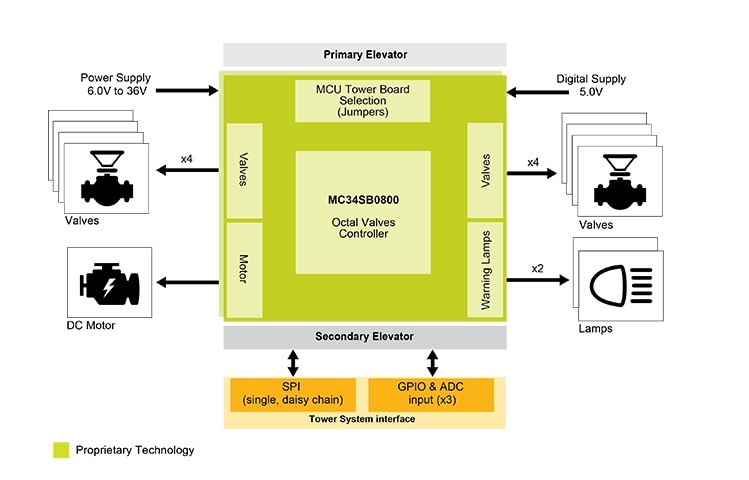

The TWR-SB0800-36EVB module is a development board illustrating the MC34SB0800 Octal Valve and Pump Controller System on Chip which consists of four low-side drivers regulated/PWM, a high side pre-driver safe switch to protect the valves against short circuit and a high side pre-driver to control a DC motor.
- The tower module provides rapid prototyping for industrial applications requiring high feature integration and safety features with the embedded supervision
- Can operate with any MCU tower board available on MCU and Processors modules offering an easy plug and play system
- Processor Expert® component Valve Driver and Embedded Software Valve Driver enables rapid embedded application development.
Product Details
Supported Devices
Power Management
Low Side Switches
- MC34SB0800: Octal Valve Controller System on Chip
Features
General Specifications
- Small power Package LQFP64 pins
- x4 Low side drivers current regulated or PWM (5 A)
- x4 PWM Low side drivers (5 A)
- x1 High side pre-driver Safe Switch
- x1 High side pre-driver for DC Motor (500 Hz)
- x3 ADC input (10 Bits)
- x1 Low side drivers (general purpose)
- x1 High side drivers (general purpose)
- SPI communication (10 MHz)
- Watchdog
Buy Options
Documentation
Quick reference to our documentation types.
5 documents
-
User Guide
PEXVALVECONTROLLERPUG, Valve Controller Programming Guide - User’s GuideGetting Started
-
User Guide
KTTWRSB0800-36EVBUG, TWR-SB0800-36EVB Tower® System Platform - User’s GuideGetting Started
-
Application Note
AN4388: Quad Flat Package (QFP) – Application Note
