Name: Demonstration Board for 56F8014 Digital Signal Controller
Price: 109.20 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Products
Processors and Microcontrollers
Additional MPU/MCUs Architectures
Digital Signal Controllers
Demonstration Board for 56F8014 Digital Signal Controller

Roll over image to zoom in

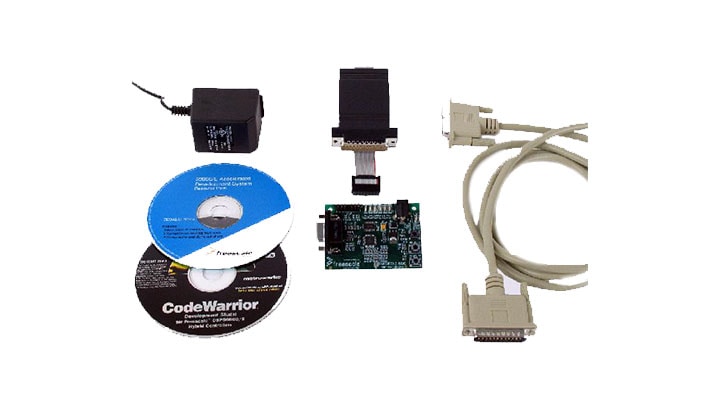

The 56F8014 Demonstration Board is an evaluation module board that includes a 56F8014 digital signal controller, RS-232 interface, user LEDs, user pushbutton switches and a daughter card connector. The daughter card connector allows signal monitoring and expandability of user features.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

56F801X: Digital Signal Controller for Motor Control Applications

Features

56F8014, a 16-bit +3.3 V hybrid controller operating at 32 MHz

Connectivity

RS-232 interface, for easy connection to a host processor [U2 and P3]
Daughter card connector, to allow the user to connect his own PWM, ADC, SCI, SPI, or GPIO-compatible peripheral to the digital signal controller

Power Management

On-board power regulation provided from an external +9 VDC-supplied power input

Debug

Joint Test Action Group (JTAG) port interface connector, for an external debug Host Target Interface

User Components

Light Emitting Diode (LED) power indicator
Six onboard real-time user debugging LEDs
Manual RESET push button
Manual interrupt #1 push button
Manual interrupt #2 push button

Buy Options

Click to expand

DEMO56F8014-EE
Active

MC56F8014 BD W/UNIV PS.

Kit Contains

Installation Guide
Demonstration Board
CodeWarrior™ Software
Adapter cable
Resource CD–ROM

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
