Specifications

Supported Devices

Processors and Microcontrollers

VFxxx R Series

VF5xxR : 32-bit Devices for Connected Radio and Digital Instrument Cluster Applications

Technical and Functional Specifications

Microcontroller	SVF522R3K1CMK4, 500 MHz 32-bit Arm Cortex-A5 core MCU
Memory	1 Gb (64 M x 16) DDR3 IC Three 256 Mbit (32 MB) QuadSPI Flash ICs SD card SPI serial 32 Mbit Flash IC (dedicated to DSP, optional usage)
Connectivity	Unified 24-bit DCU connector MLB daughtercard connector Board-to-Board connector bearing one 10/100 Mbit/s RMII MAC (Ethernet) interface
	Boot configuration jumpers and full 32-bit Two incremental encoders
Interfaces	Two VFxxx USB interfaces: Micro-AB and Standard-A connectors with full 500 mA support each
	I2C header for custom-made daughtercard powered from 3.3 V I2C header for daughtercard powered from 5 V Bluetooth daughtercard header Generic CD header
Audio	Left and right SPI-based microphones Standalone DSP for audio processing Twin dedicated audio DAC, filter, and headphone amplifiers for audio outputs (3.5 mm connectors) Radio-tuner daughtercard connector
Video	Four analog video inputs with direct connection to VFxxx video ADC
Debug	20-pin JTAG debug header 10-pin Cortex debug header
Components	RCON switches Four dedicated station preset buttons Potentiometer connected to VFxxx ADC High-speed CAN transceiver SCI/RS232 and LIN transceivers on shared VFxxx channel

Buy

EVB-VF522R3 ^Development

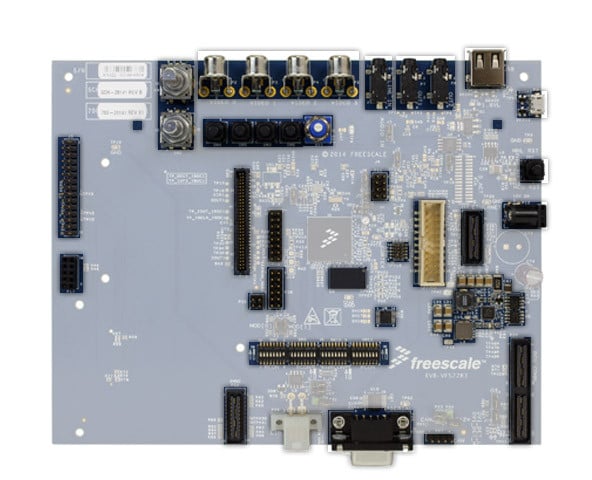

EVB-VF522R3, Evaluation Board
- EVB-VF522R3 Automotive Evaluation Platform
- Quick start guide
- SD card with demo application software
- 12±2 V AC-DC power supply adapter

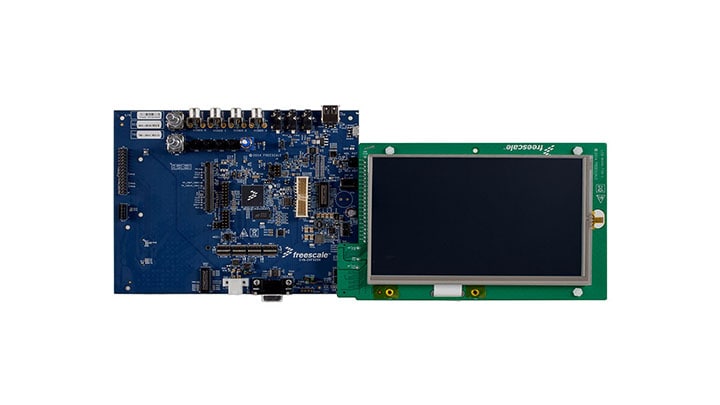

- Available for purchase: optional LCD-WVGA-7IN-1 and MCIMXHDMICARD

EVB-VF522R3
1 @ US
$999.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

LCD-WVGA-7IN-1 ^Development
WVGA display module for NXP i.MX and VFxxx R family evaluation platforms

LCD-WVGA-7IN-1
1 @ US
$499.00

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

MCIMXHDMICARD ^Active
Accessory Board, Hardware, i.MX 6SoloLite, i.MX53, i.MX50, 24-bit HDMI Interface Card

MCIMXHDMICARD
1 @ US
$49.00

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Get Started

Getting started with the EVB-VF522R3

User Guide

Start by following the instructions in the Quick Start Guide and explore the possibilities with your NXP EVB-VF522R3 evaluation platform.

EVB-VF522R3 Platform User’s Guide^{(REV
0
)}
- 2.8 MB
- EVBVF522R3UG
- [ English ]
EVB-VF522R3 Quick Start Guide – Evaluation Platform for the VFxxx R Series Products Used in Automotive Applications^{(REV
1
)}
- 810.5 kB
- EVBVF522R3QSG
- [ English ]

Documents

Application Note ( 3 )

AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes^{(REV
0
)}

AN4651: Each Animation and Compositing Engine (2D-ACE) module on the VFxxx MCU family is capable of driving a TFT LCD panel of different sizes.
- PDF
- 234.5 kB
- 23 Mar 2013
- AN4651
- [ English ]
Configuring and Using the 2D-ACE on VFxxx Microcontrollers^{(REV
0
)}

The VFxxx family of microcontrollers features up to two independent display peripherals that allow it to drive up to two TFT LCD panels. The 2D-ACE module features a rich set of capabilities that allow you to build engaging and dynamic graphic content from pre-rendered images and display this content on a wide range of TFT LCD panels. This application note explains the steps to configure and use the 2D-ACE with TFT LCD panels and how to display and blend graphics on each panel. See nxp.com for more d
- PDF
- 311.5 kB
- 18 Jan 2013
- AN4647
- [ English ]
AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note^{(REV
0
)}

The VFxxx family features a heterogeneous dual-core solution that combines the Arm^® Cortex^® -A5 and Arm Cortex^® -M4 cores. The family also features dual USB 2.0 OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). The VF6xx family is pin-and software-compatible with the VF[3,5,6] families. VFxxx VF6xx devices include multiple serial interfaces including UARTs
- PDF
- 467.1 kB
- 26 Jun 2013
- AN4755
- [ English ]

User Guide ( 2 )

EVB-VF522R3 Platform User’s Guide^{(REV
0
)}

This user’s guide details the setup and configuration of the NXP Automotive Evaluation Board. The EVB is intended to provide a mechanism for easy customer evaluation of the heterogeneous dual-core VFxxx family, and to facilitate hardware and software development.
- PDF
- 2.8 MB
- 18 Nov 2014
- EVBVF522R3UG
- [ English ]
EVB-VF522R3 Quick Start Guide – Evaluation Platform for the VFxxx R Series Products Used in Automotive Applications^{(REV
1
)}

The heterogeneous dual-core VFxxx series of applications processors represents NXP’s scalable family of products powered by single Arm^® Cortex^™-A5 core and dual-core Cortex-A5 + Cortex™-M4 implementations for the automotive market.
- PDF
- 810.5 kB
- 17 Dec 2014
- EVBVF522R3QSG
- [ English ]

Fact Sheet ( 1 )

VFxxx VF5xxR Family Fact Sheet^{(REV
2
)}

The VFxxx VF5xxR family is purpose-built and cost-optimized for connected radio, entry-level infotainment and digital instrument cluster applications. The family features generous 1.5 MB on-chip SRAM, dual-core architecture combining the high-performance low-power Arm® Cortex®-A5 application processor with the ultra-low-power Arm Cortex®-M4 microcontroller, OpenVG^™ graphics accelerator, 2D graphics composition engine and dual QuadSPI interface with DDR support.
- PDF
- 137.2 kB
- 05 Dec 2014
- VF5XXRFAMFS
- [ English ]
