F104S8A Four-port Gigabit Ethernet Copper PHY

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

F104S8A features Vitesse's innovative EcoEthernet 2.0 technology that supports Energy Efficient Ethernet (EEE), ActiPHY™ automatic link power down and PerfectReach™, an intelligent algorithm that adjusts power based on cable length. The F104S8A device optimizes power consumption in all link operating speeds. Adjustable LED brightness control further reduces power consumption for end users. The device is compliant to IEEE 802.3 standards for 10BASE-T, 10BASE-Te, 100BASE-TX and 1000BASE-T.

The F104S8A is available as a companion device to the following QorIQ^® Communications Processors:

Layerscape processors are part of the NXP's EdgeVerse™ edge computing platform.

Data Sheet

Product Details

Block Diagram

F104S8A BD

Get diagram PDF

Features

EcoEthernet 2.0 green energy efficiency modes including ActiPHY, PerfectReach, and IEEE 802.3az
Integrated LED brightness control
Fully optimized power consumption for all link speeds

Ordering Information

Part Number	Description	Operating Temperature (°C)	Package Type	How to Order
F104S8A	QSGMII PHY Standard Temperature	0 - 125	12x12, QFN, 138-pin, 0.65mm pin pitch	Contact your local sales representative or contact us
F104X8A	QSGMII PHY Extended Temperature	-40 - 125	12x12, QFN, 138-pin, 0.65mm pin pitch	Contact your local sales representative or contact us

Documentation

Quick reference to our documentation types.

1 documents

Clear all

^{Data Sheet}
F104S8A Data SheetFeatured

PDFRev 1Feb 26, 20151.1 MBF104S8AEnglish
Sign in required

Design Resources

Hardware

2 hardware offerings

Clear all

^{Evaluation and Development Boards}
Layerscape LS1028A Reference Design Board

LS1028ARDB
^Designs
LS1043A Residential Gateway Reference Design

LS1043A-RGW

1-5 of 7 hardware offerings

Clear all

^{Test Accessories and Debugger}
TRACE32 JTAG/BDM Debugger for P

Lauterbach has over 40 years of experience in making world class microprocessor development tools. TRACE32 supports technologies like JTAG, SWD, NEXUS or ETM with embedde...

By Lauterbach Gold Partner
^{Test Accessories and Debugger}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum Partner
^{Test Accessories and Debugger}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum Partner
^{Test Accessories and Debugger}
TRACE32 JTAG/SWD Debugger for A

Lauterbach has experience in making world class microprocessor development tools since 1979. TRACE32 supports technologies like JTAG, SWD, NEXUS or ETM with embedded debu...

By Lauterbach Gold Partner
^{Complementary Silicon or Component}
DRAM Modules

We build our modules from start to finish—designing, manufacturing, and testing all of the DRAM ourselves before assembling the modules and testing again. So, from high-p...

By Micron Gold Partner
^{Embedded Board Solutions}

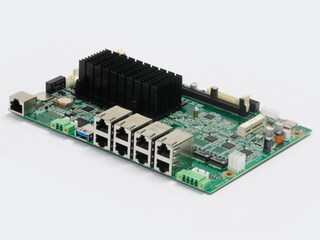

EMB-7521
