Name: S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB
Price: 1400.00 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

The S32R41 and TEF82xx development platform is designed for enabling users to start radar development quickly and easily by providing an example software project based on the S32R41 evaluation board (EVB) and the TEF82xx customer antenna board (CAB). It integrates several NXP software components, including auto zephyr BSP, radar SDK (RSDK), real-time drivers (RTD), inter-platform communication framework (IPCF) and safety software framework (SAF).

Product Details

Block Diagram

S32R41 + TEF82 Development Platform

Get diagram PDF

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

Automotive Ethernet PHYs

TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver

Power Management

System Basis Chips

FS86: Safety System Basis Chip For Domain Controller, Fit For ASIL B and D

PMICs

PF5103: Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL B Safety Level

Processors and Microcontrollers

S32R Radar MCUs

S32R41: S32R41 High-Performance Processor for High-Resolution Radar

RF

Radar Technology

TEF82xx: Fully Integrated 77 GHz RFCMOS Automotive Radar Transceiver

Features

General Features

S32R41 radar MPU
Single 12 V external power supply input with necessary EVB and MCU voltages provided by an NXP power management IC (PMIC) solution
Power supplied to the EVB via a 2.1 mm barrel style power jack; 12 V operation allows in-car use if desired
Master power switch and regulator status LEDs
Flexible MCU clocking options allow provision of an external clock via adaptor board (via MIPI-CSI0 connector) or 40 MHz EVB clock oscillator circuit. Solder pads allow selection between these external clocks
Boot mode selection via switches on board

Memory

64 Mb (16 MB) serial NOR flash memory
1 Kb EEPROM connected to MCU via I²C

Connectivity

Standard 20-pin ARM JTAG debug connector and 34-pin nexus aurora connector
RGMII Gb ethernet physical interface IC, with RJ45 connector
RMII / MII 100 Mb ethernet physical interface IC with matenet connector
Two high speed connectors intended for direct use with the TEF820X CAB board
All MCU signals readily accessible at a port-ordered group of 0.1” pitch headers
2x CAN-FD interfaces
UART to micro USB interface
2 user switches and 4 user LEDs, freely connectable
64 * 102 character LCD with DSPI interface (DSPI0)
User reset switch with reset status LED

TEF82xx Customer Antenna Board (CAB)

Dual TEF82xx RF front-end board through different MIPI-CSI2 / SPI joint connectors. Free choice of the two different front ends through a jumper configuration
RF RX / TX channels wired to 6 Tx x 8 Rx antenna array
Optimized for 78 GHz operation

Buy Options

Click to expand

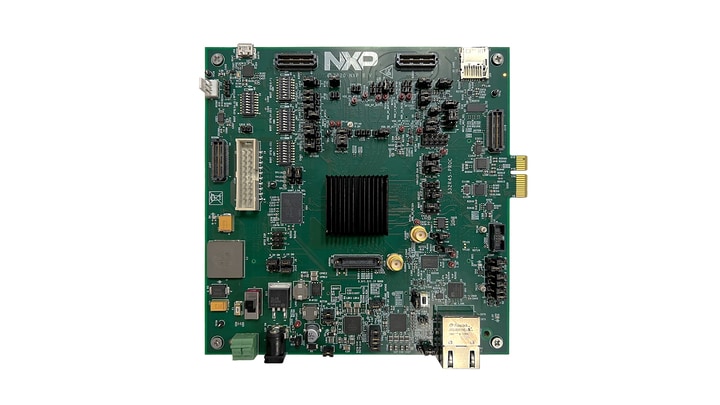

S32R41-EVB
S32R41 Evaluation Board.
Kit contains:
- S32R41-EVB processor board
- Power supply

$1400.00 USD
For a quantity of 1
- Availability: In stock
- Inventory: 17
- Shipping: Normally ships 1-2 business days

Buy from NXP

Click to expand

VB-CAB-V3
S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB.
Kit contains:
- TEF82xx Customer Application Board
- Quick Start Guide

$2000.00 USD
For a quantity of 1

Documentation

Quick reference to our documentation types.

Design Resources

Software

1 software file

^{Simulation and Modeling Tools}
Automotive SW - S32R41 Standard Software - S32R41 + TEF82xx Development Platform

Development Platform Software Package, that helps you get started with S32R41 + TEF82xx Kit

FLEXERARev 1Aug 8, 2023 09:52:001 KBS32R41-STANDARD-SW

Download

Note: For better experience, software downloads are recommended on desktop.

S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB
