BGU8062

BGU8062: Low-Noise High-Linearity Amplifier

Overview

The BGU8062 is, also known as the BTS3001M, a high linearity bypass amplifier for wireless infrastructure applications. The BGU8062 is equipped with fast shutdown to support TDD systems. The LNA has a high input and output return loss and is designed to operate between 1.5 GHz and 2.7 GHz. It is housed in a 3 mm × 3 mm × 0.85 mm 10- terminal plastic thin small outline package. The LNA is ESD protected on all terminals.

Features

Low noise performance: NF = 1.3 dB
High linearity performance: IP3_O = 36 dBm
High input return loss > 12 dB
High output return loss > 15 dB
Unconditionally stable up to 20 GHz
Small 10-terminal leadless package 3 mm x 3 mm x 0.85 mm
ESD protection on all terminals
Moisture sensitivity level 1
Fast shut down to support TDD systems
+5 V single supply

Target Applications

Wireless infrastructure
Low noise and high linearity applications
LTE, W-CDMA, CDMA, GSM
General-purpose wireless applications
TDD or FDD systems
Suitable for small cells

Features

Low noise performance: NF = 1.3 dB
High linearity performance: IP3_O = 36 dBm
High input return loss > 12 dB
High output return loss > 15 dB
Unconditionally stable up to 20 GHz
Small 10-terminal leadless package 3 mm x 3 mm x 0.85 mm
ESD protection on all terminals
Moisture sensitivity level 1
Fast shut down to support TDD systems
+5 V single supply

Target Applications

Wireless infrastructure
Low noise and high linearity applications
LTE, W-CDMA, CDMA, GSM
General-purpose wireless applications
TDD or FDD systems
Suitable for small cells

Application Notes

sot650-2_3d

sot650-2_3d

sot650-2_3d

Key Parametrics

Frequency (Min) (MHz)

1500
Frequency (Max) (MHz)

1500
NF (dB)

1.5
IP3_i (dBm)

1.1

Development Boards and Designs

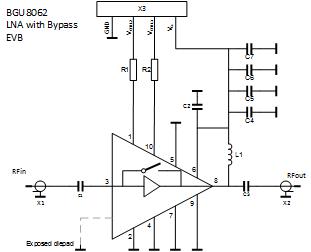

OM17003 : Demoboard for BGU8062, LNA with Bypass thumbnail
