5 GHz ISM SiGe:C Low-Noise Amplifier MMIC with Bypass

  • This page contains information on a product that is not recommended for new designs.

See product image

Product Details

Features

  • Fully integrated, high performance LNA with built-in bypass

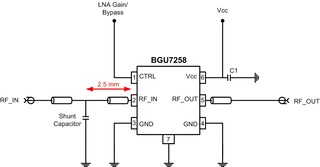

  • Integrated DC blocking at RF input and RF output, with only two external components needed
  • Low 1.6 dB noise figure with 13 mA current consumption
  • Low bypass current of 1 μA (typical)
  • Single supply 3.0 V to 3.6 V operation
  • Integrated concurrent 2.4 GHz notch filter and temperature stabilized bias network
  • High IP3i and low EVM
  • High ESD protection of 2 kV (HBM) on all pins
  • Small, 0.5 mm pitch, 1.6 mm x 1.6 mm x 0.5 mm QFN-style package, MSL 1 at 260 °C
  • Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS) following NXP’s RHF-2006 indicator D (dark green)

Target Applications

  • IEEE 802.11a/n/ac WiFi, WLAN
  • Smartphones, tablets, netbooks and other portable computing devices
  • Access points, routers, gateways
  • Wireless video
  • LTE advanced in unlicensed spectrum (LTE-U)
  • General purpose ISM applications

Part numbers include: BGU7258.
