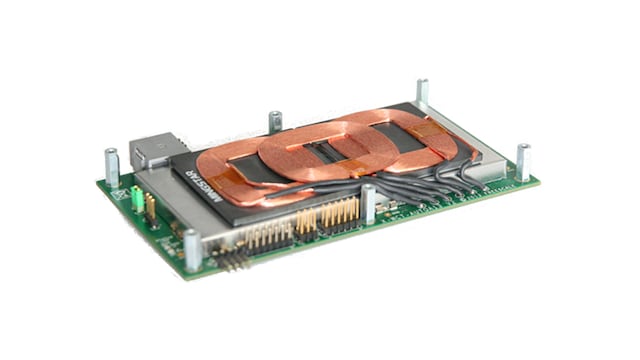

The NXP^® 5 W multi-coil transmitter reference platform is designed for automotive wireless charging applications based on the NXP MWCT1003AVLH transmit controller IC.

The controller IC manages and performs all control functions necessary to implement a wireless charging transmitter solution.
Provides high-performance wireless charging system while taking the complex operating environment of a vehicle into consideration.

MWCT1001A/MWCT1003A Wireless Charging ICs - Fact Sheet

Software

Product Details

Block Diagram

5W Multi-Coil Wireless

Get diagram PDF

Supported Devices

Power Management

Wireless Power

MWCT1x0xA: 5 Watt Wireless Charging Transmitter ICs for Automotive Applications

12 V, 24 V, and 48 V SBC Solutions

MC33907: Safe System Basis Chip DC/DC up to 800 mA

Interfaces

3.3 V / 5 V IO CAN Transceivers

TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

Features

Greater than 60% transfer efficiency
Multi-coil to support any Qi-enabled smartphone
Low active RUN power
On-chip digital demodulation
Low system standby power consumption (using NXP proximity sense technology)
Robust foreign object detection algorithm
Addresses automotive specific issues such as EMC, key fob and start/stop
Supports additional features such as NFC, CAN and touch sense
Certified as WPC-A13 transmitter type

Buy Options

Click to expand

WCT-5WTXAUTO
No Longer Manufactured

5 watt multi-coil reference platform design for automotive applications.

Kit Contains

WCT automotive A13 board
Power supply connector
Power supply 12 V
USB-UART converting board
Touch board
