5 Watt Wireless Charging Transmitter ICs for Automotive Applications
MWCT1x0xA Receive alerts
- Not Recommended for New Designs
- This page contains information on a product that is not recommended for new designs.

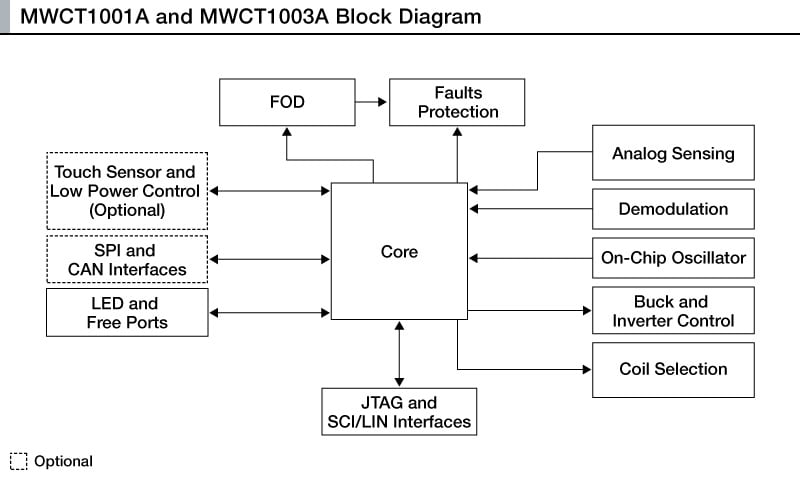

The NXP® MWCT1001A and MWCT1003A multi-coil wireless charging transmitter ICs provide complete controller functionality to implement a wireless charging transmitter solution in an automotive environment.
- Implement and control the power transfer function, as well as monitor and manage overall system state, such as foreign object detection, temperature and system efficiency
- Standard and premium solutions provide scalability, differentiation and a fully functional, industry compliant system solution
- NXP offers an upgrade path to the WCT1003A, providing additional hardware and software resources to customize the application and maximize differentiation
Product Details
Features
- Compliant with the latest Wireless Power Consortium (WPC) specification
- Power transfer efficiency exceeding 60%
- Optimized Foreign Object Detection algorithm
- Support for most 5W coil types, single or multi
- On-chip digital demodulation for lower bill-of-materials cost
- Low active and standby power
- Premium version available for additional design flexibility and product differentiation
- Easy-to-use debug and configuration tools to speed up product development
Documentation
Quick reference to our documentation types.
1-5 of 11 documents
-
Fact Sheet
Wireless Charging ICs for Automotive Application MWCT1001AMWCT1003AFeatured
-
Data Sheet
Automotive Wireless Transmitter Controller - Data SheetFeatured
-
Reference Manual
MWCT10x3A Reference Manual
Design Resources
Software
2 software files
-
Code Snippets
WCT100xAA13SW
-
Development IDEs and Build Tools
DSC56800EX Quick Start Installation Package
Note: For better experience, software downloads are recommended on desktop.
Engineering Services
To get further assistance directly from NXP, please see our Engineering Services.
4 engineering services
-
Independent Design House (IDH)
Hardware Design Services
-
Independent Design House (IDH)
Wireless charger and Power management
-
Independent Design House (IDH)
Embedded Software Design
-
Independent Design House (IDH)
Wireless Charging Design
To find a complete list of our partners that support this product, please see our Partner Marketplace.
