MWCT1x23 65W+ Wireless Power Transmitter Controller

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The NXP^® MWCT1x23 65W+ Wireless Power Transmitter Controller IC provides high speed control loops, robust foreign object detection, over voltage and over current protection to enable safe and secure power delivery through non-magnetic materials such as air, glass, wood, and plastic.

Data Sheet

Reference Manual

Product Details

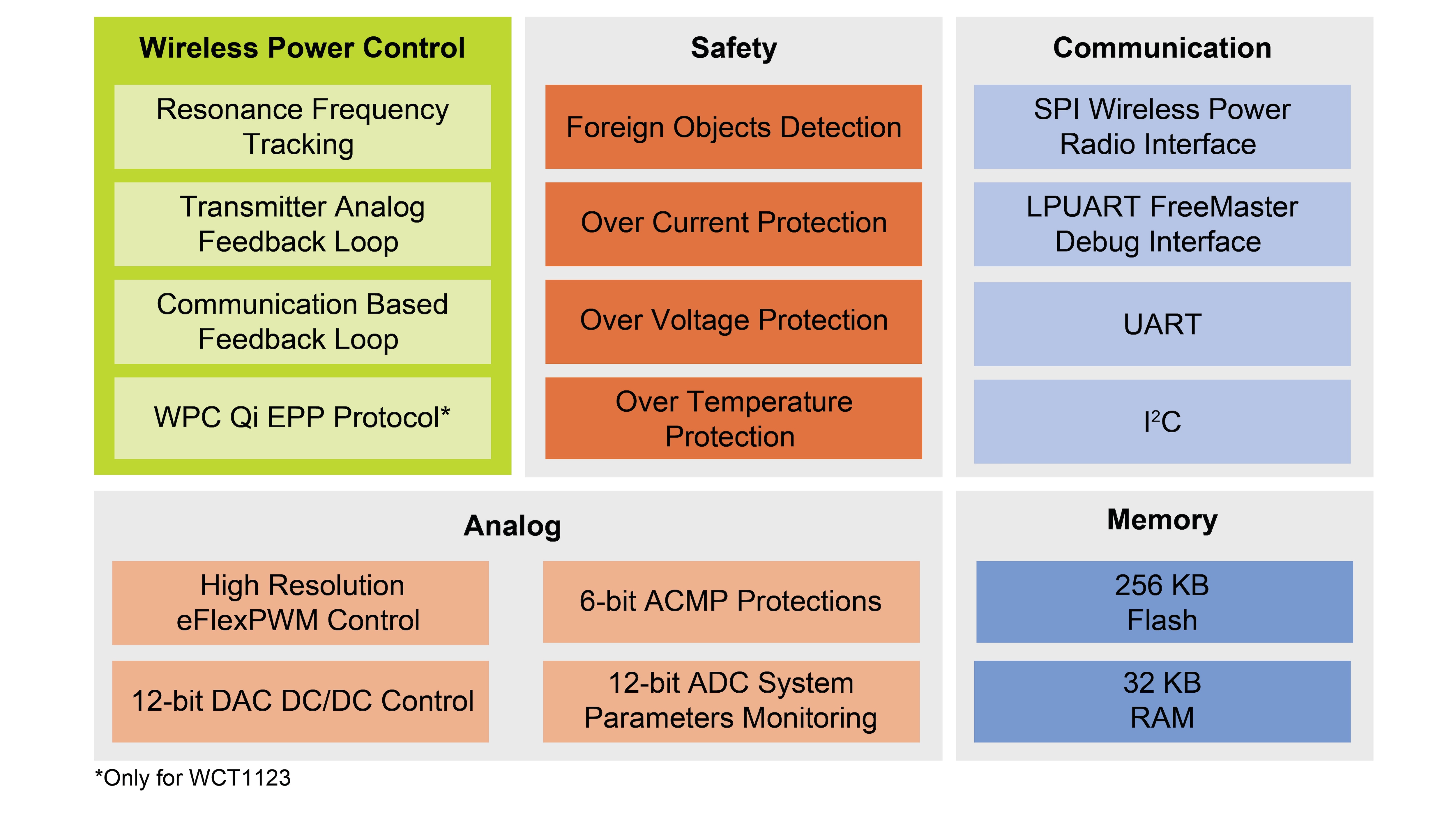

Block Diagram

65W+ Wireless Power Transmitter Controller

Get diagram PDF

Features

Ultra-fast analog control loop
Run-time resonance tracking
Broad spatial x/y freedom and extended z-gap
Secure Firmware (FW) updates in the field
Run-time accurate FOD detection
Temperature sensing
High-speed PWMs
Over current and over voltage protections
