MWCT1R24 65W+ Wireless Power Transmitter Radio

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

The NXP^® MWCT1R24 65W+ Wireless Power Transmitter Radio IC provides robust 2.4GHz communication channel for transmitter to transfer data for power control, temperature monitoring, FW updates and other functionality.

Data Sheet

Reference Manual

Product Details

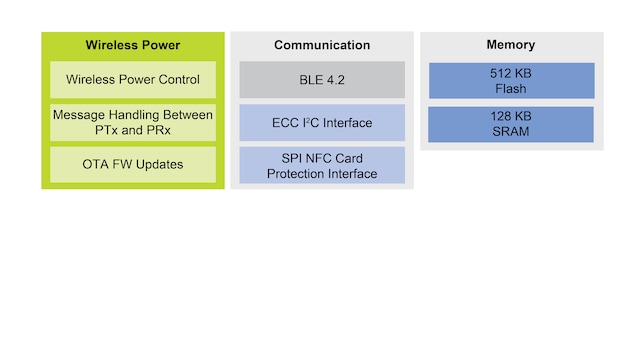

Features

2.4GHz Radio
BLE
Wireless Power profile
Power Control
Firmware Update
Temperature Monitoring
EC communication link

Documentation

Quick reference to our documentation types.

2 documents

^{Data Sheet}
MWCT1R24ZVHT Data Sheet

PDFRev 0Apr 21, 20191.0 MBMWCT1R24ZVHTEnglish
^{Reference Manual}
MWCT1R24 Reference Manual

PDFRev 0Dec 4, 201917.7 MBMWCT1R24ZVHTRMEnglish
Sign in required

Design Resources

Hardware

1 hardware offering

^{Reference Design}
Single Coil Wireless Power Solution

WPS-65WS
