15 Watt Wireless Charging Transmitter ICs for Automotive Applications
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
15+ Watt Wireless Charging Transmitter ICs for Automotive Applications

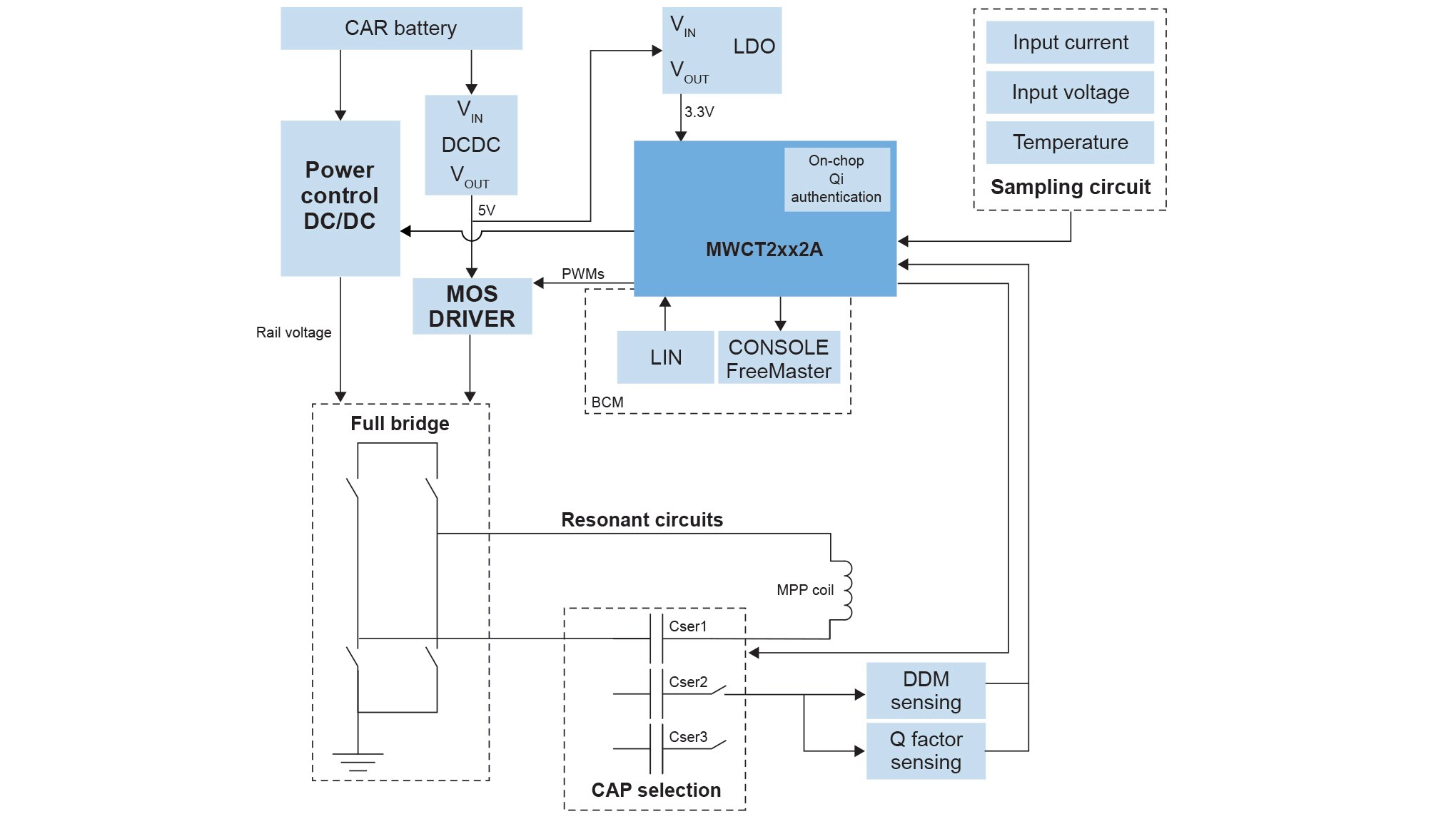

The MWCT2xx2A family comprises the 2nd generation of NXP wireless charging transmitter analog performance ICs with updated peripherals and optimized power consumption. This series features automotive wireless power transmitter microcontrollers that integrate all required functions for Wireless Power Consortium (WPC) "Qi" compliant wireless power transmitter designs for automotive/industrial/consumer applications.
Product Details
Features
- Compliant with the latest version WPC Qi specification's power transmitter design
- On-chip security module supports authentication required in the WPC Qi specification
- Support both MPP and EPP as well as customer proprietary protocol to enable fast charging and authentication
- Support a wide transmitter DC input voltage range (from 5 V to 48 V)
- Integrated digital demodulation
- Support two-way communication, transmitter to receiver by FSK and receiver to transmitter by ASK
- I2C/SCI/SPI interfaces
- Overvoltage/current/temperature protection
- Support Q factor detection and calibrated power loss-based Foreign Object Detection (FOD) framework
- AEC-Q100 qualified and PPAP capable
- Low standby power
Related products
LIN Transceiver with Integrated Voltage Regulator
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types
2 documents
Compact List
Data Sheet (1)
-
MWCT2xx2A Data Sheet[WCT2xx2ADS]
Reference Manual (1)
-
MWCT2xx2A Reference Manual[WCT2xx2ARM]
Design Resources
Software
Quick reference to our software types.
2 software files
-
Debugging and Visualization Tools
FreeMASTER Run-Time Debugging Tool
-
Development IDEs and Build Tools
CodeWarrior® for MCUs (Eclipse IDE) - ColdFire®, 56800/E DSC, Qorivva® 56xx, RS08/S08, S12Z - 11.1
Note: For better experience, software downloads are recommended on desktop.
