Ara-1 M.2 (M-Key) Module for AI-Integrated Cameras and Embedded Systems

ARA-1-M2-MODULE
Not Recommended for New Designs

  • This page contains information on a product not recommended for new designs. Specifications and information herein are subject to change without notice. For additional information, please contact NXP support or your NXP sales representative.

Roll over image to zoom in

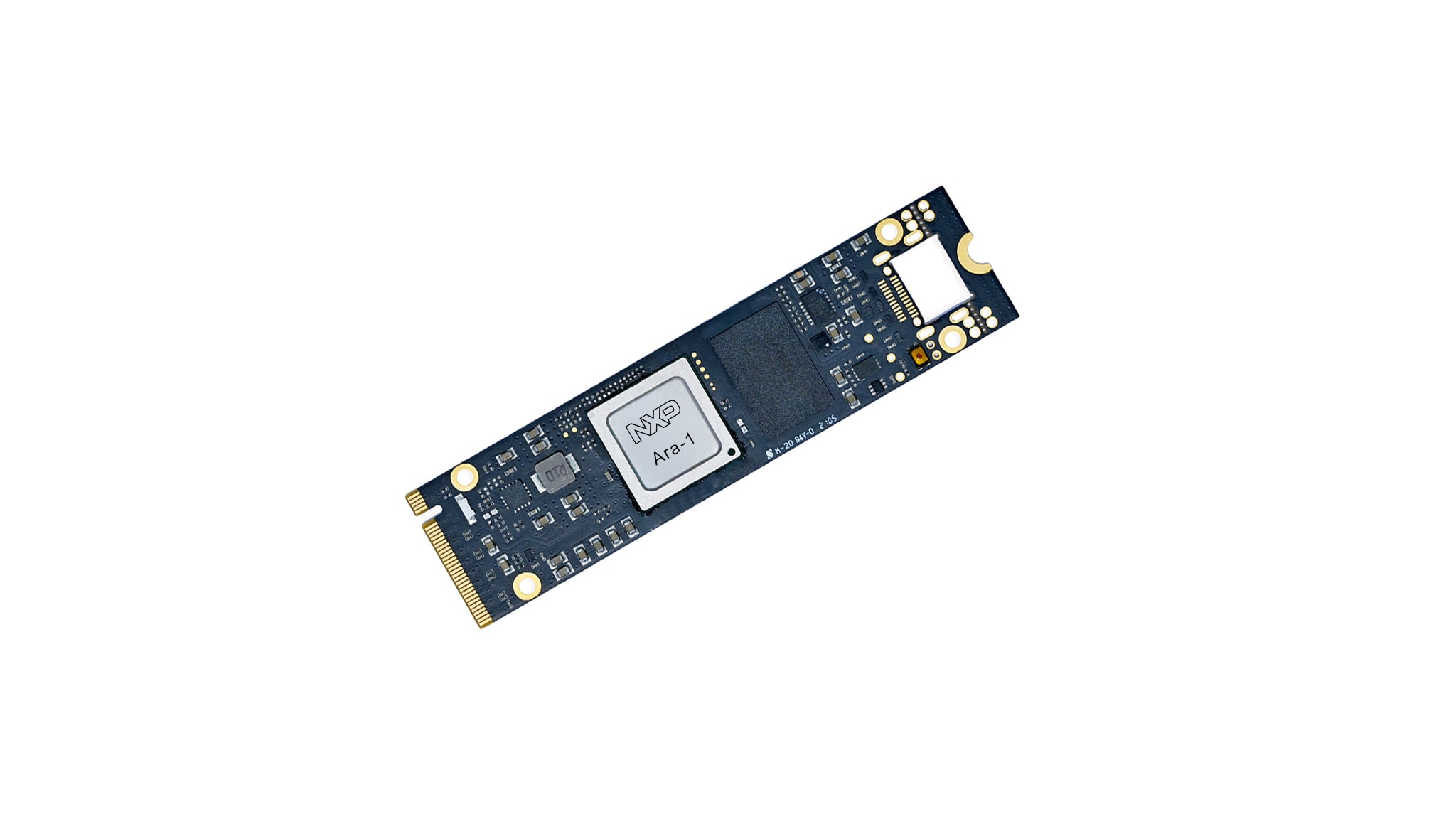

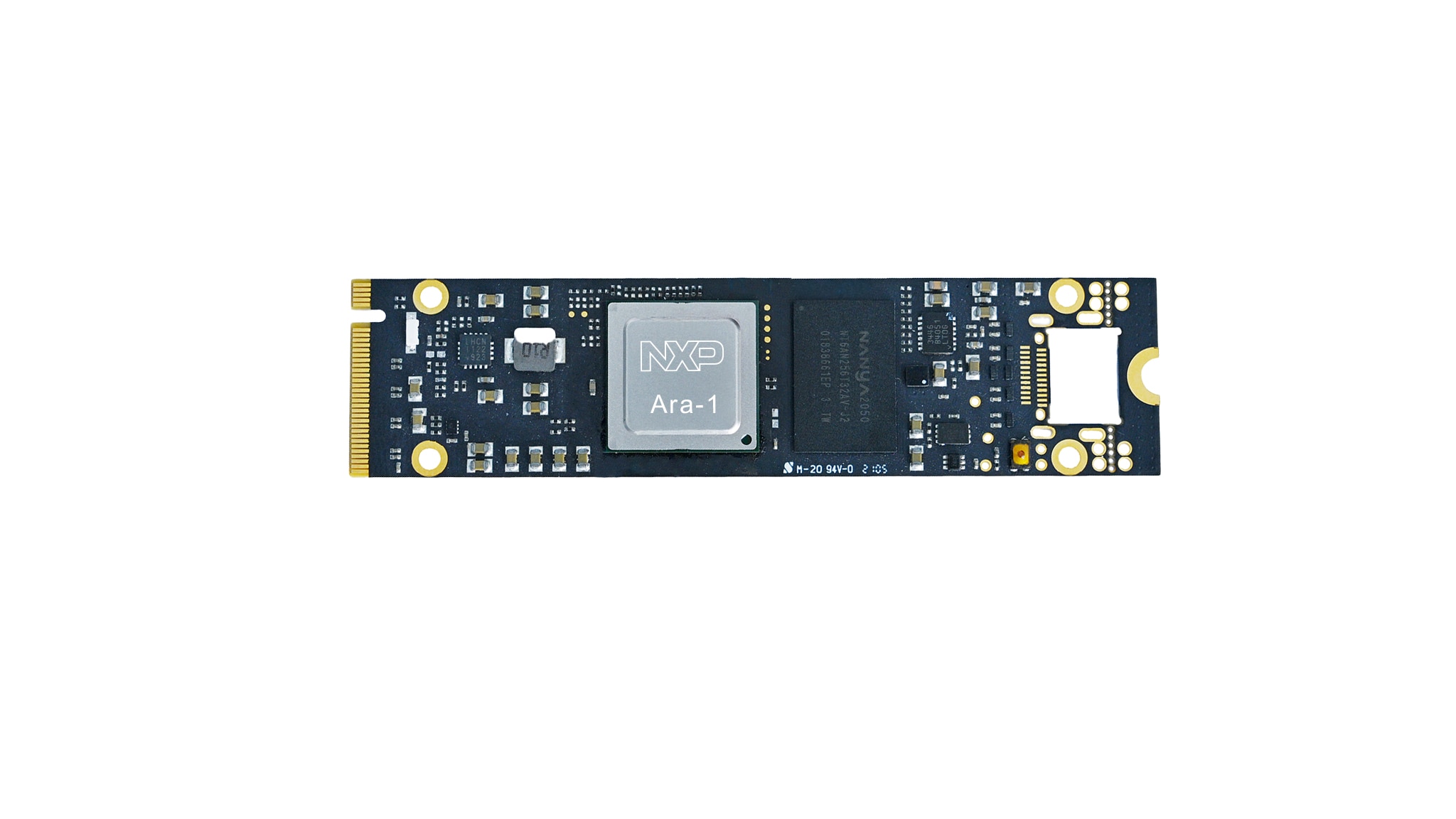

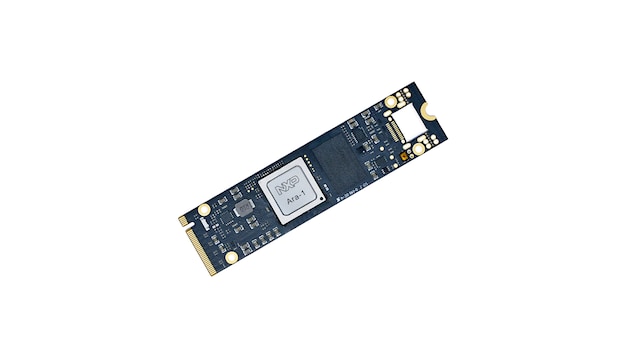

The Ara-1 M.2 module is a compact AI accelerator designed for edge computing, offering real-time AI inferencing with low power consumption and fast processing speeds. It integrates the Ara-1 Discrete Neural Processing Unit, 1 GB LPDDR4 memory, and supports AI frameworks like TensorFlow, PyTorch and ONNX. It enables on-device AI without cloud connectivity, ensuring low latency and enhanced privacy.

Block Diagram

Choose a diagram:

NXP Applications Processor and Ara DNPU Connection

ARA-1-DNPU-BD-2

Integration of Ara DNPU and Applications Processors Host with Drivers

ARA-1-DNPU-BD-3

Machine learning deployment flow

ARA-1-DNPU-BD
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Discrete Neural Processing Units

  • ARA-1-DNPU: Ara-1: Discrete NPU for Optimized Edge-AI

i.MX 8 Applications Processors

  • i.MX8MPLUS: i.MX 8M Plus – Arm® Cortex®-A53, Machine Learning, Vision, Multimedia and Industrial IoT

i.MX 9 Processors

  • i.MX95: i.MX 95 Applications Processor Family: High-Performance, Safety Enabled Platform with eIQ® Neutron NPU

Features

AI model frameworks supported

  • TensorFlow
  • PyTorch
  • ONNX

Form factor

  • M.2-2280 (M-Key) compliant; (22 mm x 80 mm x 10 mm)

AI Model Architectures Supported

  • Convolutional Neural Networks (CNNs)

Performance1

  • Up to 6 eTOPS*

Interface

  • PCIe Gen3 x4

Memory

  • 1 GB LPDDR4 (stores all user models)

Operating system support (Runtime)

  • Linux

Operating voltage (DC supply)

  • 5 V ±10 %

1Maximum performance based on peak computational throughput of Ara-1 (800 MHz) and Host System. Specification subject to change without notice. Performance may vary depending on system configuration.

*eTOPS = equivalent TOPS.
