6-cell Battery Pack to supply MC33772 EVB’s

Roll over image to zoom in

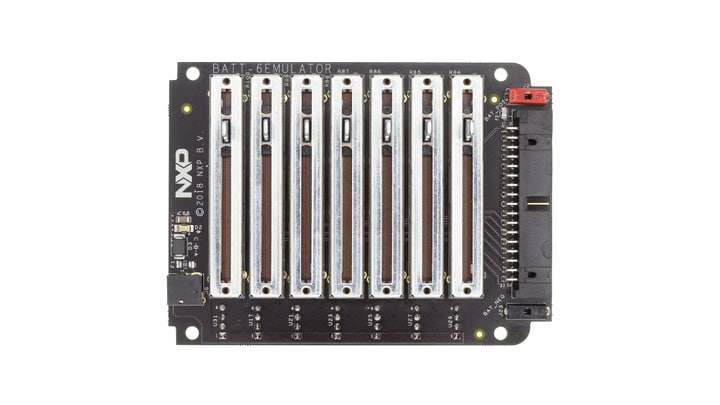

The BATT-6EMULATOR can emulate a multi-cell battery pack that can be easily hooked up to the evaluation boards for automotive battery cell controller MC33772:

FRDM33772BTPLEVB
FRDM33772BSPIEVB

Design Files

Product Details

Supported Devices

Battery Management

Battery Cell Controllers

MC33772B: 6-Channel Li-Ion Battery Cell Controller IC

Features

Power Management

6-cell battery emulator, up to 3 emulators in series
Adjustable individual cell voltage (1.26 V~4.8 V)
LED power indicator

Buy Options

Click to expand

BATT-6EMULATOR
Active

6-cell Battery Pack to supply MC33772 EVB’s.

Kit Contains

1 BATT-6EMULATOR board

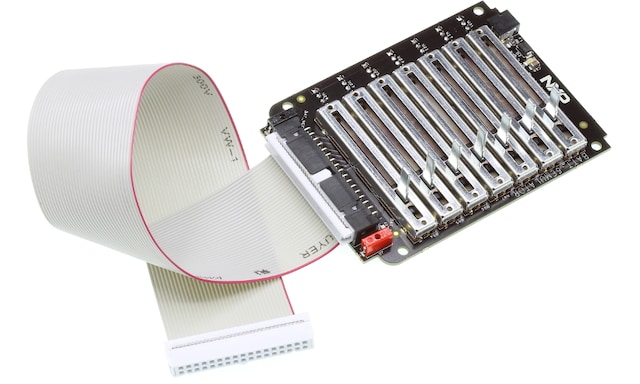

1 Ribbon cable to connect battery emulator to MC33771 EVBs

$552.00 USD

In Stock :5

Normally ships 1-2 business days

ADD TO CART

Order from distributors
