Bluetooth Ranging Vehicle Access Enablement System (ICCE / ICCOA)
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

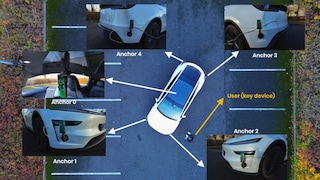

The Bluetooth Ranging Vehicle Access Enablement System is presenting various capabilities of KW4x Bluetooth Low Energy (BLE) MCUs powered systems for automotive access use case. Reference designs and application notes provides a flexible and easy method to deploy a low power architecture based on Channel Sounding (CS) and BLE Handover (NXP proprietary feature) by leveraging fast LCE, the key feature of high accuracy in distance measurement. The system measures the distance between by remote device (digital key) and several different fixed devices (car anchors), securely authenticate with ultra-low power and high accuracy.
Product Details
Block Diagram
Features
BLE Channel Sounding
- Multiple configurations can be supported using KW4x
BLE Handover between anchors
- 360° BLE coverage without disconnection
CCC Support
- Secure elements pairing and owner pairing scenarios supported, with Channel Sounding proposed as an extension
Security
- Mitigation of threats due to Channel Sounding advanced security features
Low Power consumption
- Low power and high accuracy distance measurement based on Channel Sounding
Request form for Bluetooth Ranging Vehicle Access Enablement System
The Bluetooth Ranging Vehicle Access Enablement System is presenting various capabilities of KW4x Bluetooth Low Energy (BLE) MCUs powered systems for automotive access use case
Documentation
Quick reference to our documentation types
2 documents
Design Resources
Design Files
Quick reference to our
design files types.
3 design files
-
Printed Circuit Boards and Schematics
KW45B41Z Evaluation Kit Board Schematics
-
Design Files - miscellaneous
KW45B41Z Evaluation Kit Board Design Files
-
Design Files - miscellaneous
KW45B41Z-LOC Rev C2 Manufacturing File
Software
Quick reference to our software types.
4 software files
-
Development IDEs and Build Tools
MCUXpresso Integrated Development Environment (IDE)
-
Software Development Resources
Secure Provisioning SDK (SPSDK)
-
Software Development Resources
Build SDK for KW45B41Z-EVK
-
Software Development Resources
MCUXpresso Secure Provisioning Tool
