BMx7318 Evaluation Board with TPL Communication

EVBMA7318-TPL new

Roll over image to zoom in

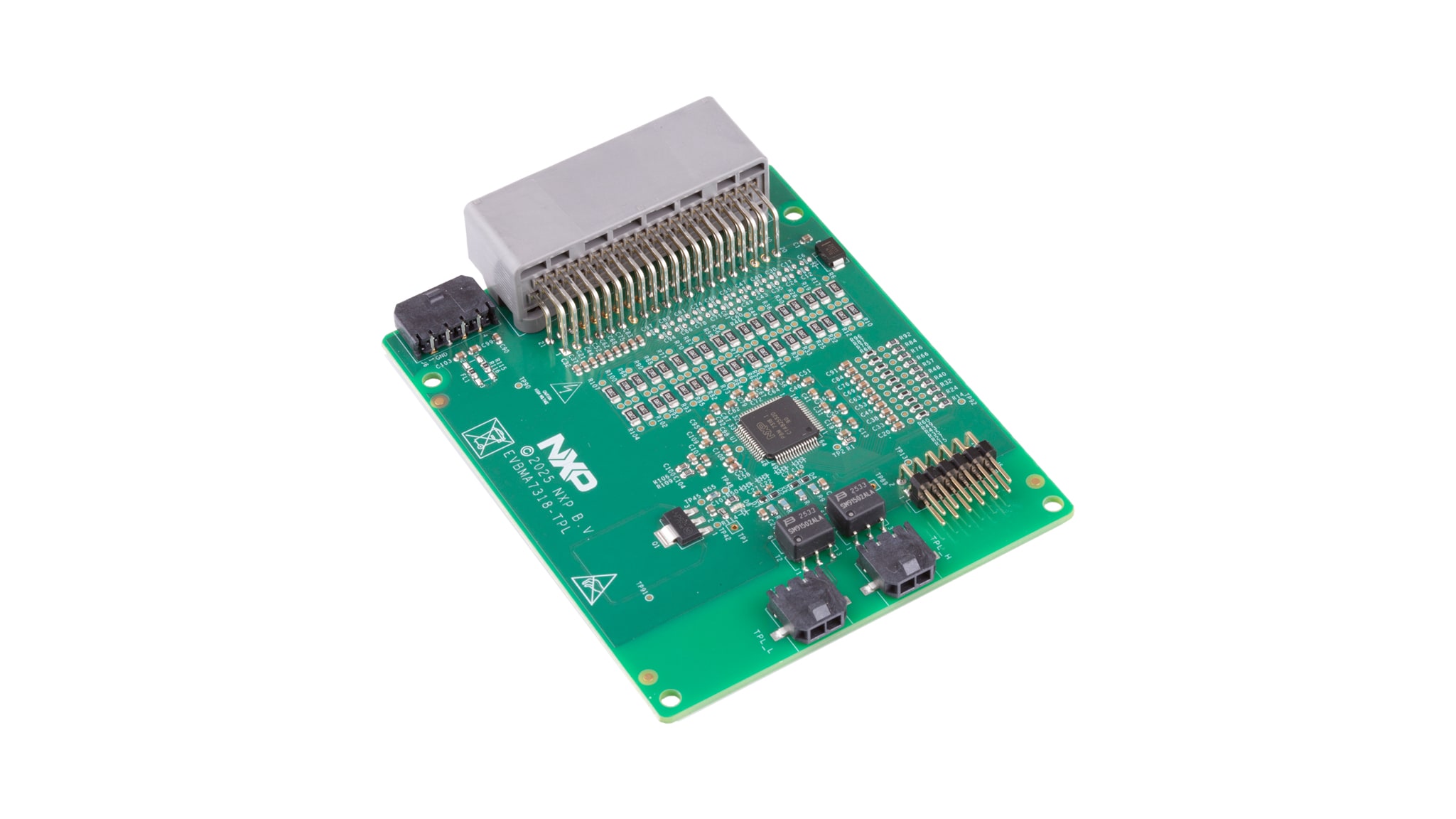

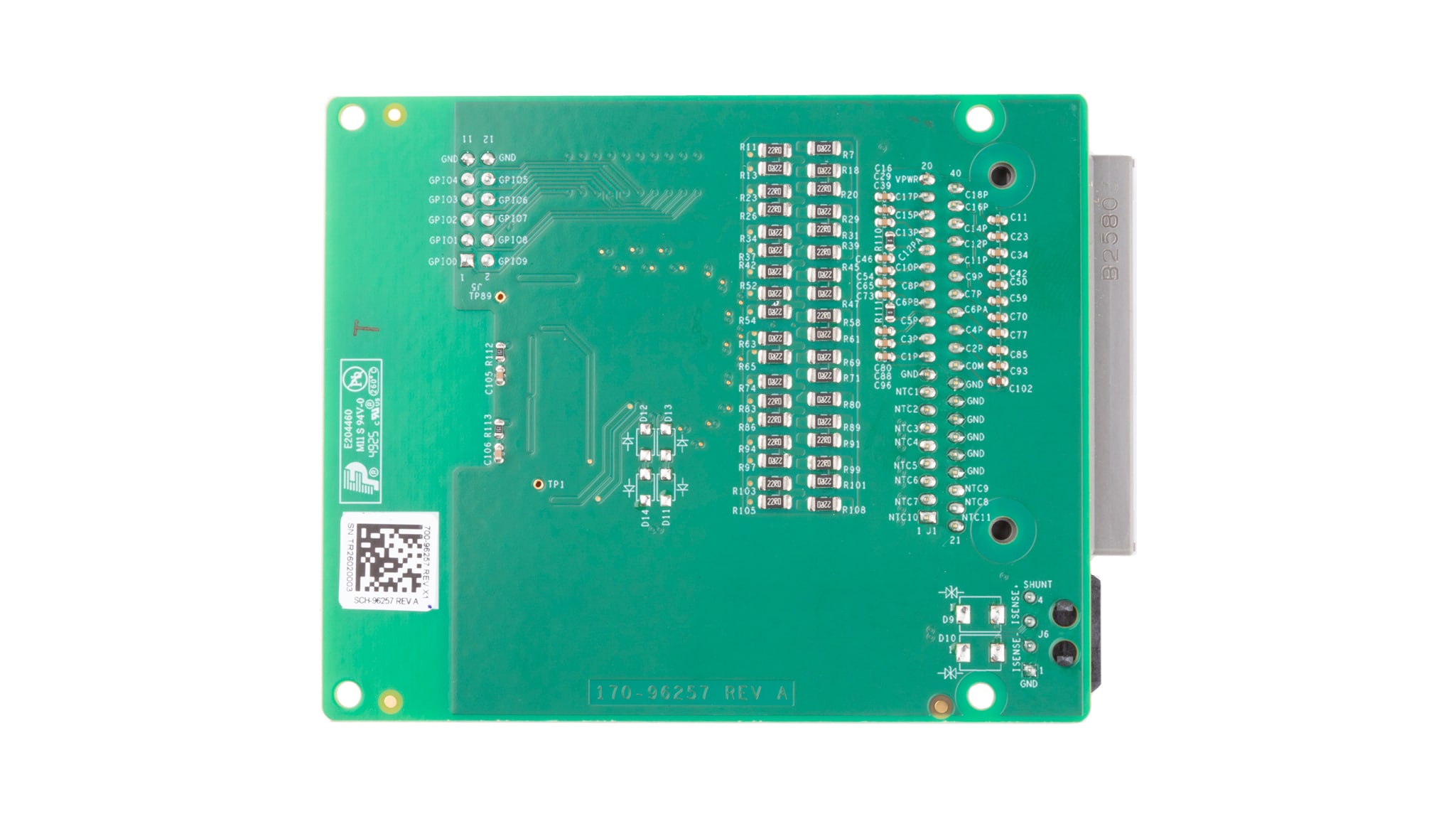

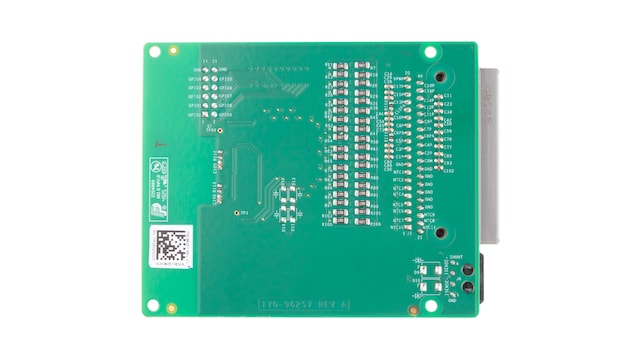

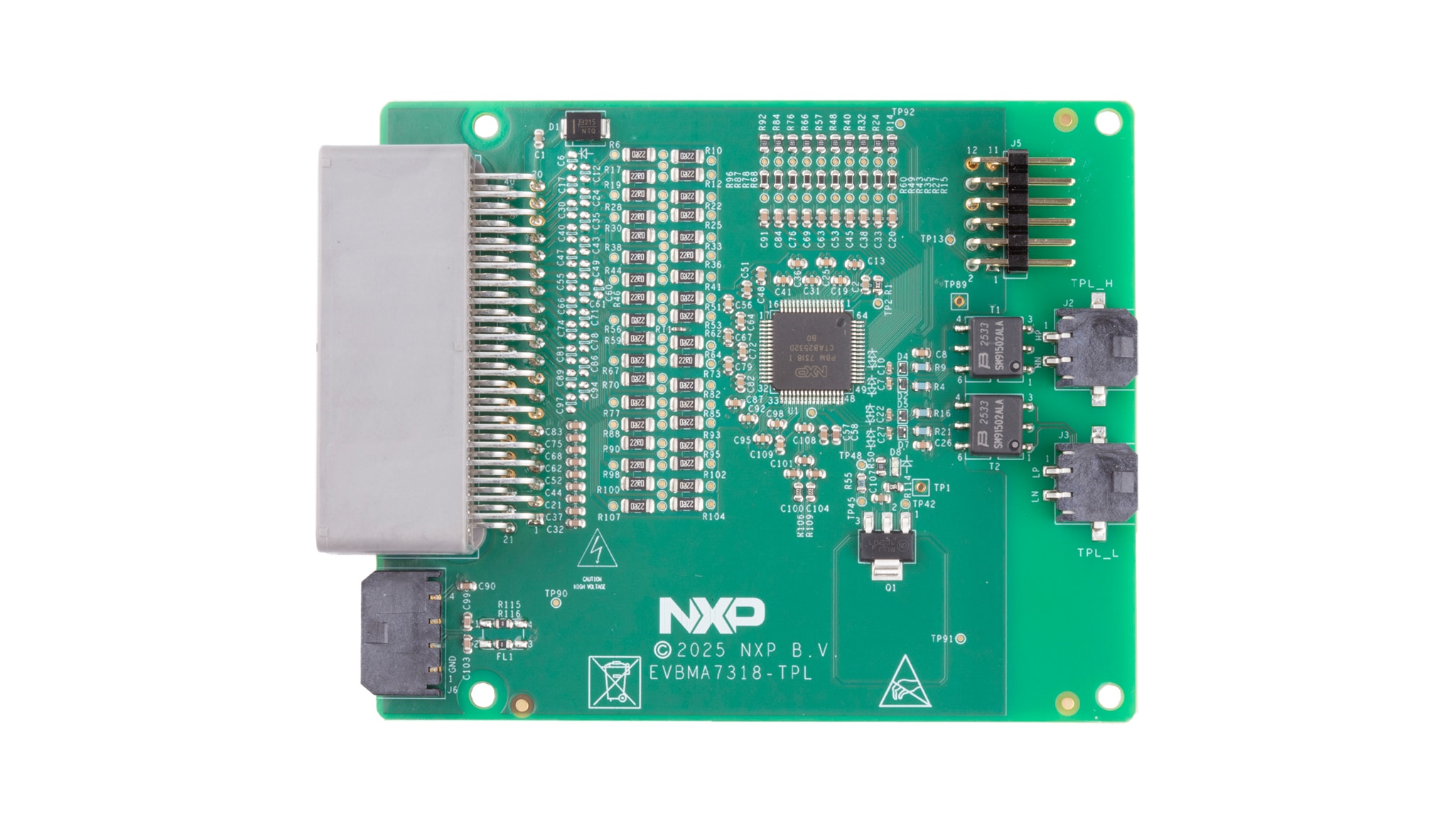

The EVBMA7318-TPL supports a distributed lithium-ion battery management system (BMS) architecture for automotive and industrial applications. The board integrates a single BMA7318 battery cell controller and enables communication with a host controller or PC via Transformer Physical Layer (TPL) or other cell monitoring unit (CMU) boards through TPL with transformer isolation. Each board can measure lithium batteries with 4 to 18 cells and is powered by a 9 volts direct current (VDC) to 90 VDC power source.

Block Diagram

EVBMA7318-TPL

BMA7318-BMI7318-BMA7518 Block Diagram
Get diagram PDF

Supported Devices

Battery Management

Battery Cell Controllers

Features

  • Distributed BMS architecture
  • One BMA7318 per board
  • Voltage measurement for up to 18 lithium-ion battery cells with high accuracy
  • 10 temperature-sensing channels
  • Cell balancing current up to 300 mA
  • Current measurement channel with precision/fast mode
  • TPL isolation communication

Buy Options

EVBMA7318-TPL-Image

Click to expand

EVBMA7318-TPL
Active

BMx7318 Evaluation Board with TPL Communication.

    $312.50 USD
    In Stock :9

    Normally ships 1-2 business days
