Name: Dual Patch Antenna for UWB CH9 Applications
Price: 39.00 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

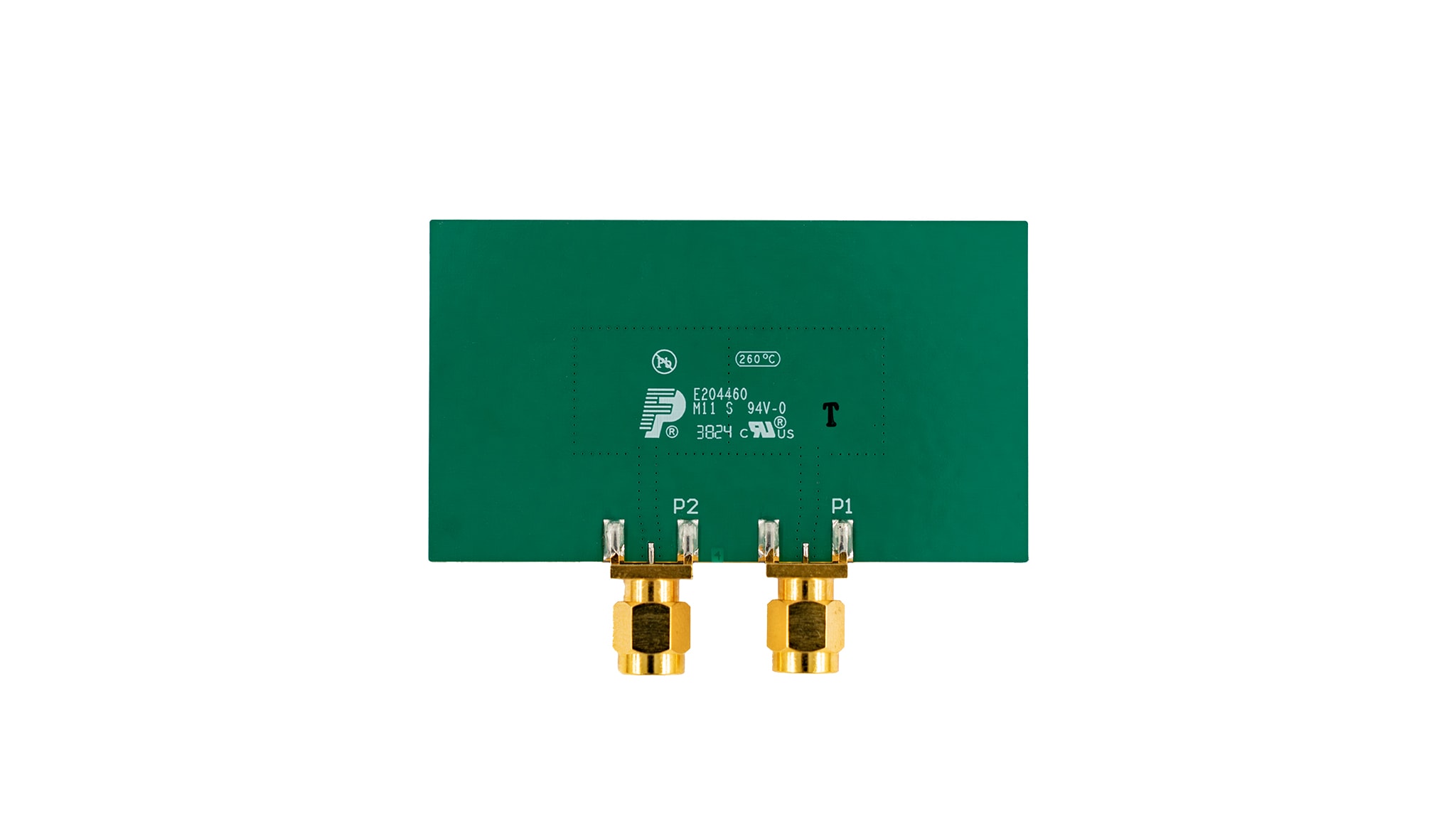

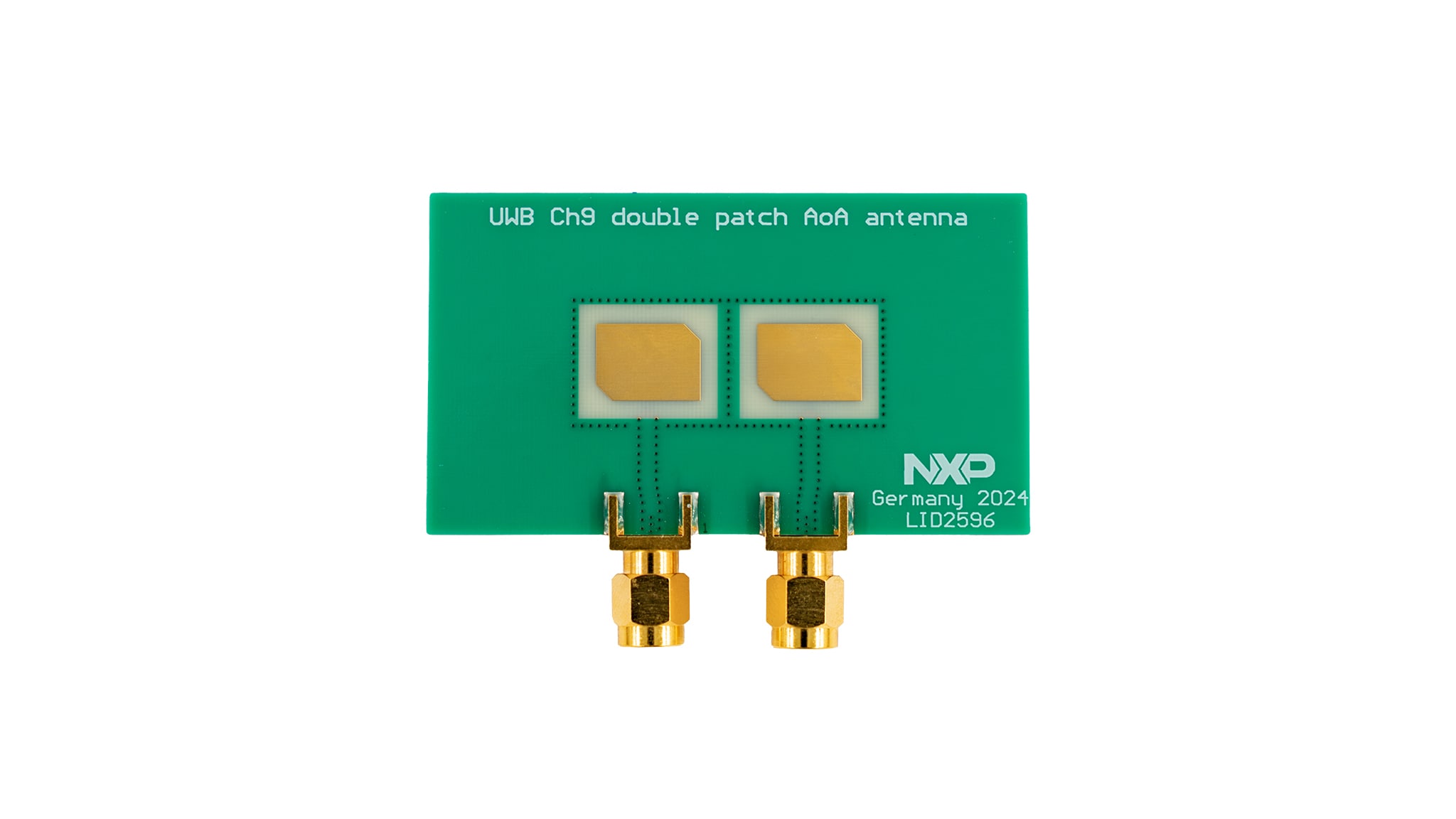

NXP's NCJ29D6 is an UWB device, capable of performing UWB based ranging and radar. This enables automotive use cases, such as smart access and child presence detection. This antenna board helps customers to develop their own ranging or radar application. Due to the two identical antennas combined on one antenna board AoA application are possible.

Design Files

Product Details

Supported Devices

Wireless Connectivity

Trimension^® UWB

NCJ29D6: Trimension^™ NCJ29D6: Secure UWB IC for Automotive Ranging and Radar Applications

Features

NCJ29D6

Ranging, smart access
Radar
Angle of Arrival (AoA)

Antenna

Separate SMA connector for each patch

Connectivity

SMA male

Buy Options

Click to expand

LID2596
Active

Dual Patch Antenna for UWB CH9 Applications.

Kit Contains

Assembled and tested the evaluation board in an antistatic bag
Quick Start Guide

$39.00 USD

In Stock :12

Normally ships 1-2 business days

ADD TO CART
