MCXW236BHN-RDM Radio Device Module (RDM)

MCXW236BHN-RDM
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

Roll over image to zoom in

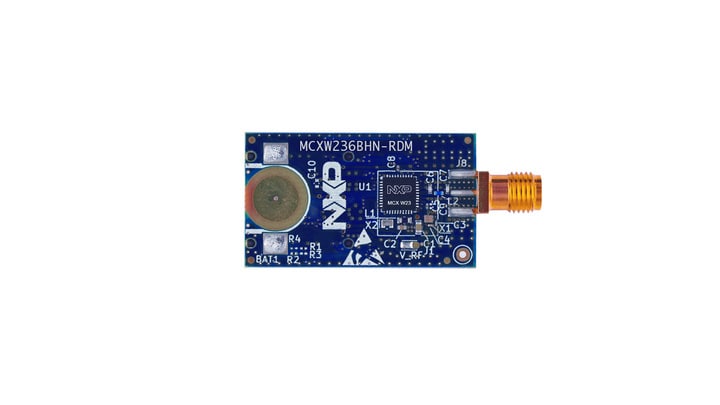

The MCXW236BHN-RDM is a highly configurable, low-power and cost-effective evaluation and development board for application prototyping and demonstration of the MCXW236BHN device. The MCXW236BHN constitutes a highly integrated, single-chip, ultralow-power Bluetooth® Low Energy (LE) 5.3 wireless transceiver with embedded microcontroller and flash, ideal for at IoT applications.

Block Diagram

MCXW236BHN-RDM

MCXW236BHN-RDM Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX W Series Microcontrollers

  • MCX-W23: MCX W23: Ultra-Low Power Bluetooth® Low Energy Solution With Arm® Cortex® M33 TrustZone® for IoT

Features

Highlights

  • NXP's ultralow-power MCXW236BHN Wireless microcontroller unit (MCU) supporting Bluetooth LE
  • Fully compliant with Bluetooth 5.3 LE
  • 32 MHz reference oscillator for radio frequency (RF) operation
  • 32.768 kHz reference oscillator used for low power operation

Reference Design with Small-footprint, Low-cost RF Node

  • Single-ended input/output port
    • Low count of external components
    • Maximum output power can reach up to +6dBm at the SubMiniature version A (SMA) connector

Selectable Power Source

  • Configuration is done through solder jumpers
  • DC/DC converter
  • MCXW236BHN: buck capability for operation on the 3.0 V battery

Flexible RF Transmitter Level Configuration

  • TX Mode 1 (TXM1): Range from -31 dBm to +2 dBm when VDD_RF exceeds 1.1 V (default-configured mode)
  • TX Mode 2 (TXM2): Range from -28 dBm to +6 dBm when VDD_RF exceeds 1.7 V

Package

  • The MCXW236BHN-RDM comes in the HVQFN40 package
  • PCB Marking: MCXW236BHN-RDM
  • A 2-layer printed circuit board (PCB) with through-hole (TH) vias only
  • PCB color: Blue
