MCXW23 EVK Development Kit

MCXW23-EVK
Active

Roll over image to zoom in

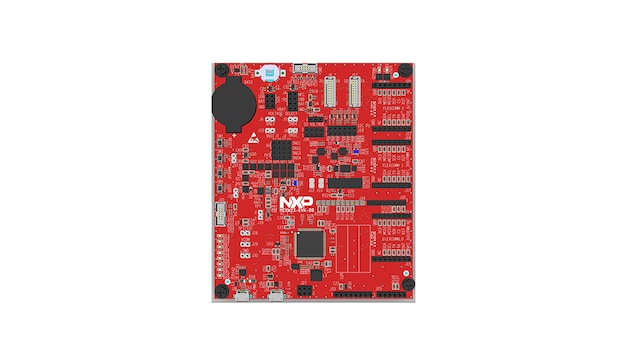

The MCXW23-EVK is a development kit featuring MCX W23 Bluetooth Low Energy (LE) MCU, designed for applications such as portable medical devices, home appliance and automation and asset tracking.

Block Diagram

MCXW23-EVK

MCXW23-EVK-BD
Get diagram PDF

Supported Devices

Sensors

Magnetic Sensors

  • NMH1000: NMH1000 Ultra-Low Power and Low-Voltage Magnetic Switch

Barometric Pressure 15 to 150 kPa

  • MPL3115A2: Absolute Digital Pressure Sensor (20 to 110 kPa)

Accelerometers

  • FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

Processors and Microcontrollers

MCX W Series Microcontrollers

  • MCX-W23: MCX W23: Ultra-Low Power Bluetooth® Low Energy Solution With Arm® Cortex® M33 TrustZone® for IoT

Features

Connectivity

  • FlexComm
  • UART
  • SPI
  • I²C
  • mikroBUS socket connectors
  • SMA antenna connector

User Interface

  • Four push buttons – Wake-up, Reset, ISP and User
  • Onboard sensors
  • Multiple battery holders

MCU-Link Pro

  • SWO profiling and I/O features
  • Multiple LEDs for diagnosis
  • HS-USB host interface
  • Current measurement with two ranges: 0 mA to 1 mA and 0 mA to 50 mA

Buy Options

MCXW23-EVK-Image

Click to expand

MCXW23-EVK
Active

MCXW23 EVK Development Kit.

    $412.00 USD
    In Stock :9

    Normally ships 1-2 business days
