MCXW236BUK-RDM Radio Device Module
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

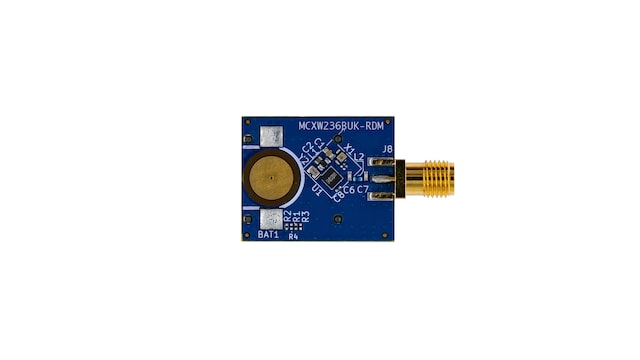

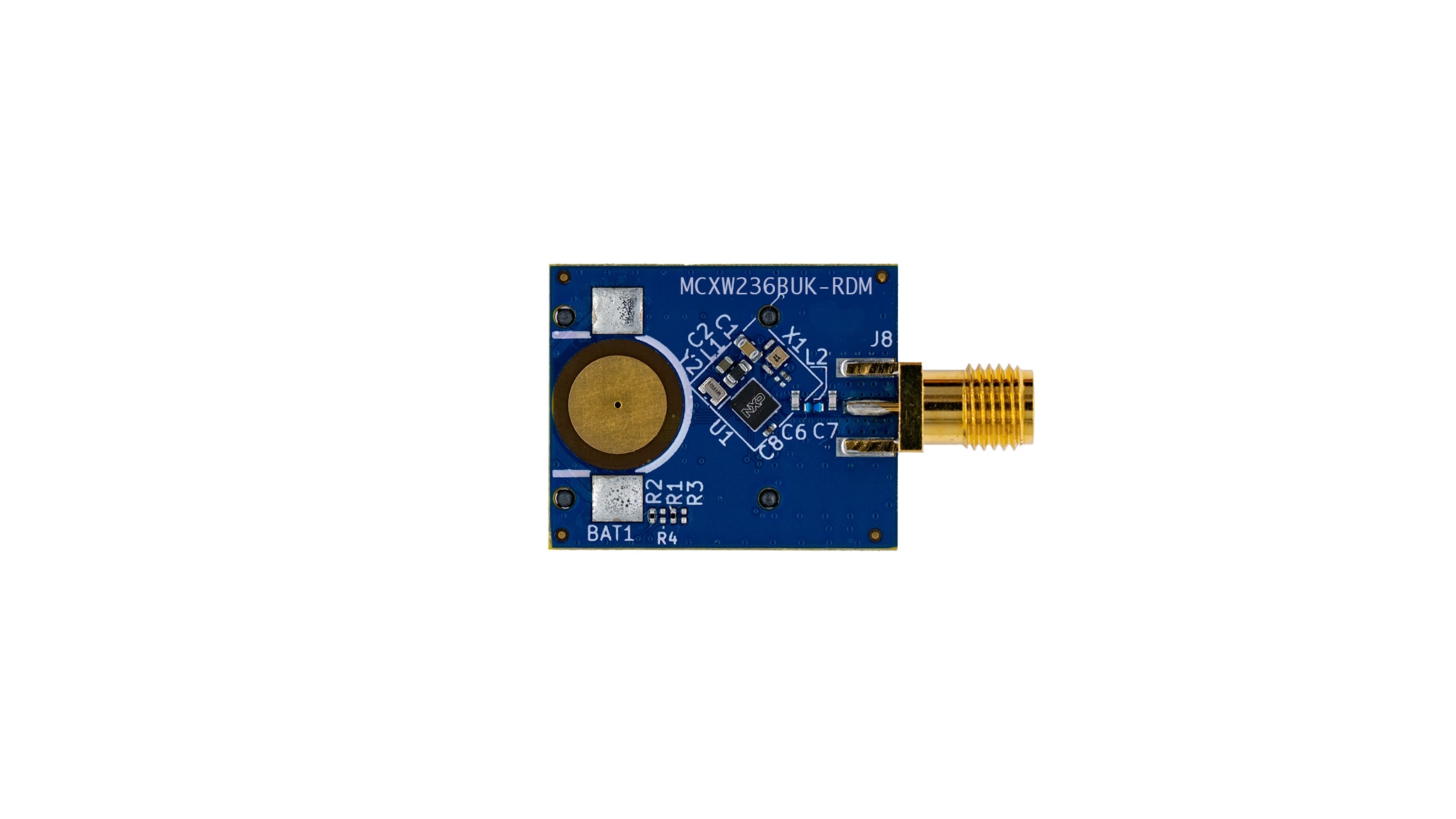

The MCXW236BUK-RDM is a highly configurable, low-power and cost-effective evaluation and development board for application prototyping and demonstration of the MCXW236BUK device.
Product Details
Supported Devices
Processors and Microcontrollers
MCX W Series Microcontrollers
- MCX-W23: MCX W23: Ultra-Low Power Bluetooth® Low Energy Solution With Arm® Cortex® M33 TrustZone® for IoT
Features
Connectivity
- NXP's ultra-low-power MCXW236BUK Wireless microcontroller unit (MCU) supporting Bluetooth LE
- Fully compliant with Bluetooth 5.3 LE
Reference Design with Small-Footprint, Low-Cost RF Node
- Single-ended input/output port
- Low-count of external components
- Maximum output power can reach up to +6 dBm at the SubMiniature version A (SMA) connector
Selectable Power Source
- Configuration is done through solder jumpers
- DC/DC converter
- MCXW236BUK: buck capability for operation on the 3.0 V battery
- 32 MHz reference oscillator for radio frequency (RF) operation
- 32.768 kHz reference oscillator used for low power operation
Flexible RF Transmitter Level Configuration
- TX Mode 1 (TXM1): Range from -31 dBm to +2 dBm when VDD_RF exceeds 1.1 V (default-configured mode)
- X Mode 2 (TXM2): Range from -28 dBm to +6 dBm when VDD_RF exceeds 1.7 V
Packaging
- Printed circuit board (PCB) Marking: MCXW236BUK-RDM
- A 4-layer PCB with micro and blind vias
- PCB Color: Blue
