Name: Mobile Robotics Buggy3 Kit Including RDDRONEFMUK66 and Peripherals
Price: 350.00 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

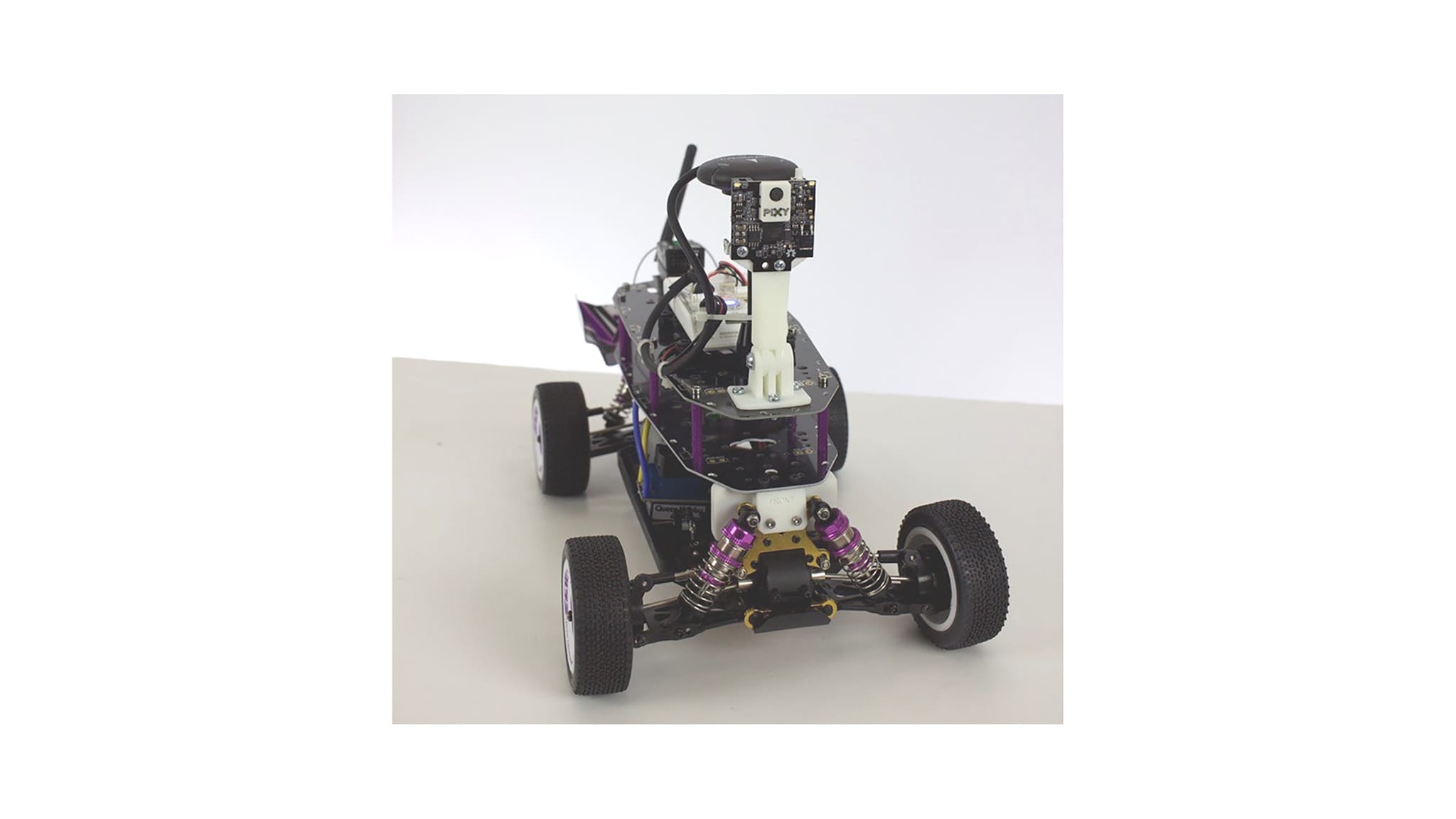

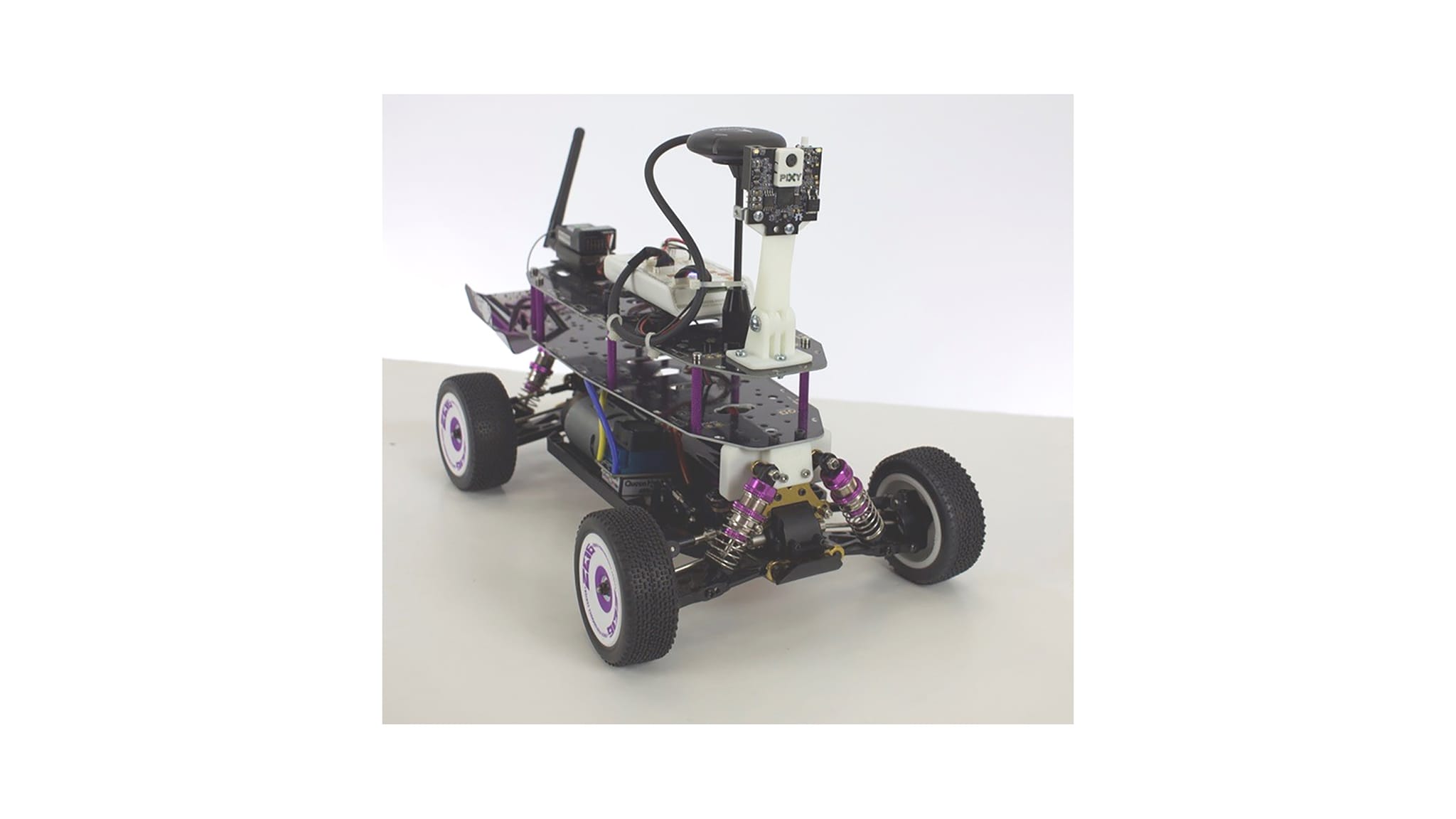

The MR-BUGGY3 kit provides the mechanical and other components needed to build a small robotic Buggy and evaluate the RDDRONE-FMUK66. The platform includes a brushed motor controller and RC Remote, as well as a robust mechanical platform offering two layers to support expansion with other electronics and Mobile Robotics board solutions.

This developer kit may be used as part of HoverGames/RoverGames, and contains the components needed for these coding challenges. Note that this is a professional developer kit, and as shipped is not a complete functional system. It includes no NXP software, the flight management unit (FMU) is supported by the mainline branch of the business-friendly open source PX4.org vehicle stack. A separate suitable hobby-type Li-Po battery and country-specific telemetry radio will be required for a complete working system.

When assembled the frame has appropriate additional space to mount other components such as UCANS32K146, UCABS32K1SIC, RDDRONE-T1ADAPT, NXP FRDM boards. A companion computer such as NavQPlus based on i.MX 8M plus, or i.MX 8M Mini can be used as a vision processor running Linux and ROS/ROS2. The rover development platform is very flexible, fully open for development of robotics, control algorithms, security, networking and communications protocols, and can include another add-on component, companion computer, software or associated solutions.

Design Files

Product Details

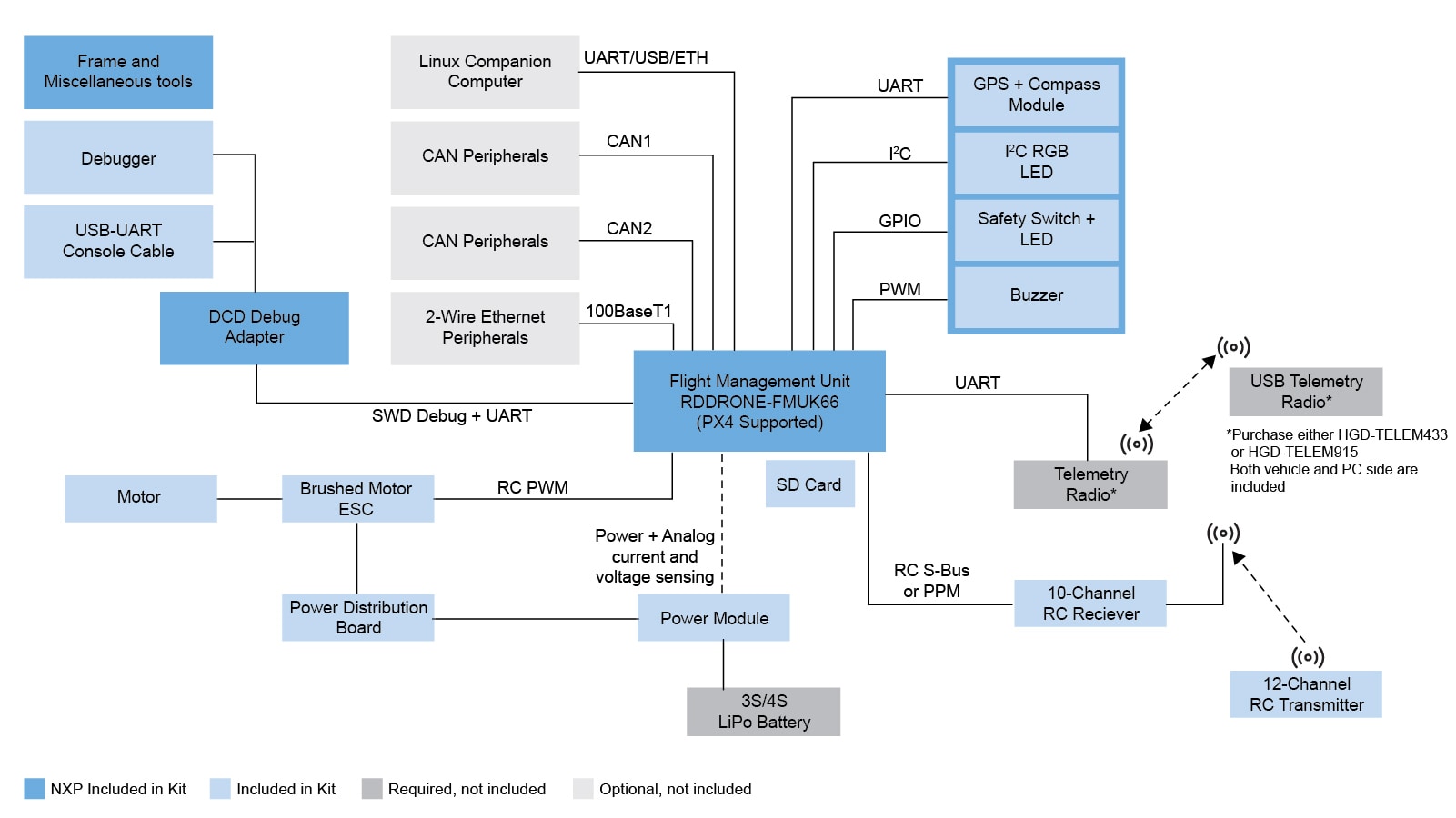

Block Diagram

MR-BUGGY3 Block Diagram

Get diagram PDF

Supported Devices

Analog and Mixed Signal

Voltage Level Translators

NTB0104: Dual-Supply Translating Transceiver (Auto-Direction Sensing, Three-State)

Interfaces

3.3 V / 5 V IO CAN Transceivers

TJA1042: High-Speed CAN Transceiver with Standby Mode

Automotive Ethernet PHYs

TJA1100: TJA1100, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

Sensors

Barometric Pressure 15 to 150 kPa

MPL3115A2: Absolute Digital Pressure Sensor (20 to 110 kPa)

Processors and Microcontrollers

K6x Ethernet

K66_180: Kinetis® K66-180 MHz, Dual High-Speed and Full-speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Buy Options

Click to expand

MR-BUGGY3-MIN
Active

Mobile Robotics Buggy3 Kit Including RDDRONE-FMUK66 and Peripherals.

Kit Contains

To support HoverGames participants that may want to repurpose their drone components to be used in the buggy, we are offering a minimum kit.

This is the same as MR-BUGGY3-KIT with the following parts removed:

Not Included

RDDRONE-FMUK66
RC Remote control
GPS module
Some of the miscellaneous cables supporting the above components

$350.00 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MCU-LINK-MR
Active

MCU-LINK-MR Debug Probe.

$19.00 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Click to expand

MR-B3RB-M
Active

Mobile Robotics Buggy3 Kit Including RDDRONE-FMUK66 and Peripherals.

Kit Contains

Real time controller: MR-CANHUBK344
2D lidar
DC-to-DC power input module
GPS: GPS NEO-M8N module with mount, Safety switch, Buzzer and bright RGB status LED
Debugger: SEGGER J-Link EDU Mini / FTDi USB-TTL-3V3 cable / Debug breakout board with cable
RC Remote control CAR with BLDC motor
RC remote control: Touchscreen FS-i6S transmitter and FS-iA6B 10 channel RC receiver with IBUS
Miscellaneous cables, screws and tools

Not Included

Battery [3S 2000-5000mAh XT60 LiPo]

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Click to expand

MR-BUGGY3-KIT
No Longer Manufactured

Mobile Robotics Buggy3 Kit Including RDDRONE-FMUK66 and Peripherals.

Kit Contains

Flight Management Unit: RDDRONE-FMUK66 FMU
- DC-to-DC power module
- GPS: GPS NEO-M8N module with mount, Safety switch, Buzzer and bright RGB status LED
- Debugger: SEGGER J-Link EDU Mini / FTDi USB-TTL-3V3 cable / Debug breakout board with cable
- Plastic enclosure and sticker
RC Remote control CAR with Brushed DC motor
Replacement Brushed motor controller and RC servo
RC remote control: Touchscreen FS-i6S transmitter and FS-iA6B 10 channel RC receiver with IBUS
Miscellaneous cables, screws and tools

Not Included

Telemetry radio purchased separately and is dependent on your country regulations, HGD-TELEM433 (EU), or HGD-TELEM915 (USA)
Battery not included
2S 2000-5000 mAh XT60 LiPo (A very basic USB battery charger is included, which you you may wish to upgrade)

Distributor	Region	Inventory	Inventory Date	Order

Documentation

Quick reference to our documentation types

2 documents

Compact List

HoverGames Drone - User Guide and Technical Reference[HOVER-GAMES-LINK]

EXTERNALNov 9, 2018Rev 1.0

MR-Buggy3 Build Guide - Gitbook[MR-BUGGY3-BUILD-GUIDE-UM]

URLFeb 4, 2022Rev 0

Design Resources

Design Files

Quick reference to our design files types.

4 design files

Printed Circuit Boards and Schematics
RDDRONE-FMUK66 Gerber Files

ZIPRev DJul 30, 2019 16:33:001.62 MBRDDRONE-FMUK66-GRBR

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
MR-BUGGY Kit Design Files

ZIPRev 0Apr 28, 2022 15:43:005.03 MBMR-BUGGY-KIT-DESIGN-FILES
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
BOM file for RDDRONE-FMUK66

RTFRev AMay 22, 2019 16:50:0099.36 KBPKL-RDDRONE-FMUK66-A-ROR-10416

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
MR-BUGGY Min Design Files

ZIPRev 0Apr 28, 2022 15:43:003.34 MBMR-BUGGY-MIN-DESIGN-FILES
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
