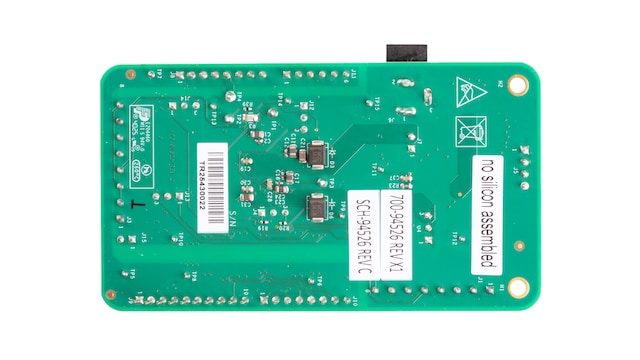

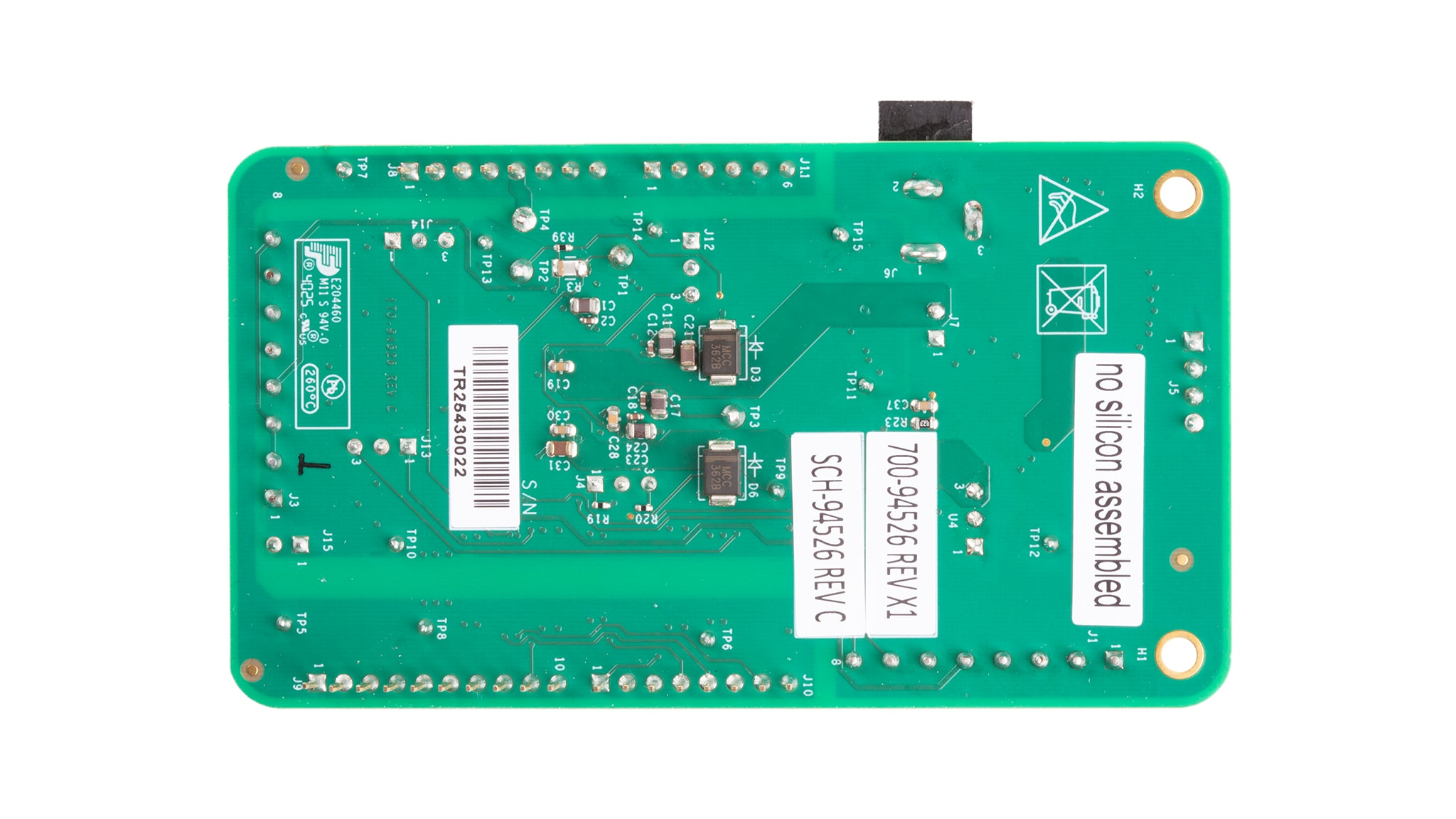

NAFE33352-UIOM Universal AIO AFE Arduino® Shield Evaluation Board

NAFE33352-UIOM
Active
Expansion Board

Click image to open expanded view

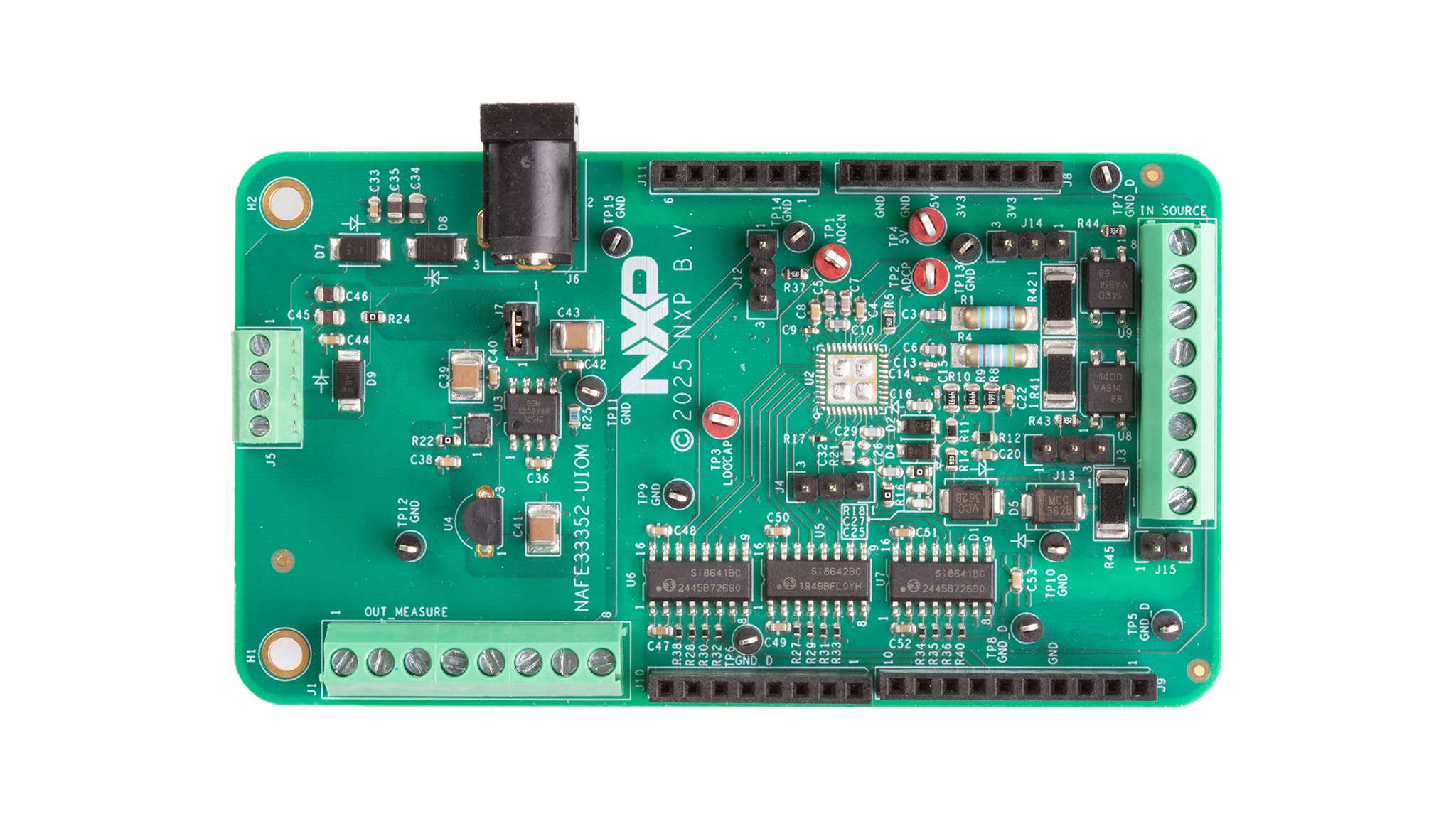

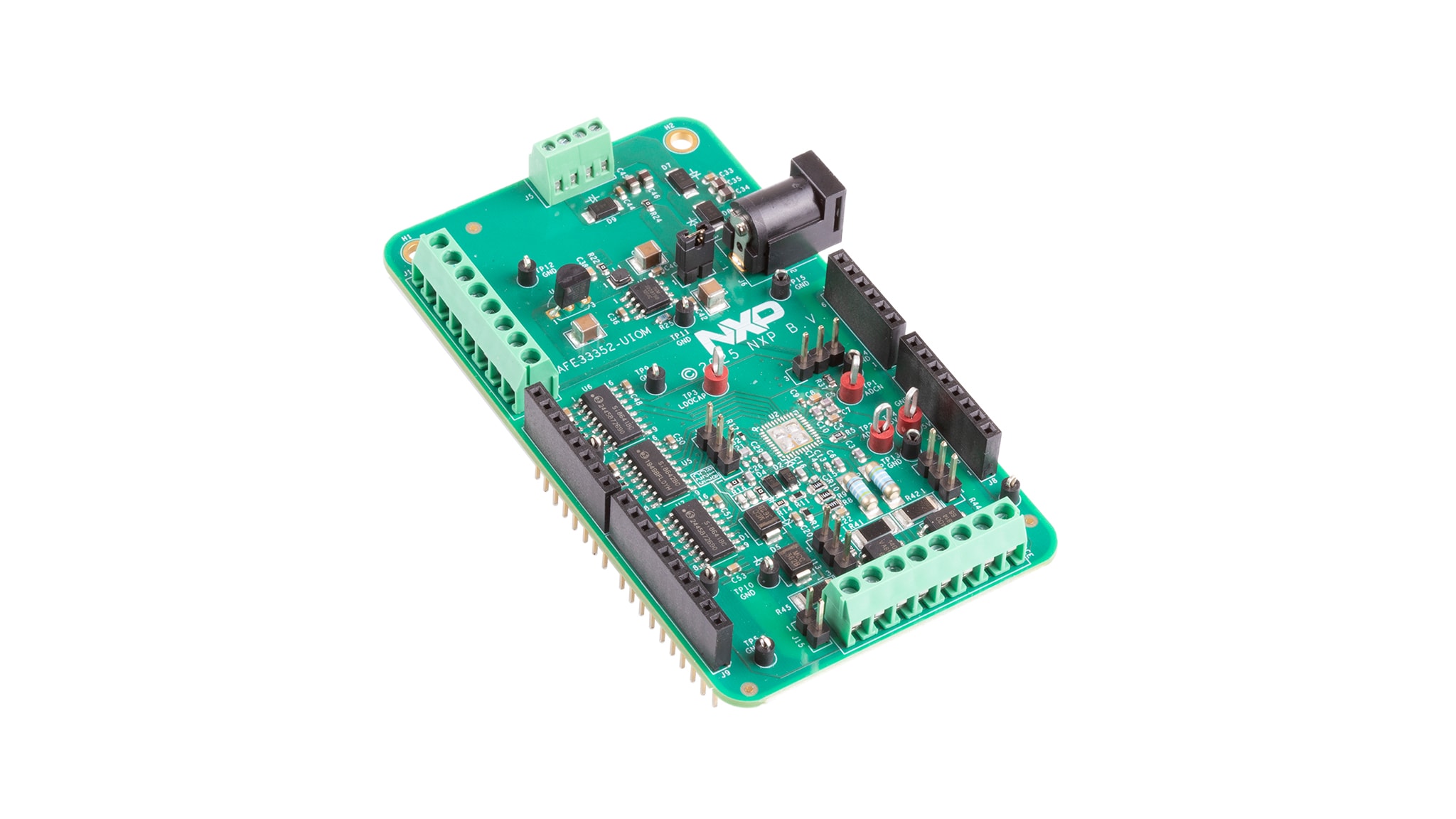

The NAFE33352-UIOM universal analog input/output (AIO) analog front end (AFE) Arduino shield board is easy to test and designed for the NAFE33352, which is a highly configurable, industrial-grade universal AIO AFE. This Arduino shield board enables compact hardware design and enhanced software configurability with universal Open-Cortex Microcontroller Software Interface Standard (CMSIS) driver packs.

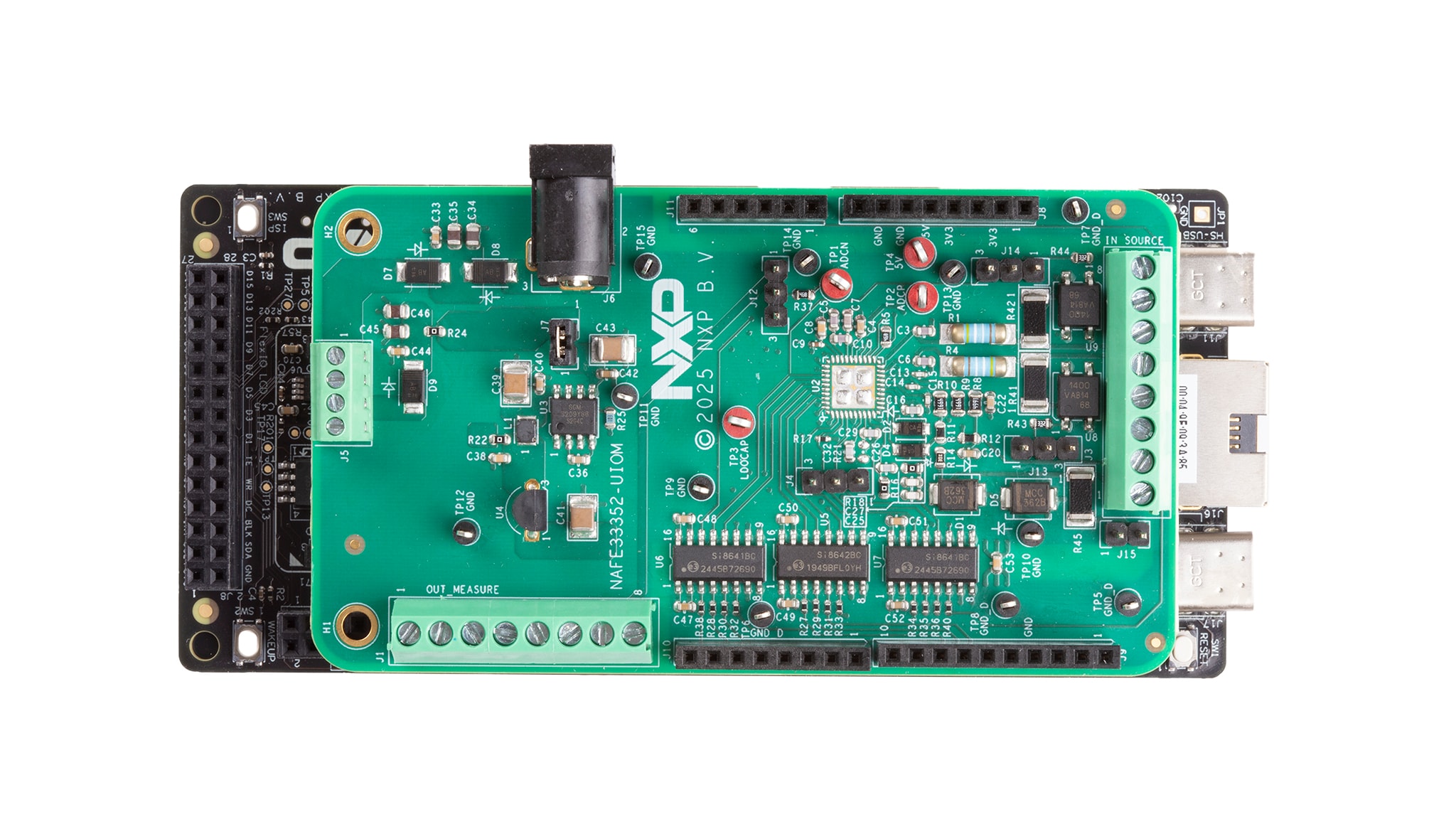

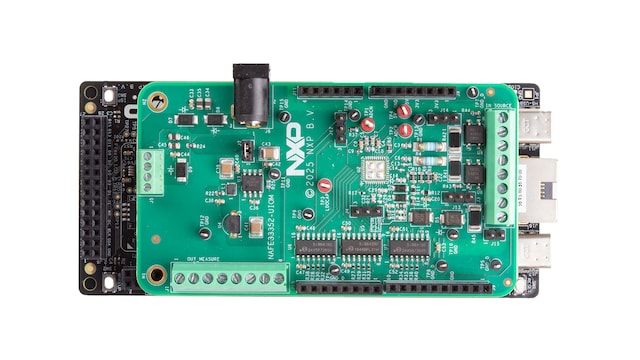

The shield board supports quick evaluation and plug-and-play compatibility with NXP microcontroller (MCU)—boards MCX-N and low pin count (LPC)—having an Arduino connector. Users can quickly generate analog output (voltage/currents) and perform voltage, current and temperature measurements—resistance temperature detector (RTD) and thermocouple—to reduce the development time of the final application.

Block Diagram

NAFE33352-UIOM

NAFE33352-UIOM Block Diagram
Get diagram PDF

Supported Devices

Analog and Mixed Signal

Analog Front End

  • NAFEx3352: Software Configurable Input and Output Analog Front End Family

Features

Software-Configurable Analog I/O

  • Two universal inputs
  • Digital-to-analog converter (DAC): 14‑ / 16‑ / 18‑bit options, 0 ksps to 100 ksps / 200 ksps for (low-power/high-speed)
  • Analog-to-digital converter (ADC): 16-/24-bit options, 7.5 sps to 288 ksps / 576 ksps for (low-power/high-speed)
  • ±36 V protected I/O (external transient‑voltage suppressor required for output)
  • Short‑circuit protection on both I/O

Board Highlights

  • Compact design: 90 mm X 50 mm size with Arduino connector
  • -40 °C to 125 °C temperature range
  • Easy-to-use evaluation platform with graphical user interface (GUI)
  • Electromagnetic compatibly (EMC)-compliant and ready-to-use complete hardware design

Channel Configurations

  • Ranges: ±12.5 V, ±25 mA, 1 mΩ to 1 MΩ I/O
  • Factory calibration or user‑calibration options

Accuracy

  • ±0.01% accuracy at room temperature
  • ±0.08% accuracy over temperature (after room temperature calibration)

Buy Options

NAFE33352-UIOM-Image

Click to expand

NAFE33352-UIOM
Active

NAFE33352-UIOM Universal AIO AFE Arduino® Shield Evaluation Board.

  • Expansion Board: Yes
  • Peripherals: SPI
  • Connector Type: Arduino UNO
  • Power Management: 15 V Input Supply
$49.00 USD
In Stock :92

Normally ships 1-2 business days

ADD TO CART
Order from distributors
