Evaluation Kit - 33812, Ignition and Injector Driver

KIT33812EKEVBE Active

Roll over image to zoom in

This evaluation kit supports the NXP® MC33812, an engine control analog power IC intended for motorcycle and other single/dual cylinder small engine control applications.

  • The IC consists of three integrated low side drivers, one pre-driver, a +5.0 V, voltage pre-regulator, an MCU watchdog circuit, an ISO 9141 K-Line interface, and a parallel interface for MCU communication
  • Three low side drivers are provided for driving a fuel injector, a lamp or LED, and a relay or other load
  • The pre-driver is intended to drive either an Insulated Gate Bipolar Transistor (IGBT) or a bipolar Darlington transistor to control an ignition coil
  • This evaluation kit may be used with the KITUSBSPIDGLEVME.

Product Details

Supported Devices

Power Management

Pre-Drivers

  • MC33812: Multifunctional Ignition and Injector Driver

Features

Key Features

  • Fuel Injector driver - Current Limit - 4.0 A Typical
  • Ignition pre-driver can drive IGBT or Darlington bipolar junction transistors
  • Ignition pre-driver has independent high and low side outputs
  • Relay driver - Current Limit - 4.0 A Typical
  • Lamp driver- Current Limit - 1.5 A Typical
  • Ignition and other drivers protected against over-temperature
  • Interfaces directly to MCU using 5.0 V parallel interface
  • MCU Power On RESET generator
  • MCU watchdog timer circuit with parallel refresh/time setting line
  • Independent fault annunciation outputs for ignition and injection
  • ISO-9141 K-Line transceiver for communicating diagnostic messages

Power Management

  • Designed to operate over the range of ~4.7 V = VPWR = 36 V
  • VCC voltage preregulator provides +5.0 V power for the MCU
  • All external outputs protected against short to battery, over-current

Buy Options

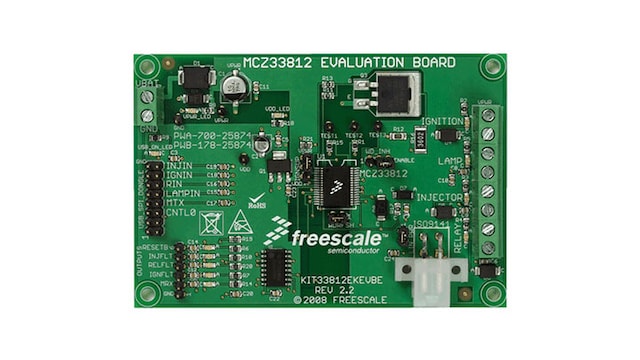

KIT33812EKEVBE-Image

Click to expand

  • KIT33812EKEVBE
    Active

  • Evaluation Kit - MC33812, Multifunctional Ignition and Injector Driver.

    • KIT33812EKEVBE Hardware
    • Cable, Flat ribbon
    • Quick Reference Guide
  • $107.64 USD
  • For a quantity of 1
    • Availability: Pending Stock
