Name: Evaluation Kit for PF3000/1 Power Management Integrated Circuit
Price: 69.00 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Design Center
Development Boards and Designs
Analog Toolbox
KITPF3000FRDMEVM | PF3000/1 | Power Management

Roll over image to zoom in

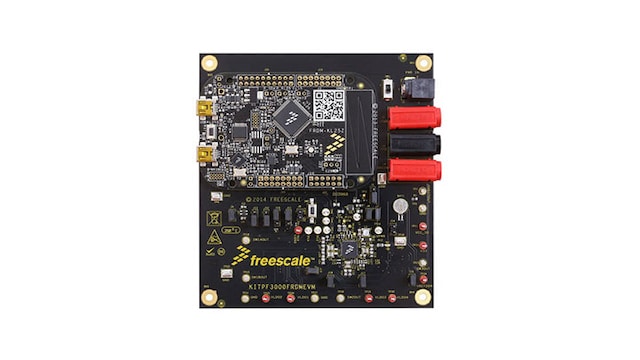

The KITPF3000FRDMEVM Evaluation Board (EVB) is an easy-to-use circuit board allowing the user to exercise all the functions of the PF3000 or PF3001 Power Management IC’s (PMIC). The EVB integrates the popular KL25Z FRDM Board. The FRDM Board is used as an interface between the GUI and the PF3000. Analog-to-Digital Converters (ADCs) in the KL25Z FRDM Board are used to monitor the regulator voltages through the GUI.

Design Files

Software

Product Details

Supported Devices

Power Management

5 V PMIC Solutions

PF3000: 12-Channel Configurable PMIC for i.MX6 and i.MX7 Application Processors
PF3001: 10-Channel Configurable PMIC for i.MX6 and i.MX7 Application Processors

Processors and Microcontrollers

i.MX 6 Processors

i.MX6UL: i.MX 6UltraLite Processor - Low-Power, Secure, Arm^® Cortex^®-A7 Core

KL Series Arm Cortex-M0+

KL2x: Kinetis^® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core

Features

General Specifications

Integrated KL25Z FRDM Board for monitoring and control through PC
Two 1 Amp E-Loads with configurable current

Power Management

PF3000 Power Management IC
Input supply using wall adapter or lab power supply through banana jacks

Buy Options

Click to expand

KITPF3000FRDMEVM
Active

Evaluation Kit - PF3000 Power Management Integrated Circuit.

Kit Contains

KITPF3000FRDMEVM Hardware
FRDM-KL25Z Hardware (Pre-Programmed)
Cable, USB A-M to B-M mini
Quick Reference Guide

$69.00 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
