Name: PF3000 Programming Board
Price: 188.29 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

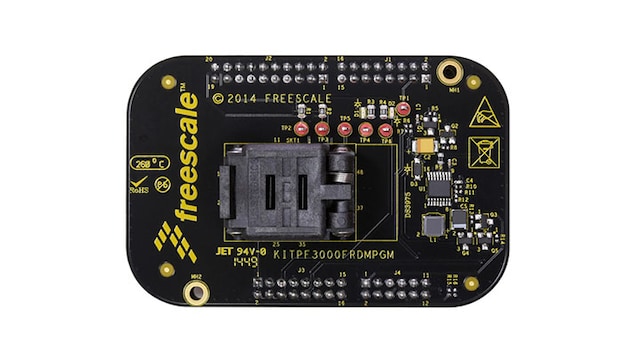

The KITPF3000FRDMPGM Programming Board is an easy-to-use circuit board allowing the user to program the PF3000 Power Management IC. The programming board integrates the popular KL25Z FRDM Board. The FRDM Board is used as an interface between the GUI and the PF3000. Analog-to-Digital Convertors (ADCs) in the KL25Z FRDM Board are used to monitor the regulator voltages through the GUI.

Design Files

Software

Product Details

Supported Devices

Power Management

5 V PMIC Solutions

PF3000: 12-Channel Configurable PMIC for i.MX6 and i.MX7 Application Processors

Processors and Microcontrollers

i.MX 6 Processors

i.MX6UL: i.MX 6UltraLite Processor - Low-Power, Secure, Arm^® Cortex^®-A7 Core

KL Series Arm Cortex-M0+

KL2x: Kinetis^® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core

Features

Power Management

Socket for PF3000 Power Management IC

General Specifications

Integrated KL25Z FRDM Board for monitoring and control through PC

User Components

Green LED to indicate power good
Red LED to indicate programming

Buy Options

Click to expand

KITPF3000FRDMPGM
Active

Evaluation Kit - PF3000 Programmer board.

Kit Contains

KITPF3000FRDMPGM Hardware
FRDM-KL25Z Hardware (Pre-Programmed)
Cable, USB A-M to B-M mini
Quick Reference Guide

$188.29 USD

Pending Stock

ADD TO CART
