Development Board for MC56F80xxx Digital Signal Controllers

MC56F80000-EVK Active

Roll over image to zoom in

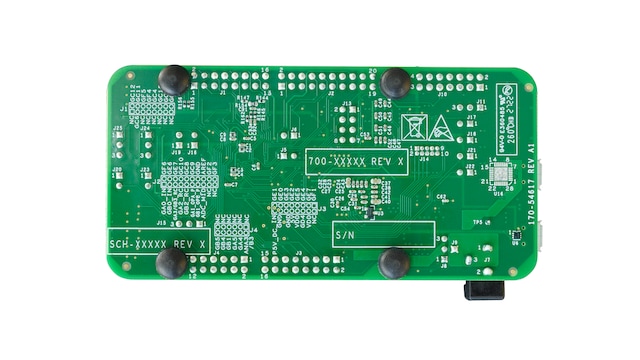

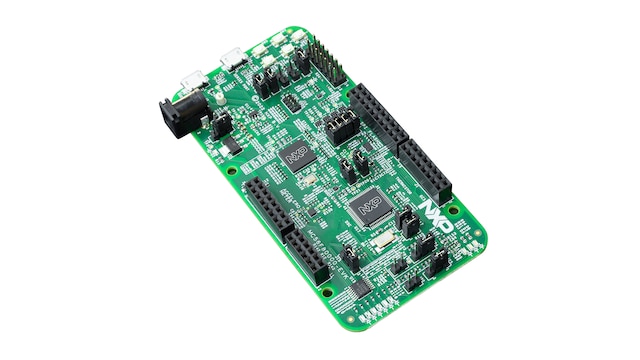

The MC56F80000-EVK is an ultra-low-cost development platform for digital signal controller MC56F80xxx MCU and is form-factor compatible with the Arduino™ R3 pin layout.

The platform features on board OpenSDA circuit enabling, debugging and programming with CodeWarrior and on board OpenSDA circuit enabling a virtual series port.

Peripherals enable rapid prototyping, including a 3-axis MEMS accelerometer, 6 PWM and 3 user LEDs, 4 user push buttons for direct interaction, two OPAMP external feedback circuits, a SPI interfaced Flash memory and 3 resistor dividers for ADC test.

Product Details

Supported Devices

Processors and Microcontrollers

32-Bit 56800EX/EF Core

  • MC56F80xxx: DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder

Features

Microcontroller

  • MC56F80748
  • DSP56800EF core @100 MHz with eFPU and CORDIC
  • 64 kB flash, 8 kB data/program RAM
  • 2 x 12-bit ADCs
  • 3 x Comparators
  • 2 x operational amplifiers, programmable gain up to x16
  • One high-resolution eFlexPWM with up to 12 PWM outputs, including 8 channels with 312 ps resolution NanoEdge placement
  • One 16-bit quad timer (1 x 4Ch)
  • One enhanced quadrature decoder (eQDC)
  • Crossbar
  • 64 LQFP

Power Management

  • OpenSDA USB
  • Virtual serial port USB
  • External 5 V adapter
  • External 5 V input from Arduino connector

Connectivity

  • USB interface with micro-AB USB connector
  • Virtual serial port
  • Easy access to MCU input/output through Arduino R3 compatible I/O connectors

Sensors

  • 3-axis MEMS accelerometer FXLS8974CF

Debug Capabilities

  • On-board OpenSDA circuit that supports programming and debugging with CodeWarrior
  • 14-pin JTAG port to connect with standalone programmer

Additional Support

  • Eclipse IDE - CodeWarrior for MCUs
  • MCUXpresso Config Tools: A graphic tool to configure peripherals and provide stationeries within CodeWarrior software development kit (SDK)

Buy Options

MC56F80000-EVK-Image

Click to expand

  • MC56F80000-EVK
    Active

  • Development Board for MC56F80xxx Digital Signal Controllers.

  • $49.99 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
