KV46 Digital LLC Converter Reference Design

LLC-RESONANT-CONVERTER

Roll over image to zoom in

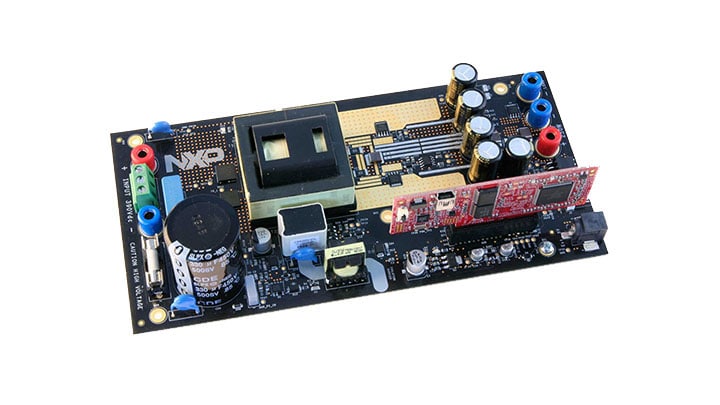

This provides a fully digital design of an LLC resonant converter based on HVP-LLC. The HVP-LLC development board is an integral part of NXP® high-voltage platform.

In combination with HVP-KV46F150 controller card, it provides a ready-made software development platform for 250 watt power supply with input voltage 390 V DC and 12 V/21 A output.

Block Diagram

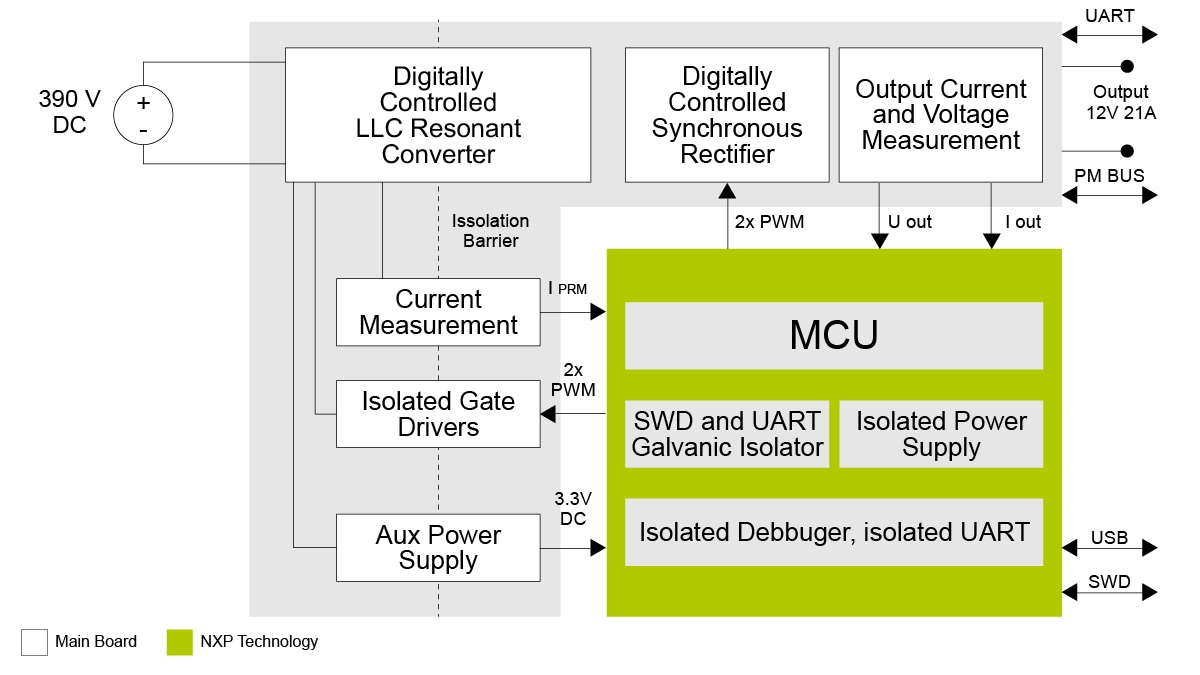

Digital LLC Converter Block Diagram

Digital LLC Converter - Block Diagram

Supported Devices

Processors and Microcontrollers

KV Series Arm Cortex-M4/M0+/M7

  • KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm® Cortex®-M4

Features

Security

  • Input overcurrent protection
  • Output overcurrent protection

Interface

  • Serial interface for communication

Sensor

  • Analog sensing (resonant tank current, output voltage, output current)

Other

  • Synchronous rectifier
  • GaN power FETs

Buy Options

HVP-KV46F150M-Image

Click to expand

  • HVP-KV46F150M
    Active

  • High-Voltage Development Platform Controller Card, Kinetis V MCU, KV46, 150 MHz.

  • Kit contains:

    • TWR-56F8200 MCU module
    • USB cable
    • Quick Start Guide
    • Multilink universal development interface
  • $57.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Files

Quick reference to our design files types.
Filters

1 design file

Software

Quick reference to our software types.

Filters

5 software files

Note: For better experience, software downloads are recommended on desktop.
