M2 NAND FLASH Daughter Card

M2-NAND-FLASH Active

Roll over image to zoom in

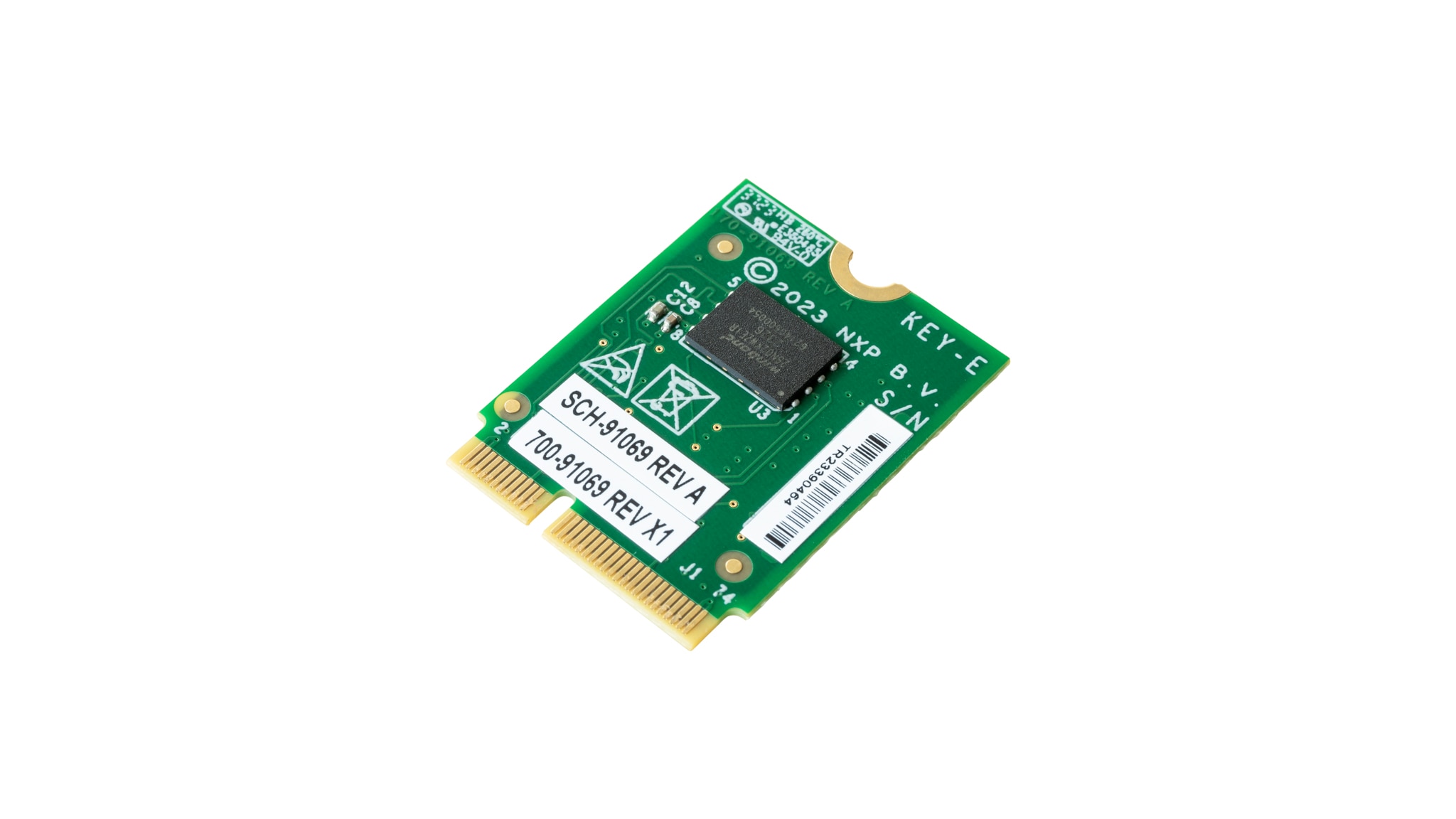

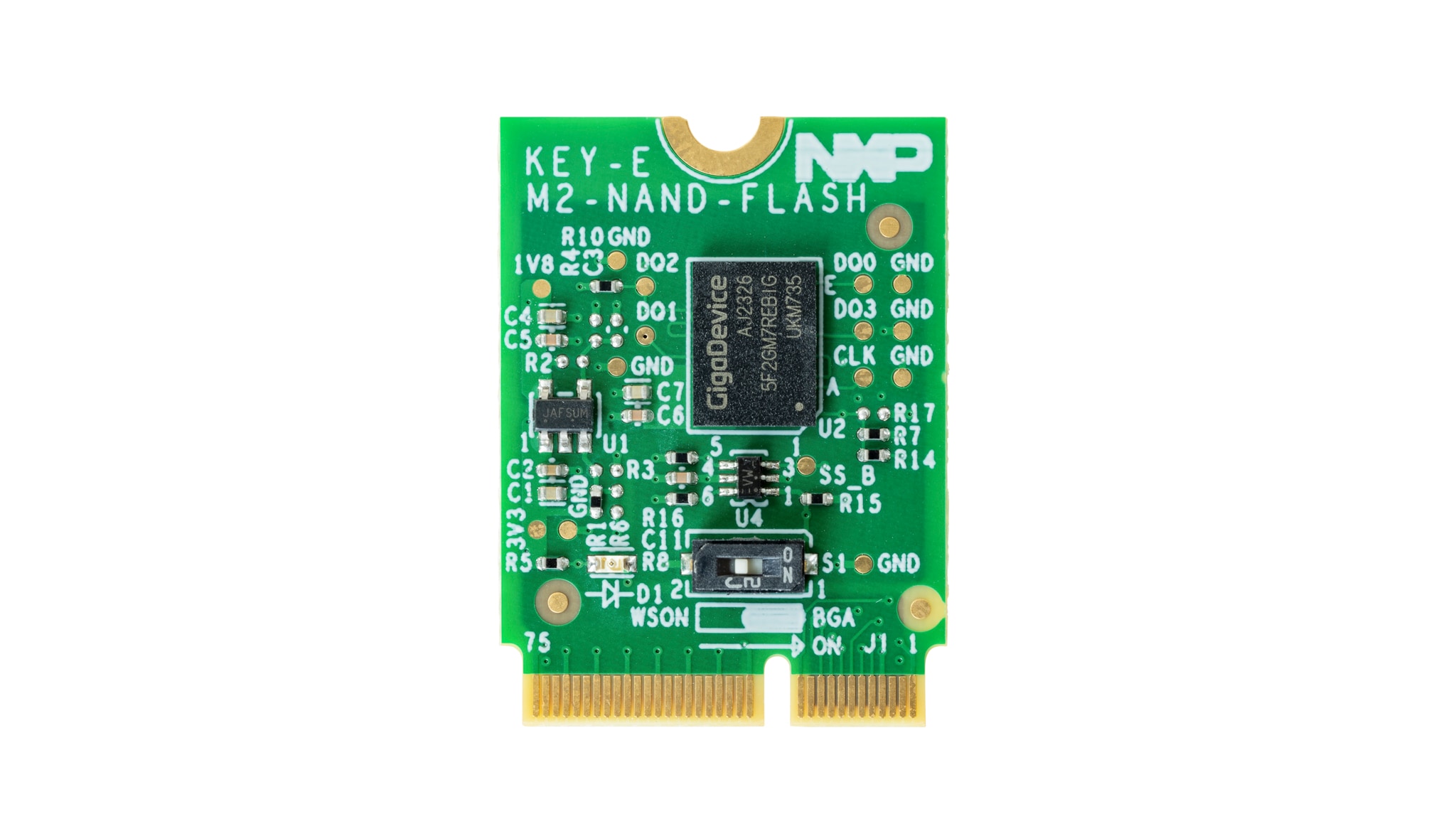

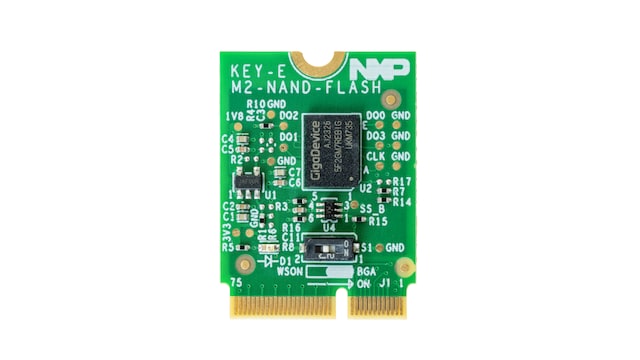

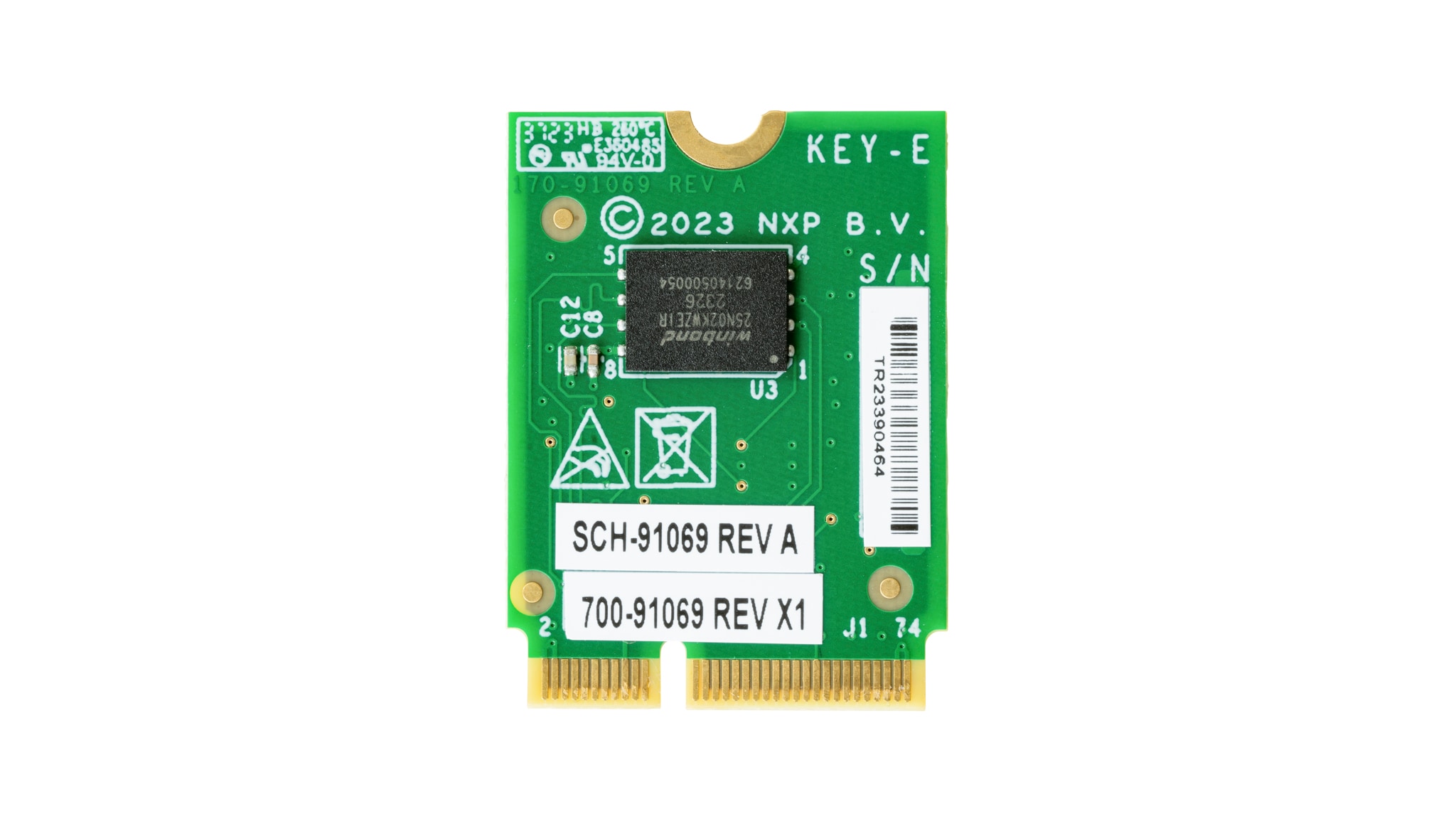

The M2-NAND-FLASH is an M.2 daughter card with two flash Winbond 256MB W25N02KWZEIR (WSON8x6) + GigaDevice 256MB GD5F2GM7REBIG (BGA24). Switches (S1) on the board allow the user to freely switch between the two flashes, this can also be switched using software by changing the level of the GPIO. This daughter card connects to the EVK board through the M.2 KEY-E connector.

Block Diagram

M2-NAND-FLASH

M2-NAND-FLASH
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX 9 Processors

  • i.MX93: i.MX 93 Applications Processor Family – Arm® Cortex®-A55, ML Acceleration, Power Efficient MPU
  • i.MX91: Secure, Energy-Efficient Linux Capabilities for Smart Home and Industrial Automation

Features

  • Pin definition compatible with M.2 KEY-E
  • Winbond 256MB W25N02KWZEIR (WSON8x6)
  • GigaDevice 256MB GD5F2GM7REBIG (BGA24)
