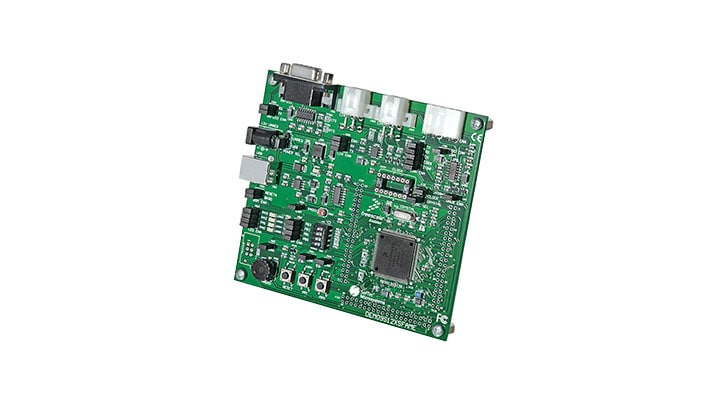

9S12XS128 Demonstration Board
Demo Board is a full-featured, ready-to-use evaluation system for the MC9S12XS128 MCU. DEMOAX9S12XS128 Demo Board takes advantage of CodeWarrior® (which groups an editor, assembler, c compiler and debugger) and Our USB-BDM interface, allowing the download and debug of the user application in the MCU's flash memory.
Write code, download, evaluate. Yes, that simple.
Kit Contains:
- DEMOAX9S12XS128 Demo Board
- USB cable
- Quick Start Guide sheet
- Printed user's manual
Product Details
Supported Devices
Processors and Microcontrollers
16-Bit S12 and S12X MCUs
- S12XS: S12XS Automotive and Industrial Microcontrollers (MCUs)
Features
Microcontroller
- MC33905S
Connectivity
- COM select Option Header to configure LIN and CAN communications
Sensors
- Light Sensor, photo-transistor, with amplifier and option jumper
Support
- Serial Com supported through OSBDM
- BDM_PORT header for external BDM cable support
Size
- 1x4, 4.2 mm, Molex CAN Cable Connector
- 2x2, 4.2 mm, Molex LIN Cable Connector
User Component
- RESET Push Button
- User Peripherals
- 4 User Push-Button Switches, active low
- 8 User LED Indicators, active low, with option jumpers
- 8-pos DIP switch, active low, with option jumpers
- Connectors
- USB type-B connector for OSBDM
- BDM Header to allow use of external BDM
- 2.0 mm center-positive barrel connector supports power input
- Integrated Open Source BDM (OSBDM)
Buy Options
-
LFSMPBS12XSDM
-
PB-FREE 9S12XS 52-PIN QFP PROG ADPTR.
-
LFSMPBS12XSE2M
-
S12XS FAMILY 64 PIN 0.5MM PROG. ADAPTER.
-
LFSMPBS12XSFM
-
PB-FREE 9S12XS 80-PIN QFP PROG ADPTR.
-
LFSMPBS12XSIM
-
MC9S12XS FAMILY 0.65MM 112PIN PROG ADPTR.
Documentation
Quick reference to our documentation types.
2 documents
-
User Guide
DEMOAX9S12 - Quick Start GuideGetting Started
-
User Guide
DEMOAX9S12 - User GuideGetting Started
