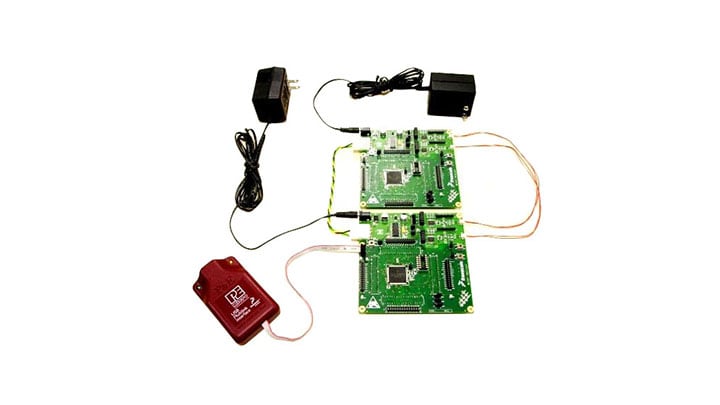

S12XF 2-Node Starter Kit

Roll over image to zoom in

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

Features

Microcontroller

  • S12XF512MLM MCU
  • NXP MC33742 system basic chip for hi-speed CAN communication
  • Selectable 16 MHz oscillator module (socketed) or a 4 MHz crystal

Connectivity

  • BDM connector for external in-circuit debugging
  • Header connectors with all microcontroller signals
  • One CAN connector with transceiver integrated in the MC33742
  • Two FlexRay connectors with two transceivers

Components

  • NXP TJA1080 FlexRay transceiver
  • Eight User LEDs
  • Two push-buttons
  • Reset push button for the MCU and/or the SBC
  • NOTE: The EVB9S12XF512E evaluation board comes assembled with the PC9S12XF512MLM (112-pin LQFP). This board is designed to support also the PC9S12XF512MLH (64-pin LQFP). To order this part, contact your NXP sales representative. Refer to for guidelines to enable the support for the 64-pin LQFP device.

Buy Options

S12XFSTARTERKITE-Image

Click to expand

  • S12XFSTARTERKITE
    Active

  • S12XFSTARTERKITE STARTER KIT.

  • For a quantity of 1
N true 0 TSPS12XFSTARTERKITEen 4 Fact Sheet Fact Sheet t523 1 Quick Reference Guide Quick Reference Guide t525 1 Supporting Information Supporting Information t531 1 User Guide User Guide t792 1 en_US 2 1 0 English This kit contains everything you need to get started as well as a description of the pin function of test points, jumpers and connectors. This document will also guide you through the steps necessary to download your own program using downloading tool and connection 1175644390148716596979 TSP 1.2 MB None None documents Y None 1175644390148716596979 /docs/en/user-guide/EVB9S12XF512E_UM.pdf 1201001 /docs/en/user-guide/EVB9S12XF512E_UM.pdf EVB9S12XF512E_UM N 2007-04-03 EVB9S12XF512E User Manual /docs/en/user-guide/EVB9S12XF512E_UM.pdf /docs/en/user-guide/EVB9S12XF512E_UM.pdf User Guide N Y 132339537837198660 2023-06-19 pdf en Jun 4, 2007 User Guide t792 User Guide User Guide N N EVB9S12XF512E User Manual 2 1 English This kit will give you the opportunity to gain experience on the M9S12XF family. By following this guide, you should have a FlexRay network up and running in approximately 1 hour 1175644414864708314379 TSP 120.6 KB None None documents None 1175644414864708314379 /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf 120553 /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf S12XFSTARTERKITE_QS N 2007-04-03 S12XFSTARTERKITE Quick Start Guide /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf Quick Reference Guide N Y 803735842453594974 2022-12-07 pdf en Sep 13, 2007 Quick Reference Guide t525 Quick Reference Guide Quick Reference Guide N N S12XFSTARTERKITE Quick Start Guide false en_US 0 false en Fact Sheet Fact Sheet 1 3 0 English 1176155255942701552709 TSP 151.8 KB None None documents None 1176155255942701552709 /docs/en/fact-sheet/S12XFFS.pdf 151758 /docs/en/fact-sheet/S12XFFS.pdf S12XFFS documents N 2007-04-09 S12XF Fact Sheet /docs/en/fact-sheet/S12XFFS.pdf /docs/en/fact-sheet/S12XFFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Feb 25, 2008 736675474163315314 Fact Sheet N N S12XF Fact Sheet Supporting Information Supporting Information 1 4 0 English Complete list of materials for the EVB9S12XF512E 1180550551215721552140 TSP 82.9 KB None None documents None 1180550551215721552140 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls 82944 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls EVB9S12XF512E_BOM documents N 2007-05-30 Bill of materials of the EVB9S12XF512E /docs/en/supporting-information/EVB9S12XF512E_BOM.xls /docs/en/supporting-information/EVB9S12XF512E_BOM.xls Supporting Information N 371282830530968666 2022-12-07 xls en May 23, 2007 371282830530968666 Supporting Information N N Bill of materials of the EVB9S12XF512E false 0 S12XFSTARTERKITE downloads en true 0 Y TSP Fact Sheet 1 /docs/en/fact-sheet/S12XFFS.pdf 2007-04-09 1176155255942701552709 TSP 3 Feb 25, 2008 Fact Sheet None /docs/en/fact-sheet/S12XFFS.pdf English documents 151758 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/S12XFFS.pdf S12XF Fact Sheet /docs/en/fact-sheet/S12XFFS.pdf documents 736675474163315314 Fact Sheet N en None N pdf 0 N S12XF Fact Sheet 151.8 KB S12XFFS N 1176155255942701552709 Quick Reference Guide 1 /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf 2007-04-03 1175644414864708314379 TSP 2 Sep 13, 2007 Quick Reference Guide Quick Reference Guide This kit will give you the opportunity to gain experience on the M9S12XF family. By following this guide, you should have a FlexRay network up and running in approximately 1 hour None /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf English 120553 None Quick Reference Guide 2022-12-07 /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf S12XFSTARTERKITE Quick Start Guide /docs/en/quick-reference-guide/S12XFSTARTERKITE_QS.pdf documents 803735842453594974 Quick Reference Guide N Y en None N t525 pdf 1 N S12XFSTARTERKITE Quick Start Guide 120.6 KB S12XFSTARTERKITE_QS N 1175644414864708314379 Supporting Information 1 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls 2007-05-30 1180550551215721552140 TSP 4 May 23, 2007 Supporting Information Complete list of materials for the EVB9S12XF512E None /docs/en/supporting-information/EVB9S12XF512E_BOM.xls English documents 82944 None 371282830530968666 2022-12-07 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls Bill of materials of the EVB9S12XF512E /docs/en/supporting-information/EVB9S12XF512E_BOM.xls documents 371282830530968666 Supporting Information N en None N xls 0 N Bill of materials of the EVB9S12XF512E 82.9 KB EVB9S12XF512E_BOM N 1180550551215721552140 User Guide 1 /docs/en/user-guide/EVB9S12XF512E_UM.pdf 2007-04-03 1175644390148716596979 TSP 1 Jun 4, 2007 User Guide User Guide This kit contains everything you need to get started as well as a description of the pin function of test points, jumpers and connectors. This document will also guide you through the steps necessary to download your own program using downloading tool and connection Y None /docs/en/user-guide/EVB9S12XF512E_UM.pdf English 1201001 None User Guide 2023-06-19 /docs/en/user-guide/EVB9S12XF512E_UM.pdf EVB9S12XF512E User Manual /docs/en/user-guide/EVB9S12XF512E_UM.pdf documents 132339537837198660 User Guide N Y en None N t792 pdf 0 N EVB9S12XF512E User Manual 1.2 MB EVB9S12XF512E_UM N 1175644390148716596979 true Y Tools

Documentation

Quick reference to our documentation types.

4 documents

Compact List

Design Files

Quick reference to our design files types.

1 design file

Software

Quick reference to our software types.

5 software files

Note: For better experience, software downloads are recommended on desktop.
