9S12XHY256 Demonstration Board

DEMO9S12XHY256
Active

Roll over image to zoom in

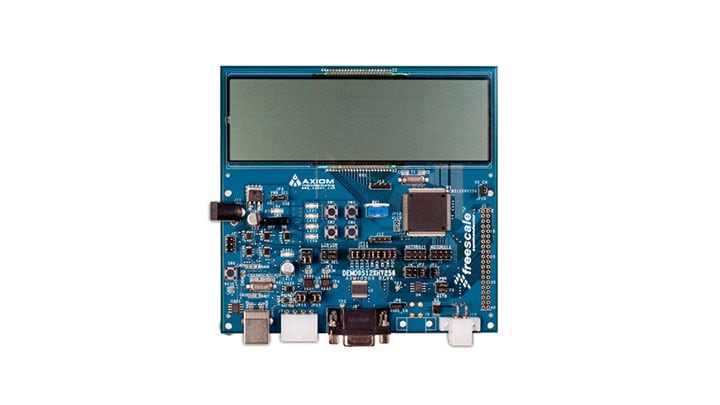

The DEMO9S12XHY256 is a demonstration board for the NXP® MC9S12XHY256 MCU.

Application development is quick and easy with the integrated USB-BDM, sample software tools, and examples. An optional BDM_PORT port is also provided to allow use of a BDM_PORT cable. A 40-pin connector provides access to most IO signals on the target MCU.

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12XHY: S12XHY Scalable Cluster Microcontrollers (MCUs) with CAN

Features

Connectivity

  • Integrated USB-BDM. BDM_PORT header for external BDM cable support
  • MCU_PORT pin header for access to MCU IO signals
  • 40-pin MCU I/O Pin Header
  • Barrel Connector
  • USB/DB9/CAN cable/LIN cable Connector

Power Management

  • On-board +5 V regulator
  • Optional Power from USB-BDM or MCU_PORT connector
  • Power Input Selection Jumpers, select from USB-BDM, onboard regulator, Connector J1. Optional Power output through Connector J1
  • User Option Jumpers to disconnect Peripherals

Display

  • On-Board 4x40 Custom LCD Glass

Component

  • 2 ea. High-Speed CAN Physical Layer Transceivers
  • Enhanced LIN Physical Layer Transceiver
  • RS-232 Serial Data Physical Layer Transceiver
  • 5 Push Switches, 6 LED Indicators, 5K ohm POT w /LP Filter

Buy Options

DEMO9S12XHY256-Image

Click to expand

  • DEMO9S12XHY256
    Active

  • DEMO BOARD FOR 9S12XHY256 FAMILY.

    • DEMO9S12XHY256 Demo Board
    • DEMO9S12XHY256 user guide
    • "Quick Start Guide" sheet
    • a USB cable
    • a RS232 SERIAL cable
    • CodeWarriorTM Development Studio Special Edition CD-ROM
    • AXIOM 68HC12 development System support CD-ROM
    • Warranty card
    • Technical Information Center sheet
    • Getting Starter DVD
  • For a quantity of 1
