Overview

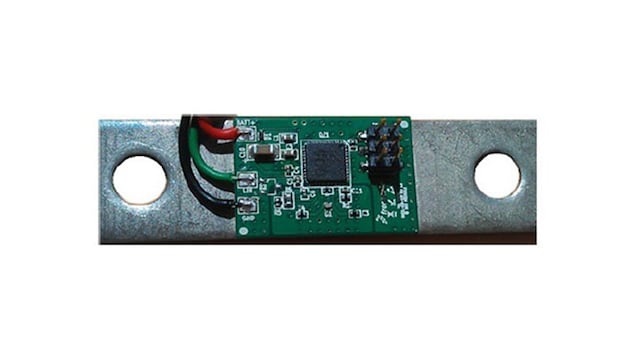

Reference design - MM9Z1_638, 12V Lead-acid Battery,LIN

Specifications

RD9Z1-638-12V CAN Block Diagram

Technical and Functional Specifications

Magni V S12Z

  • Embedded S12Z microcontroller with: – 128 KB on-chip flash with ECC – 4.0 KB on-chip EEPROM with ECC – 8.0 KB on-chip SRAM with ECC

Power Management

  • Embedded power management
  • Reverse polarity protection with a Schottky diode

Sensors

  • Precision battery voltage sensing
  • Precision shunt-based battery current sensing
  • On-board NTC for battery temperature sensing
  • Internal (chip) temperature sensing)

Interfaces

  • CAN Interface
  • BDM interface (for MCU programming and debugging)

Buy

  • RD9Z1-638-12V-C   Active

  • Reference design - MM9Z1_638, Battery sensor LIN, CAN, 96-128K Flash, Lead Acid Batteries
    • RD9Z1-638-12V-C
    • 1 @ US
    • $205.00
    • Buy Direct
    • Distributor
