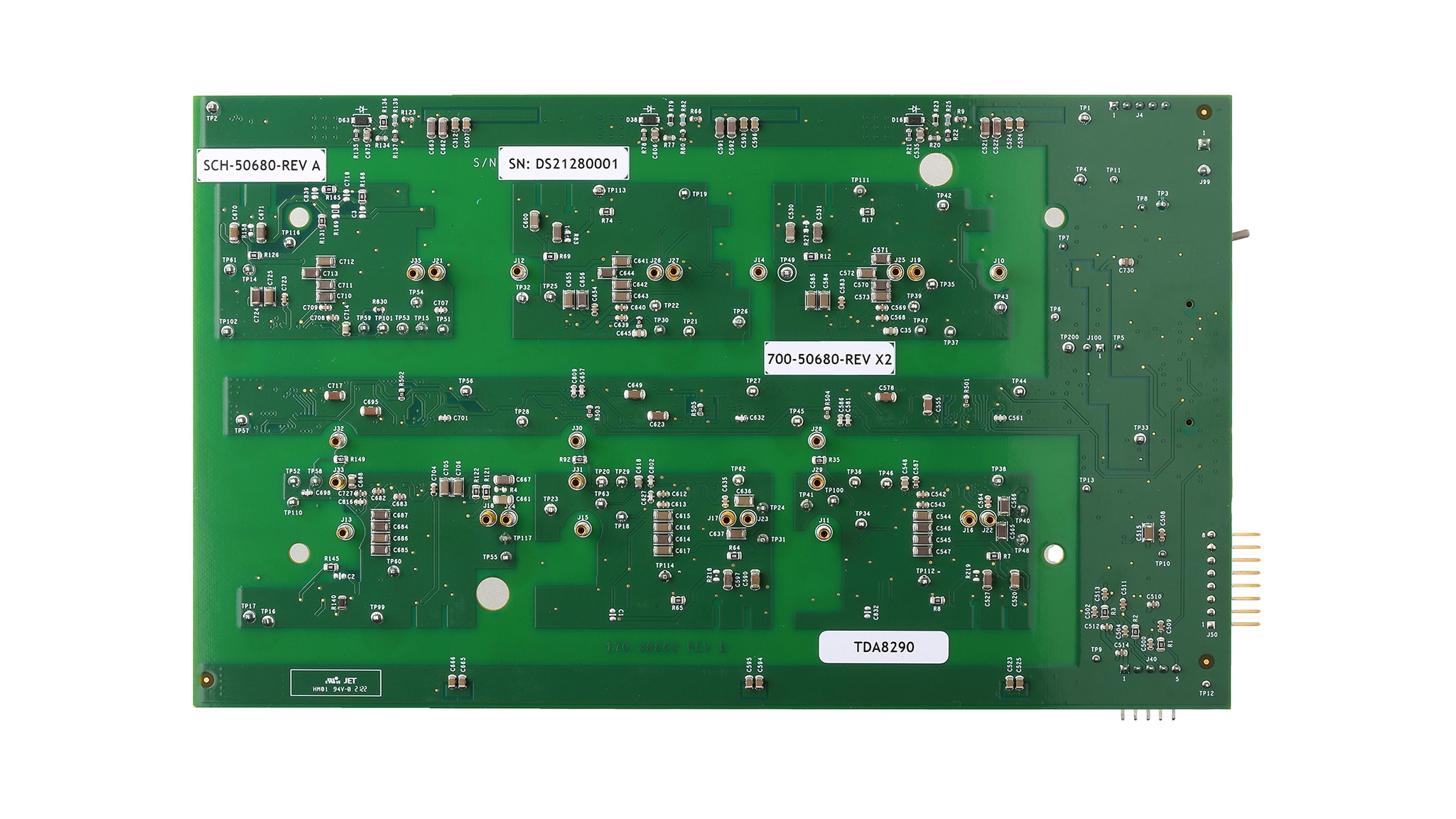

3 Phase Reference Design for HP Drive Featuring GD3160

RDGD3160I3PH5EVB

Roll over image to zoom in

Product Details

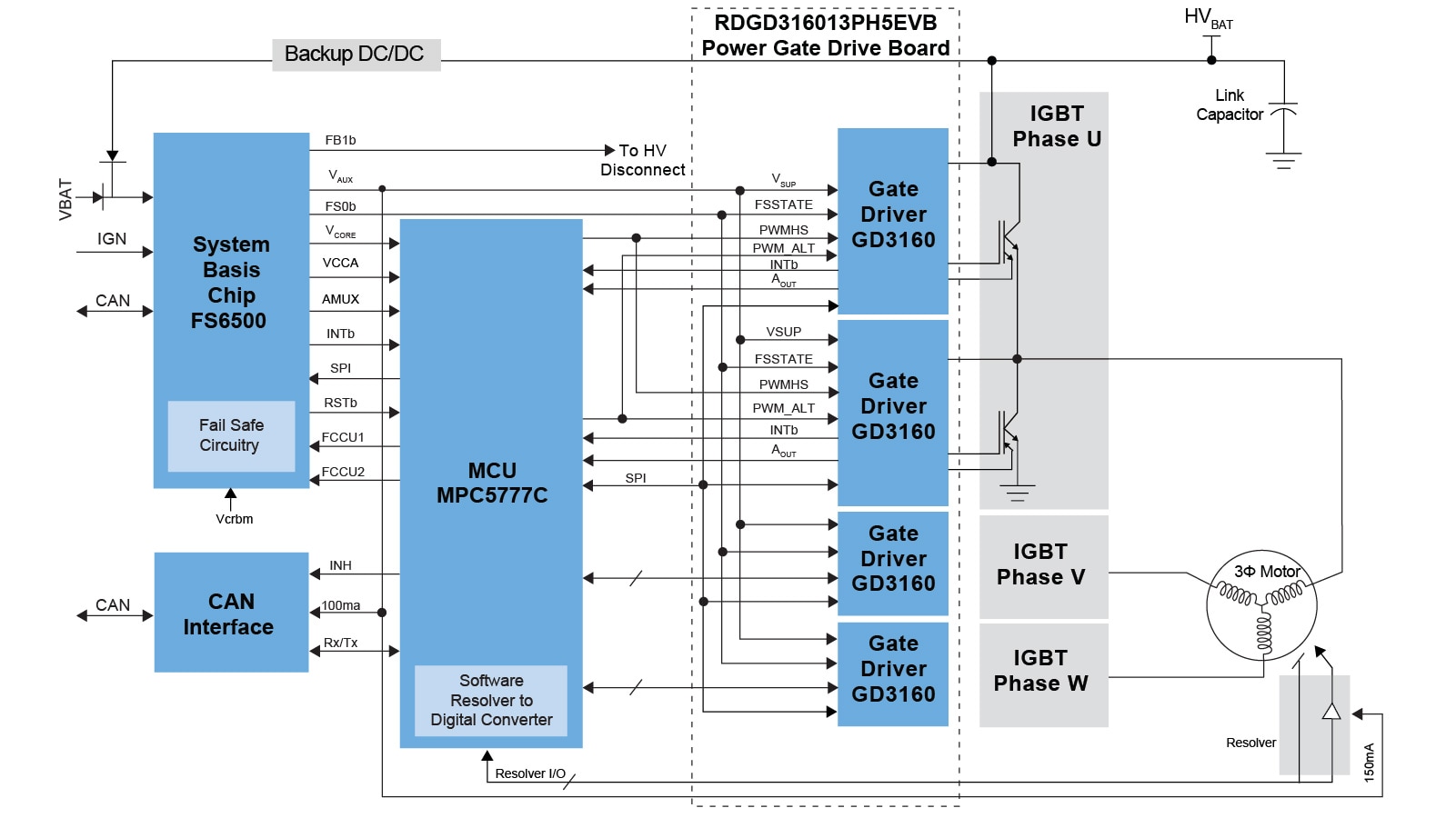

Block Diagram

GD3160 Block Diagram

GD3160 Block Diagram

Supported Devices

Power Management

Powertrain and Engine Control

Safety SBCs

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

Interfaces

3.3 V / 5 V IO CAN Transceivers

Features

Gate Driver

  • Integrated Galvanic signal isolation (up to 8 kV)
  • High gate current integrated: 15 A source/sink capable
  • SPI interface for safety monitoring, configuration and diagnostic reporting
  • Fail-safe state management from LV and HV domain for user-selectable safe state
  • Temperature sense compatible with diode-based temperature sensors, NTC and PTC thermistors
  • Configurable desaturation and current sense optimized for protecting SiC and IGBTs
  • Integrated soft shutdown, two-level turn-off, optimized for unique gate drive requirements of SiC
  • Integrated ADC for monitoring parameters from HV domain
  • CMTI > 100 V/ns
  • Available in 5.0 or 3.3 V logic interface variants
  • Certified compliant with ISO 26262, supporting ASIL D level functional safety

GD3160

  • Advanced single channel gate driver for IGBT and SiC MOSFETs. Integrated galvanic isolation and low on-resistance drive transistors provide high charging and discharging current, low dynamic saturation voltage and rail-to-rail gate voltage control

Buy Options

RDGD3160I3PH5EVB-Image

Click to expand

  • RDGD3160I3PH5EVB

  • 3 Phase Reference Design for HP Drive Featuring GD3160.

  • $978.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
