NXP EdgeReady MCU-based Solution for Face Recognition

Overview

NXP EdgeReady MCU-based machine vision solution leverages the i.MX RT106F crossover MCU enabling developers to quickly and easily add face recognition capabilities to their products. This ultra-small form-factor, production ready hardware design comes with fully integrated software running on FreeRTOS, for quick out-of-the-box implementation. This turnkey solution minimizes time to market, risk, and development effort, enabling OEMs to easily add machine vision to their smart home and smart appliance products without the need for an expensive Linux-based MPU implementation, and without Wi-Fi and cloud connectivity, addressing the privacy concerns of many consumers.

MCU-Based Face Recognition - Fact Sheet

MoreLess

Buy

Tools and Software

Design Files / BOM

SLN-VIZN-IOT Overview

MCU-Based Solution for Face Recognition

SLN-VIZN-IOT

Low Latency

<1 second fast
response times

Turnkey Solution

Easy integration
into any application

Low BOM Cost

Reduced by over 50% compared to MPU designs

Compact Design

Ultra-small form factor
boards - 50 mm x 40 mm

Full Software Capabilities

Image cropping, face detection, face recognition

Specifications

i.MX RT106F Face Recognition Hardware

MCU

i.MX RT1060 Crossover MCU with Arm^® Cortex^®-M7 core

i.MX RT106F Face Recognition Software Block Diagram

Technical and Functional Specifications

Processor
General
Vision
Power
Memory
Security

MCU

i.MX RT1060 Crossover MCU with Arm^® Cortex^®-M7 core, 3020 CoreMark/1284 DMIPS @ 600 MHz, 32 kB I-cache, 32 kB D-cache, FPU

System Control

Secure JTAG, PLL OSC, eDMA, 4x Watch Dog, 6x GP Timer, 4x Quadrature ENC, 4x QuadTimer, 4x FlexPWM, IOMUX

Versatility

Small form factor, runs on Free RTOS, optional display and keypad, supports RGB and IR

ADC/DAC Conversion

2x ADC (20-ch), 2 x ACMP

Tools

Supported by MCUXPresso SDK, IDE and Config Tools

Vision

Face detection
Face tracking
Face alignment
Face recognition
Confidence measure
Face recognition quantified results

Single Power Supply

1x 5 V USB Type-C

Low-dropout
Regulation

DC-to-DC & LDO

Temperature Control

1x interface Temp Monitor

External

32 MB Hyper-Flash
32 MB SDRAM

Internal

1 MB on-chip SRAM

Hardware

HAB, TRNG, Encrypted XIP out of Flash

Software

Ciphers & RNG, Secure RTC, Fuse, HAB

Buy

SLN-VIZN-IOT ^{Qualification}
NXP EdgeReady MCU-based Solution for Face Recognition
Turnkey embedded i.MX RT106F for Face Recognition

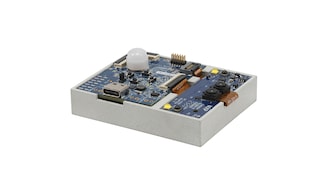

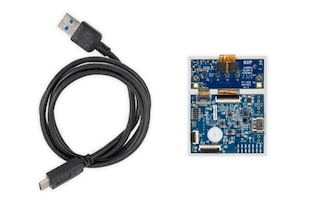

Kit contains:
- i.MX RT Face Recognition Solution
- USB Type-A to USB Type-C Cable

1 @ US
$175.59

Buy Direct

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Get Started

Get Started with the SLN-VIZN-IOT

SLN-VIZN-IOT - Getting Started

The following pages will help guide you through the process of learning about your SLN-VIZN-IOT solution kit.

Getting Started with the SLN-VIZN-IOT
- GS-SLN-VIZN-IOT
MCU VIZN Solution Developer’s Guide^{(REV
1.0
)}
- 2.2 MB
- SLN-VIZN-IOT-DG
- [ English ]
MCU VIZN Solution User’s Guide^{(REV
1.1
)}
- 1.7 MB
- SLN-VIZN-IOT-UG
- [ English ]

Application Notes

Application Note and Technical Note

MCU VIZN IoT Solution Technical Note^{(REV
1.0
)}
- 1.3 MB
- SLN-VIZN-IOT-POWER-CONSUMPTION
- [ English ]

Design Files & BOM
SLN-VIZN-IOT Design Files^{(REV
1.0
)}
- 20.5 MB
- SLN-VIZN-IOT-DESIGN-FILES
Tools & Software
SLN-VIZN-IOT Program, Test, and Manufacturing Tools^{(REV
1.0
)}
- 11.1 MB
- IVALDI_SLN_VIZN_IOT

Get Help

Recommended Communities

Training and Events

Secure Access, Authorization and User Customization Using MCU-based Face Recognition

Type: On-Demand
Duration: 31:17

Implement secure and private face recognition capability to a wide range of home and industry systems with NXP's i.MX RT106F.
